  • Beyma 5P200Fe P200 Series 5" Midbass Woofer 8 Ohm

NEW Beyma 5P200Fe P200 Series 5" Midbass Woofer 8 Ohm

Beyma
Part #253-031

NEW Beyma 5P200Fe P200 Series 5" Midbass Woofer 8 Ohm

Beyma
Part #253-031
Model: 5P200Fe

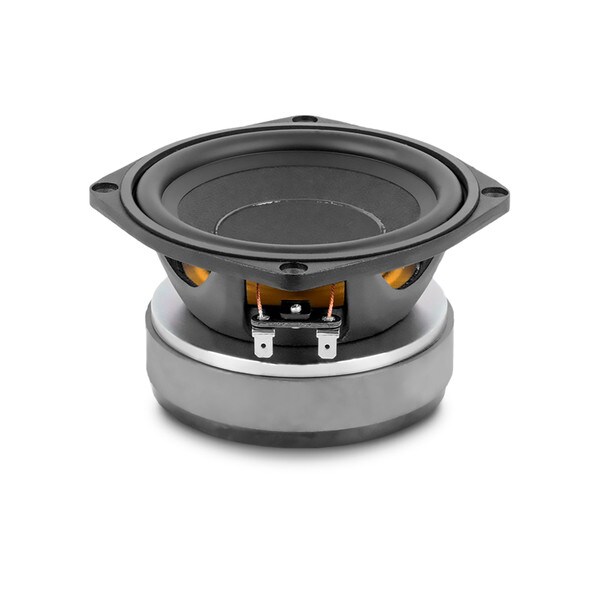

The Beyma 5P200Fe is a 5" low and mid-frequency transducer designed for professional audio applications requiring high power handling and efficiency. Its robust construction and advanced design features make it suitable for a variety of sound reinforcement systems.

Key Features
  • FEA-optimized ferrite magnetic circuit for improved performance​
  • Weatherproof paper cone with Santoprene™ surround for increased durability​
  • Shorting cap extends frequency response and reduces harmonic distortion​
  • ±5.7 mm Xmax allows for extended linear excursion​
  • 16 mm peak-to-peak excursion before damage ensures mechanical reliability​
NEW $85.50
MSRP: $114.00
Save $28.50 (25%)
Bulk Pricing
Order in the next 0 hr 30 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 5P200Fe P200 Series 5" Midbass Woofer 8 Ohm

5P200Fe P200 Series 5" Midbass Woofer 8 Ohm

The 5P200Fe's 150 W AES power handling and 92 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 1.5" copper voice coil enhances thermal stability, contributing to consistent performance over time. The FEA-optimized ferrite magnetic circuit improves overall efficiency and sound quality. The weatherproof paper cone, combined with a Santoprene surround, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. The inclusion of a shorting cap extends the frequency response and reduces harmonic distortion, resulting in cleaner sound reproduction. The driver features an Xmax of ±5.7 mm, allowing for extended linear cone movement and deeper bass response without distortion. With a peak-to-peak excursion before damage of 16 mm, the 5P200Fe can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. Overall, this transducer offers versatility and high performance for professional audio setups.​

Product Details

BrandBeyma
Model5P200Fe
Part Number253-031
UPC8435469041363
Unit of MeasureEach
Weight5.1

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter5.6
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8Ω
Frequency Response70 to 10,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)72Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)7.5
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)0.2ft³
Mechanical Compliance of Suspension (Cms)451mm/N
BL Product (BL)8.5T·m
Diaphragm Mass Inc. Airload (Mms)10g
Maximum Linear Excursion (Xmax)5.7mm
Surface Area of Cone (Sd)0.0095cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialSantoprene®
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.1"
Baffle Cutout Diameter4.7"
Depth3.1"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0338ft³
Sealed F3183.2Hz
Vented Volume0.0842ft³
Vented F3106.7Hz
