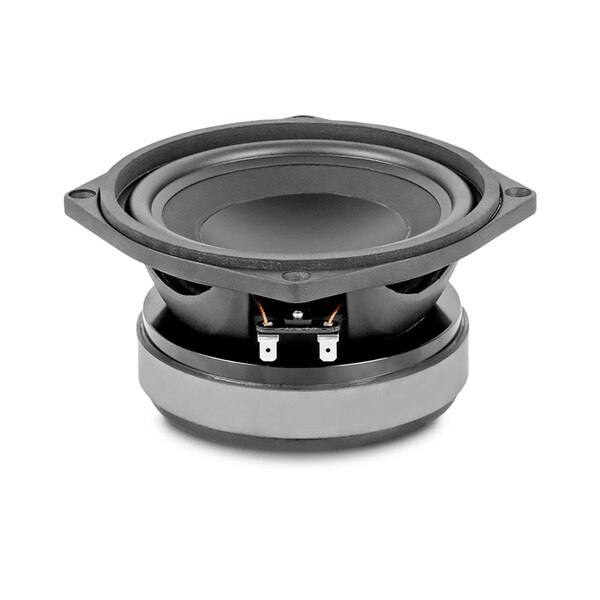

  • Beyma 6P200Fe P200 Series 6.5" Midbass Woofer 8 Ohm

NEW Beyma 6P200Fe P200 Series 6.5" Midbass Woofer 8 Ohm

BeymaPart # 253-033
Model: 6P200Fe

The Beyma 6P200Fe is a 6.5" low-frequency transducer engineered for professional audio applications that require high power handling and efficiency. Its robust construction and advanced design features make it suitable for compact sound reinforcement systems.

Key Features

  • Copper shorting cap reduces harmonic distortion​
  • ±5 mm Xmax allows for extended linear excursion​
  • 20 mm peak-to-peak excursion before damage ensures mechanical reliability​
  • Weatherproof paper cone with rubber surround for increased durability​
  • CONEX spider enhances mechanical stability​
  • 2" copper voice coil enhances thermal stability​
  • Designed for small, compact enclosures​
NEW $112.50
+ FREE SHIPPING
MSRP: $150.00
Save $37.50 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Beyma 6P200Fe P200 Series 6.5" Midbass Woofer 8 Ohm is back in stock or available for preorder.

Order in the next 5 hr 18 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 6P200Fe P200 Series 6.5" Midbass Woofer 8 Ohm

6P200Fe P200 Series 6.5" Midbass Woofer 8 Ohm

The 6P200Fe's 200 W AES power handling and 93 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 2" copper voice coil enhances thermal stability, contributing to consistent performance over time. The inclusion of a copper shorting cap reduces harmonic distortion, resulting in cleaner sound reproduction. The driver features an Xmax of ±5 mm, allowing for extended linear cone movement and deeper bass response without distortion. With a peak-to-peak excursion before damage of 20 mm, the 6P200Fe can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. The weatherproof paper cone, combined with a rubber surround, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. The CONEX spider further enhances mechanical stability, maintaining consistent performance. Designed for small, compact enclosures, this transducer offers versatility and high performance for professional audio setups.​

Product Details

BrandBeyma
Model6P200Fe
Part Number253-033
UPC8435469041714
Unit of MeasureEach
Weight7.8

Product Specifications

Nominal Diameter7"
Bolt Circle Diameter6.8
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8Ω
Frequency Response60 to 9,000Hz
Sensitivity93dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)58Hz
DC Resistance (Re)4.9Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)4.6
Electromagnetic Q (Qes)0.27
Total Q (Qts)0.26
Compliance Equivalent Volume (Vas)0.39ft³
Mechanical Compliance of Suspension (Cms)429mm/N
BL Product (BL)10.5T·m
Diaphragm Mass Inc. Airload (Mms)0.017g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)0.0135cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper

Mounting Information

Overall Outside Diameter7.4"
Baffle Cutout Diameter5.7"
Depth3.4"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0356ft³
Sealed F3193.4Hz
Vented Volume0.0798ft³
Vented F3120Hz
