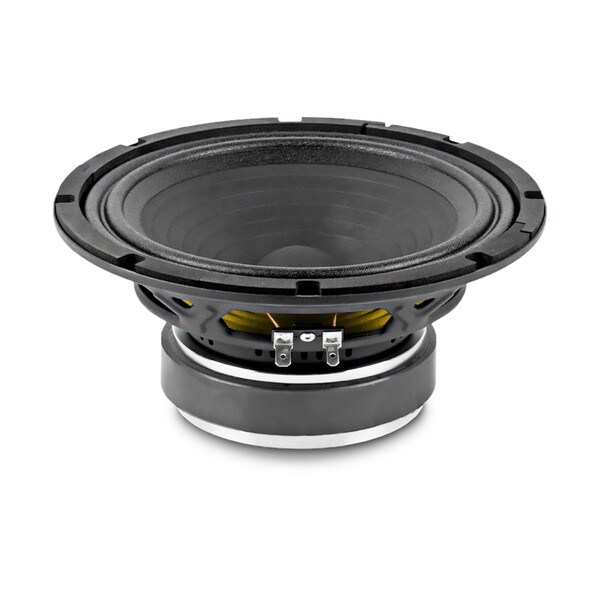

NEW Beyma 8CMV2 8" Woofer 8 Ohm

Name: Beyma 8CMV2 8" Woofer 8 Ohm
Brand: Beyma
SKU: 253-027
Price: 66.25 USD
Availability: OutOfStock

Beyma

Part #253-027

NEW Beyma 8CMV2 8" Woofer 8 Ohm

Beyma

Part #253-027

Model: 8CMV2

6.5 in.8 in.10 in.

The Beyma 8CMV2 is an 8" low and mid-frequency transducer engineered for professional audio applications requiring high power handling and linear response. Its robust construction and treated components make it suitable for bass and midbass applications in compact vented cabinets.

Key Features

1.5" copper-clad aluminum voice coil on fiberglass former improves thermal durability
Treated paper cone and double roll cloth surround provide controlled response
Frequency range of 80–8,000 Hz covers bass through upper midrange
Optimized ferrite magnet system mounted on a pressed steel frame
Designed for bass and midbass applications in compact vented cabinets

Frequently Bought Together

This Product: Beyma 8CMV2 8" Woofer 8 Ohm	$66.25
Beyma CP-21/F Compression Tweeter 8 Ohm	$114.00
Parts Express #8 x 1" Deep Thread Pan Head Screws Black 100 Pcs.	$7.69
Parts Express 8" Waffle Style Black Steel Speaker Grille with Rubber Edge	$3.29

Total Price: $191.23

This Product:Beyma 8CMV2 8" Woofer 8 Ohm$66.25

Beyma CP-21/F Compression Tweeter 8 Ohm$114.00

Parts Express #8 x 1" Deep Thread Pan Head Screws Black 100 Pcs.$7.69

Parts Express 8" Waffle Style Black Steel Speaker Grille with Rubber Edge$3.29

4 ItemsTotal Price: $191.23

Overview

Beyma 8CMV2 8" Woofer 8 Ohm

8CMV2 8" Woofer 8 Ohm

The 8CMV2 is a versatile choice for applications requiring clean midbass reproduction in a space-efficient format. Its 250 W AES power handling and 94 dB sensitivity allow it to deliver articulate output with strong projection, even when used in compact vented boxes. A copper-clad aluminum voice coil wound on a fiberglass former ensures durability under continuous load, while the double roll cloth surround adds excursion control without sacrificing tonal balance. The cone is made of treated paper, offering a good mix of rigidity and damping for smooth, natural response across the stated 80–8,000 Hz range. Designed to perform in small enclosures—specifically around 20 liters tuned to 74 Hz—the 8CMV2 integrates easily into multi-driver systems or as a standalone in compact cabinets.

Solid Line: On Axis
Dotted Line: 45° Off Axis

Product Details
Brand	Beyma
Model	8CMV2
Part Number	253-027
UPC	8435469050983
Unit of Measure	Each
Weight	5.7

Product Specifications
Nominal Diameter	8"
Bolt Circle Diameter	7.7
Power Handling (RMS)	250 Watts
Power Handling (MAX)	500 Watts
Impedance	8Ω
Frequency Response	80 to 8,000Hz
Sensitivity	94dB 2.83V/1m
Voice Coil Diameter	1.5"

Thiele-Small Parameters
Resonant Frequency (Fs)	75Hz
DC Resistance (Re)	5.1Ω
Voice Coil Inductance (Le)	0.6mH
Mechanical Q (Qms)	7.7
Electromagnetic Q (Qes)	0.55
Total Q (Qts)	0.52
Compliance Equivalent Volume (Vas)	0.52ft³
Mechanical Compliance of Suspension (Cms)	213mm/N
BL Product (BL)	9.6T·m
Diaphragm Mass Inc. Airload (Mms)	0.021g
Maximum Linear Excursion (Xmax)	5.7mm
Surface Area of Cone (Sd)	0.022cm²

Materials of Construction
Surround Material	Cloth
Voice Coil Wire Material	Copper
Basket / Frame Material	Steel
Magnet Material	Ferrite

Mounting Information
Overall Outside Diameter	8.3"
Baffle Cutout Diameter	7.1"
Depth	3.6"
# Mounting Holes	8

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	0.271ft³
Sealed F3	124.4Hz
Vented Volume	0.84ft³
Vented F3	59.7Hz
