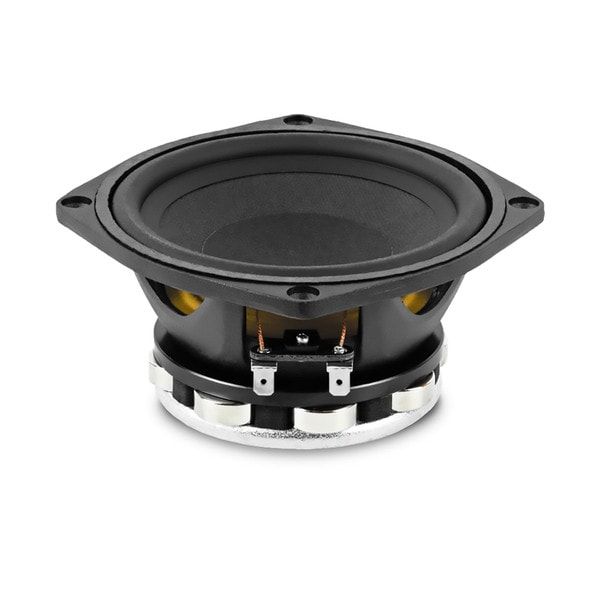

NEW Beyma 5P200Nd P200 Series 5" Midbass Neo Woofer 8 Ohm

BeymaPart # 253-032
Model: 5P200Nd
Read 1 Review or

The Beyma 5P200Nd is a 5" low-frequency transducer designed for professional audio applications requiring high power handling and efficiency. Its lightweight neodymium magnet and advanced design features make it suitable for compact sound reinforcement systems.

Key Features

  • FEA-optimized neodymium magnetic circuit for improved performance​
  • Weatherproof paper cone with Santoprene surround for increased durability​
  • Shorting cap extends frequency response and reduces harmonic distortion​
  • ±5.7 mm Xmax allows for extended linear excursion​
  • 16 mm peak-to-peak excursion before damage ensures mechanical reliability​
  • 1.5" copper voice coil enhances thermal stability​
Similar items that may interest you:
B&C 5NDL38 5" Professional Neodymium Midrange Speaker 8 Ohm
Price: $133.02Part # 294-5901
See all items in Midrange / Midbass Drivers & Full-Range Speakers
NEW $142.50
+ FREE SHIPPING
MSRP: $190.00
Save $47.50 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Beyma 5P200Nd P200 Series 5" Midbass Neo Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 5P200Nd P200 Series 5" Midbass Neo Woofer 8 Ohm

5P200Nd P200 Series 5" Midbass Neo Woofer 8 Ohm

The 5P200Nd's 150 W AES power handling and 92 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 1.5" copper voice coil enhances thermal stability, contributing to consistent performance over time. The FEA-optimized neodymium magnetic circuit improves overall efficiency and sound quality. The weatherproof paper cone, combined with a Santoprene surround, enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. The inclusion of a shorting cap extends the frequency response and reduces harmonic distortion, resulting in cleaner sound reproduction. The driver features an Xmax of ±5.7 mm, allowing for extended linear cone movement and deeper bass response without distortion. With a peak-to-peak excursion before damage of 16 mm, the 5P200Nd can withstand significant mechanical stress, ensuring longevity even under high-demand conditions. Overall, this transducer offers versatility and high performance for professional audio setups.​

Product Details

BrandBeyma
Model5P200Nd
Part Number253-032
UPC8435469041394
Unit of MeasureEach
Weight3.3

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter5.6
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8Ω
Frequency Response80 to 10,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)78Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)10.7
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.3
Compliance Equivalent Volume (Vas)0.201ft³
Mechanical Compliance of Suspension (Cms)355mm/N
BL Product (BL)9.9T·m
Diaphragm Mass Inc. Airload (Mms)11g
Maximum Linear Excursion (Xmax)5.7mm
Surface Area of Cone (Sd)0.0095cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialSantoprene®
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.1"
Baffle Cutout Diameter4.7"
Depth2.8"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0209ft³
Sealed F3220.2Hz
Vented Volume0.0485ft³
Vented F3133.6Hz
