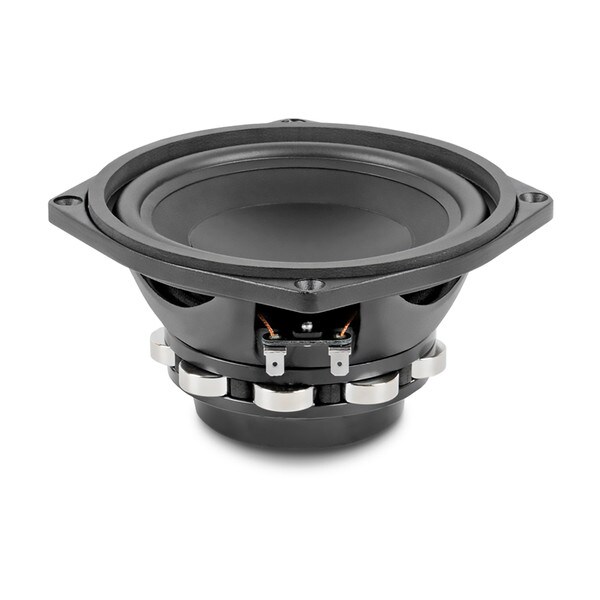

NEW Beyma 6P200Nd P200 Series 6.5" Midbass Neo Woofer 8 Ohm

BeymaPart # 253-035
Model: 6P200Nd

The Beyma 6P200Nd is a 6.5" low-frequency transducer designed for professional audio applications that require high power handling and efficiency. Its lightweight neodymium magnet and advanced design features make it suitable for compact sound reinforcement systems.

Key Features

  • 2" aluminum voice coil enhances thermal stability​
  • Neodymium magnet reduces driver weight
  • Weatherproof treatment on both sides of the cone for increased durability​
  • Forced air convection circuit reduces power compression​
  • ±5.5 mm Xmax allows for extended linear excursion​
  • Optimized for small and compact designs​
NEW $168.00
+ FREE SHIPPING
MSRP: $224.00
Save $56.00 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Beyma 6P200Nd P200 Series 6.5" Midbass Neo Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 6P200Nd P200 Series 6.5" Midbass Neo Woofer 8 Ohm

6P200Nd P200 Series 6.5" Midbass Neo Woofer 8 Ohm

The 6P200Nd's 200 W AES power handling and 92 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 2" aluminum voice coil enhances thermal stability, contributing to consistent performance over time. The weatherproof treatment applied to both sides of the cone enhances durability and resistance to environmental factors, making it suitable for both indoor and outdoor applications. The forced air convection circuit effectively dissipates heat, reducing power compression and maintaining consistent output during prolonged use. The driver features an Xmax of ±5.5 mm, allowing for extended linear cone movement and deeper bass response without distortion. Optimized for small and compact designs, the 6P200Nd offers versatility and high performance for professional audio setups.​

Product Details

BrandBeyma
Model6P200Nd
Part Number253-035
UPC8435469041691
Unit of MeasureEach
Weight4.4

Product Specifications

Nominal Diameter7"
Bolt Circle Diameter6.8
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8Ω
Frequency Response60 to 9,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)56Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)3.7
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.42ft³
Mechanical Compliance of Suspension (Cms)468mm/N
BL Product (BL)10.5T·m
Diaphragm Mass Inc. Airload (Mms)0.017g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)0.0135cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Voice Coil Wire MaterialAluminum

Mounting Information

Overall Outside Diameter7.4"
Baffle Cutout Diameter5.7"
Depth3.5"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0526ft³
Sealed F3161.7Hz
Vented Volume0.121ft³
Vented F398.43Hz
