B&C 5NDL38 5" Professional Neodymium Midrange Speaker 8 Ohm

B&C SpeakersPart # 294-5901
Model: 5NDL38
The B&C Speakers 5NDL38 5" neodymium midrange driver provides a compact, space-saving option for high output, multi-way speaker systems.

Key Features

  • Designed for midrange applications
  • High-energy neodymium motor
  • Copper shorting cap on pole piece extends HF response
  • 1.5" copper voice coil on a fiberglass former
  • 180 watt continuous program power
  • 90.0 dB 1w/1m sensitivity
Similar items that may interest you:
Beyma 5G40Nd/N G40 Series 5" Midbass Speaker 8 Ohm
Price: $129.00Part # 253-001
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $133.02
+ FREE SHIPPING
MSRP: $221.70
Save $88.68 (40%)
Bulk Pricing
Only 3 In Stock
Get Notified When Available

We'll send you an email when B&C 5NDL38 5" Professional Neodymium Midrange Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

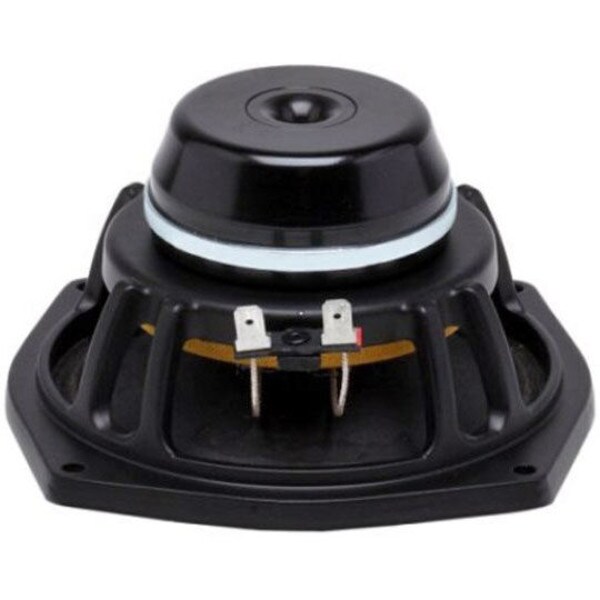

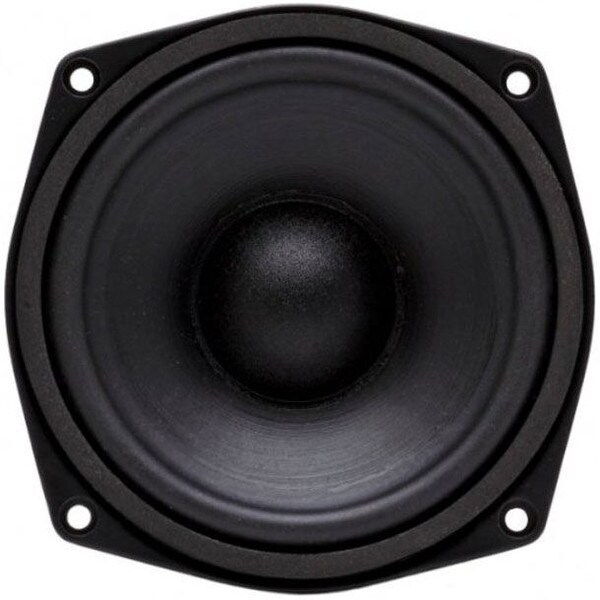

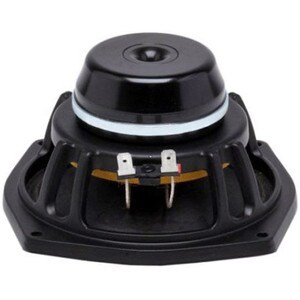

B&C 5NDL38 5" Professional Neodymium Midrange Speaker 8 Ohm

B&C's 5NDL38 5" speaker was designed for professional midrange applications that require high output and low distortion. The 5NDL38's powerful neodymium magnet reduces driver weight while maintaining superb efficiency, complemented by a short, low-mass copper voice coil.

Product Details

BrandB&C Speakers
Model5NDL38
Part Number294-5901
UPC848864009353
Unit of MeasureEach
Weight2.2

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter5.6
Power Handling (RMS)180 Watts
Impedance
Frequency Response90 to 7,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)92Hz
DC Resistance (Re)
Voice Coil Inductance (Le)0.35mH
Mechanical Q (Qms)11
Electromagnetic Q (Qes)0.5
Total Q (Qts)0.48
Compliance Equivalent Volume (Vas)0.12ft³
BL Product (BL)8.5T·m
Diaphragm Mass Inc. Airload (Mms)11g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)95cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.9"
Baffle Cutout Diameter4.8"
Depth2.95"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3151.9Hz
Vented Volume0.15ft³
Vented F383.1Hz
