  • Audtek VC-100RO Impedance Matching Outdoor Speaker Volume Control 100W

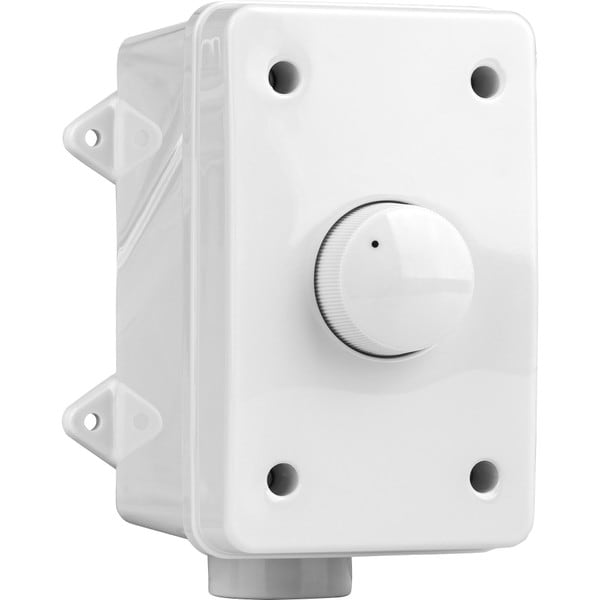

Audtek VC-100RO Impedance Matching Outdoor Speaker Volume Control 100W

Audtek ElectronicsPart # 300-569
Model: VC-100RO
The Audtek VC-100RO Impedance Matching Rotary 100W Outdoor Volume Control gives you 12 indented attenuation steps for use with any combination of 4, 8, or 16-ohm speakers. Independent grounds allow you to use the volume control with any amplifier.

Key Features

  • 12 indented attenuation steps from no signal to full signal with no signal quality loss
  • Impedance matching design for use with any combination of 4, 8, or 16-ohm speakers
  • Fits into most deep single gang electrical junction boxes
  • Independent grounds allow you to use with any amplifier

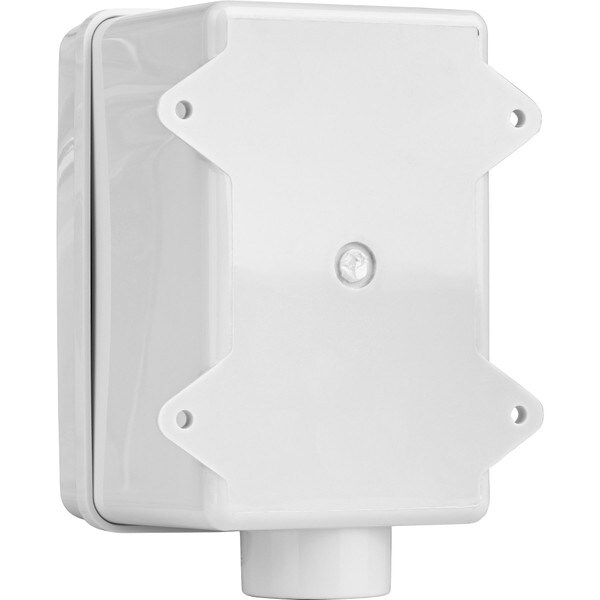

  • Enclosure for use outdoors
  • 1" hole for conduit (sold separately) for quick installation
  • Two speaker inputs and outputs eliminates the need for two controllers
Your Price: $25.98
MSRP: $33.99
Save $8.01 (24%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Audtek VC-100RO Impedance Matching Outdoor Speaker Volume Control 100W is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Audtek VC-100RO Impedance Matching Outdoor Speaker Volume Control 100W

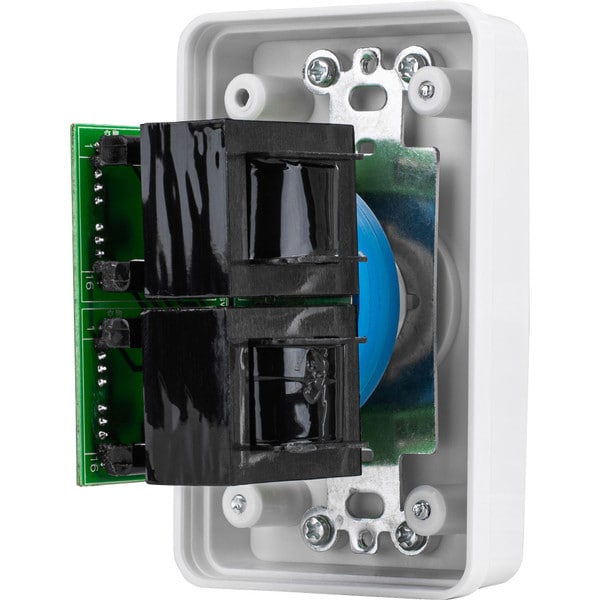

The Audtek VC-100RO Impedance Matching Rotary 100W Outdoor Volume Control gives you 12 indented attenuation steps for use with any combination of 4, 8, or 16-ohm speakers. Impedance matching design allows you to use the control with any combination of 4, 8, or 16-ohm speakers. Easily adjust impedance by adjusting the position of two shorting bars. High-quality components ensure no signal quality loss while attenuating. A broad frequency response retains a tight low-end response and crisp highs. Phoenix-type connectors accept up to 14 AWG to simplify the installation process.

Specifications:


Type: Rotary impedance matching
Power handling: 2 x 100W
Speaker impedance: 4, 8, 16 ohms
Attenuation steps: 12 (step 1 is no signal, steps 2-7 at 3 dB each, step 8-11 at 6 dB each, step 12 is full signal)
Frequency response: 35-20,000 Hz
Input / output connections: Phoenix-type, up to 14-gauge speaker cable
Size: Standard single gang
Dimensions: 5" x 3-1/2" x 3-5/8"

Product Details

BrandAudtek Electronics
ModelVC-100RO
Part Number300-569
UPC848864063836
Unit of MeasureEach
Weight1.5

Product Specifications

Control SurfaceRotary Knob
Wall Plate ColorWhite

Specifications
