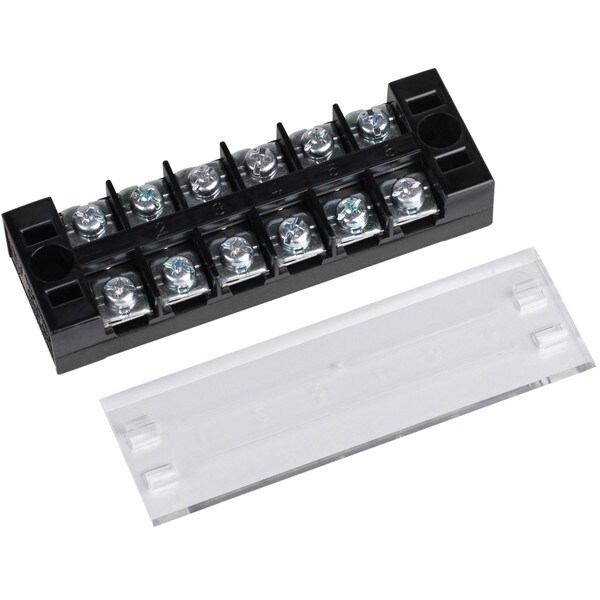

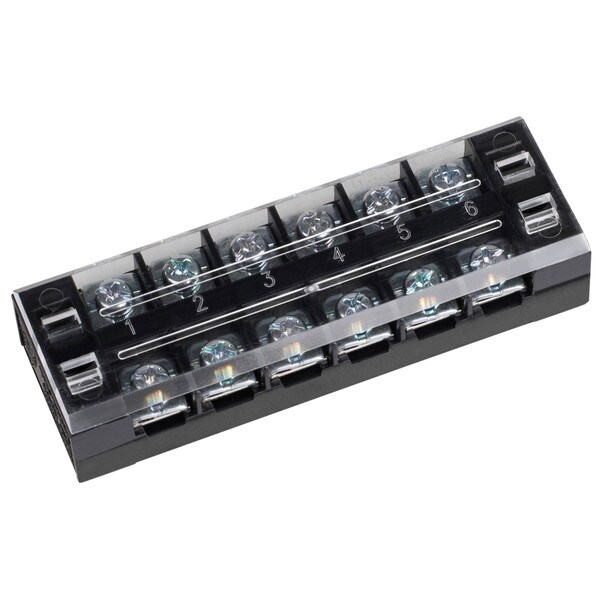

6 Pole 25A Barrier Terminal Strip with Snap-on Clear Plastic Cover

Parts ExpressPart # 090-847
Double row barrier strip made from heavy-duty thermoplastic. Clear plastic cover and 25 amp current rating make it great for automotive power distribution.

Key Features

  • Made with heavy-duty UL 94-2 flame rated plastic for durability and safety
  • Brass conductors provide great connectivity
  • Snap-on clear plastic cover helps prevent accidental short circuits
  • One 0.20" mounting hole on each side for a secure hold
Your Price: $3.49
MSRP: $3.99
Save $0.50 (13%)
Bulk Pricing
Quantity:Qty: 1-9 $3.49/ea
Quantity:Qty: 10+ $3.19/ea
389 In Stock
Get Notified When Available

We'll send you an email when 6 Pole 25A Barrier Terminal Strip with Snap-on Clear Plastic Cover is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

6 Pole 25A Barrier Terminal Strip with Snap-on Clear Plastic Cover

This heavy-duty double row barrier strip is perfect for running multiple automotive accessories from one power source. On one side of the terminal strip, connect all six screws together with short jumper wires. From that same side run a hot wire to the fuse box or positive battery terminal. The other side of the strip now has six hot terminals to power six different accessories items as long as their amperage does not add up to over 25 amps. This eliminates running multiple wires to one terminal on the fuse box or battery. Ground the accessory item to a metal chassis screw closest to it and you're done. Snapping the clear plastic cover over the top of the terminal strip helps prevent accidental contact with metal materials. Recommend fusing the main hot wire.

Specifications: • Dimensions: 92 mm (3.62") L x 30 mm (1.18") W x 19.5 mm (0.77") • Gap: 10 mm (0.39") • Pitch: 12 mm (0.47") • Screws: M4 • Max voltage: 600 V • Max current: 25A • Max temperature: 110° C (230° F) • Poles: 6.

Product Details

BrandParts Express
Part Number090-847
UPC848864044071
Unit of MeasureEach
Weight0.1
