  • 12 Terminal Barrier Strip Jumper Bar 12mm Pitch

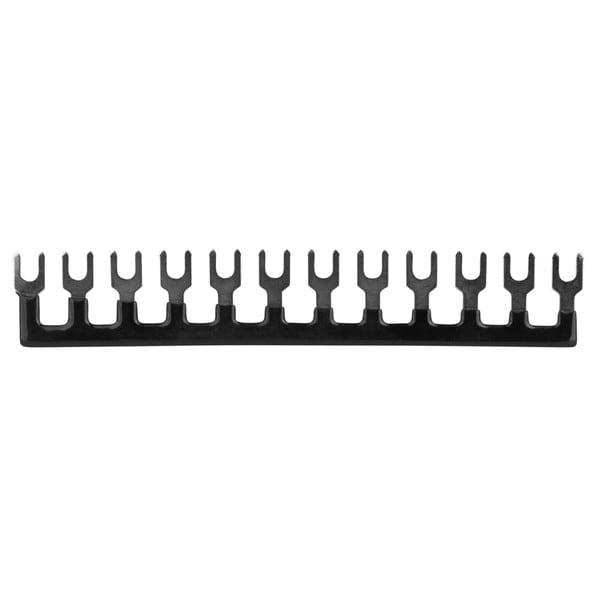

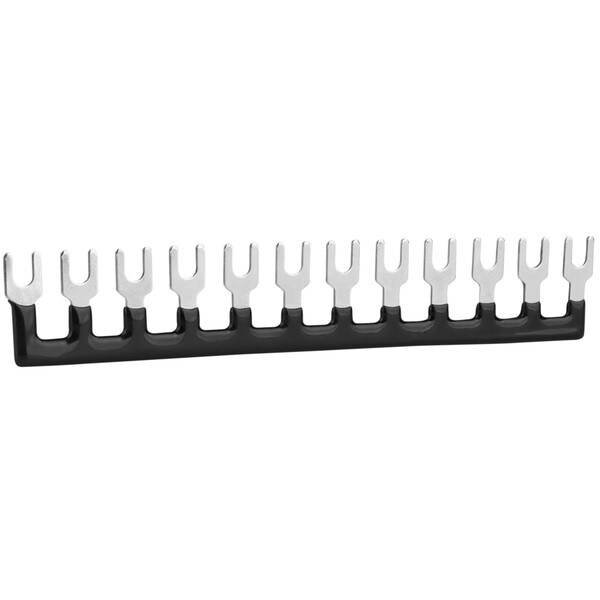

12 Terminal Barrier Strip Jumper Bar 12mm Pitch

Parts ExpressPart # 090-839
This 12 position insulated terminal block jumper shunt strip fits 12 mm pitch barrier terminal strips. It conveniently connects all 12 poles without having to use extra wires. Break them into smaller jumpers for barrier strips with fewer poles.

Key Features

  • Fits 12 mm pitch lug type barrier terminal strips
  • Insulated to prevent accidental electrical shock or short circuit
  • Break them into smaller jumpers for terminal strips with fewer poles
  • Quickly connects 12 poles together
  • Black for polarity identification if needed
Your Price: $2.68
MSRP: $6.99
Save $4.31 (62%)
Bulk Pricing
Quantity:Qty: 1-9 $2.68/ea
Quantity:Qty: 10+ $2.41/ea
216 In Stock
Get Notified When Available

We'll send you an email when 12 Terminal Barrier Strip Jumper Bar 12mm Pitch is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

12 Terminal Barrier Strip Jumper Bar 12mm Pitch

Why fool with stripping wires and wrapping them around screws? This insulated 12 position terminal jumper bar connects all 12 poles together in seconds making the whole barrier strip one conductor for positive or negative hook-up. Break it in half and now you have two 6 position jumper bars making one barrier strip positive and negative, or use it on a smaller 6 pole terminal barrier strip. The insulation helps prevent accidental electrical shock or short circuits. Its 12 mm pitch only fits 12 mm pitch lug terminal barrier strips.

Specifications: • Terminals: 12 • External fork width: 0.32" (8.07 mm) • Internal fork width: 0.16" (4.1 mm) • Fork thickness without insulator: 0.033" (0.85 mm) • Total bar width with forks: 5.56" (141.16 mm) • Pitch: 12 mm.

Product Details

BrandParts Express
Part Number090-839
UPC848864050157
Unit of MeasureEach
Weight0.03
