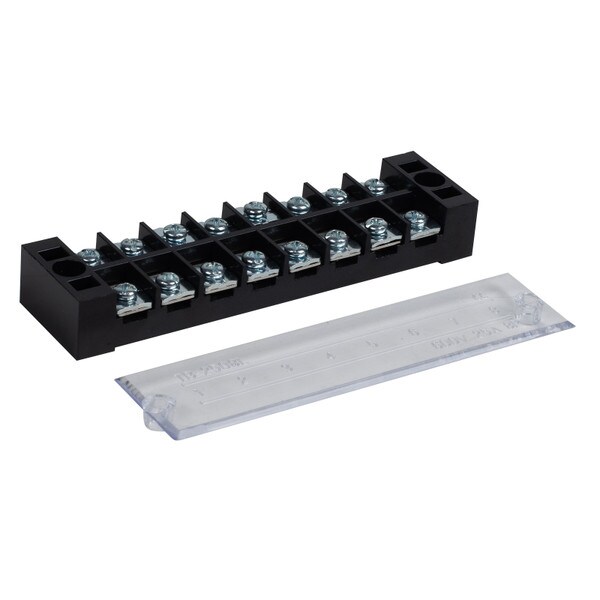

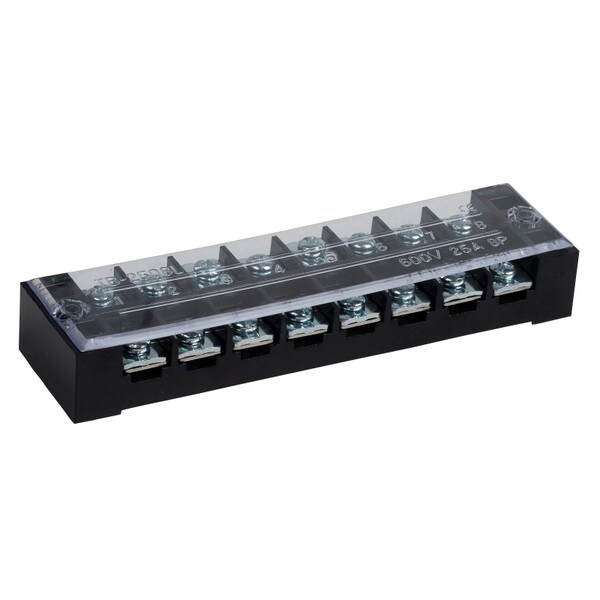

NEW 25A Barrier Terminal Block, 8 Position Dual Row Screws 12 Pitch with Cover

Parts ExpressPart # 090-821

Double row barrier strip made from heavy-duty thermoplastic. Clear plastic cover and 25 amp current rating make it great for automotive power distribution.

Key Features

  • Made with heavy-duty flame resistant plastic for durability and safety
  • Nickel plated copper plates provide great connectivity
  • Snap-on clear plastic cover helps prevent accidental short circuits
  • One 0.18" (4.5 mm) mounting hole on each side 4.13" (105 mm) apart for a secure hold
NEW $3.29
MSRP: $5.99
Save $2.70 (45%)
Bulk Pricing
Quantity:Qty: 1-9 $3.29/ea
Quantity:Qty: 10+ $2.99/ea
In Stock
Get Notified When Available

We'll send you an email when 25A Barrier Terminal Block, 8 Position Dual Row Screws 12 Pitch with Cover is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

25A Barrier Terminal Block, 8 Position Dual Row Screws 12 Pitch with Cover

Safely Power Several Devices

Use this Heavy-Duty Double Row Barrier Strip as your go-to solution for efficiently powering multiple automotive accessories or home electronics from a single power source! This versatile terminal strip is designed to streamline your wiring process, making it both effective and manageable.

Car Hookups

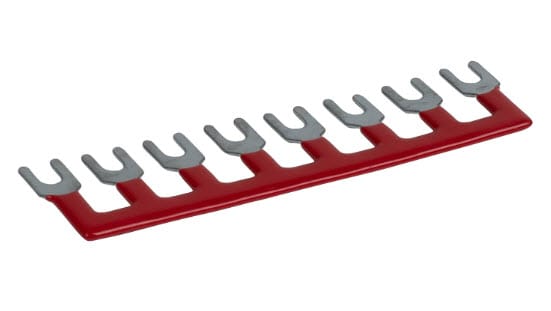

To begin, connect all eight screws on one side of the terminal strip with short jumper wires or a jumper bar (sold separately). This setup will allow you to run a hot wire directly to the fuse box or the positive battery terminal from the same side. By doing this, you will transform the opposite side of the strip into eight hot terminals, ready to power various accessory items—just be sure their total amperage does not exceed 25 amps.

This remarkable design eliminates the hassle of running multiple wires to a single terminal in your fuse box or battery terminal, providing a tidy and organized solution for all your needs. For optimal performance, ground each accessory item to the nearest metal chassis screw, ensuring a reliable connection every time.

Safety Feature

To enhance safety, snap the clear plastic cover over the top of the terminal strip. This protective feature helps prevent accidental contact with metal materials, giving you peace of mind as you work on your project. For best practices, we highly recommend fusing the main hot wire to provide an additional layer of protection for your setup.

Take pride in your automotive and home wiring work and enjoy the ease and efficiency that the Heavy-Duty Double Row Barrier Strip brings to your projects! You’re making a smart choice that will simplify your wiring tasks and enhance the performance of your automotive home electronic accessories.

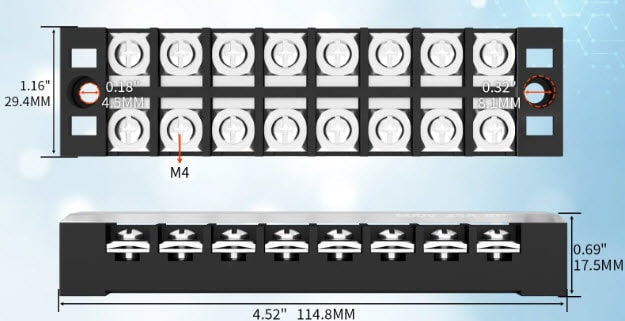

Specifications: • Dimensions: 114.8 mm (4.52") L x 29.4 mm (1.16") W x 17.5 mm (0.69")  H • Individual terminal gap: 10.5 mm (0.41") • Pitch: 12 mm (0.47") • Screws: M4 • Max voltage: 600 V • Max current: 25A • Max temperature: 110° C (230° F) • Poles: 8.






Product Details

BrandParts Express
Part Number090-821
UPC848864079110
Unit of MeasureEach
Weight0.15
