Pyle PLPW8D Power 8" 800 Watt DVC Subwoofer

Pyle Audio
Part #267-7452

Pyle PLPW8D Power 8" 800 Watt DVC Subwoofer

Pyle Audio
Part #267-7452
Model: PLPW8D
Bring new-life and head-turning bass to your on/off-road sound system with the Pyle PLPW8D dual voice coil subwoofer.
Key Features

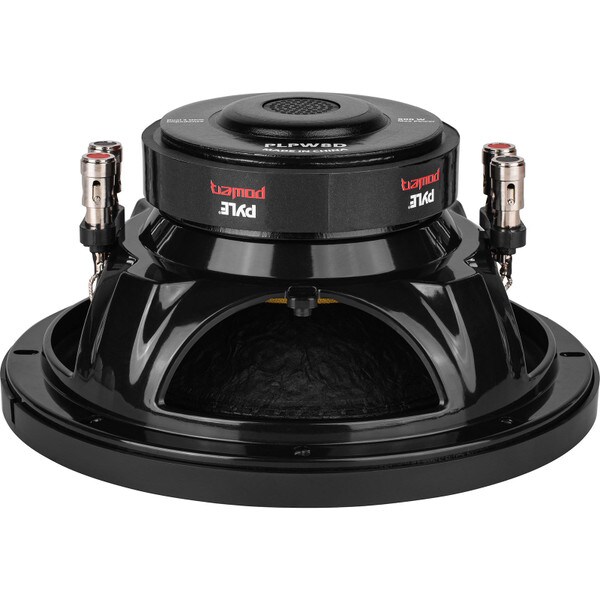

  • Easy to use spring loaded push down speaker terminals
  • Bumped and vented motor construction reduces heat build-up and extends the life
  • 1.5" four-layer high-temperature dual voice coil with 40 oz. magnet produces 400 watts of continuous booming bass
Your Price: $33.94
Bulk Pricing
Quantity:Qty: 1-3 $33.94/ea
Quantity:Qty: 4+$30.85/ea

Back-Ordered

Estimated back in stock 5/23/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Pyle PLPW8D Power 8" 800 Watt DVC Subwoofer

The PLPW8D 8" booming 800 watt subwoofer's design attracts those who love bass. This subwoofer will make your music growl in your vehicle or at home, in any type of enclosure: sealed, vented, or open-air. The black reinforced polymer basket and non-press paper cone look sleek - and thanks to a 40 oz. magnet, 1.5-Inch four-layer dual voice coil, and specially treated foam surround, it sounds great too. Connect to your amplifier using the spring loaded, push-down speaker terminals and feel the Pyle Power.

Specifications: • Power output: 400W RMS/800W max • Impedance: Dual 4 ohm • SPL: 89 dB • Dimensions: 8.2" Dia. x 3.7" D • Magnet weight: 40 oz.

Product Details

BrandPyle Audio
ModelPLPW8D
Part Number267-7452
UPC068889019506
Unit of MeasureEach
Weight4.2

Product Specifications

Nominal Diameter8"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8Ω
Frequency Response40-3,000Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)46.2Hz
DC Resistance (Re)6.8Ω
Mechanical Q (Qms)4.03
Electromagnetic Q (Qes)0.69
Total Q (Qts)0.59
Compliance Equivalent Volume (Vas)0.732ft³
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)219cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Basket / Frame MaterialPolymer

Mounting Information

Overall Outside Diameter8.27"
Baffle Cutout Diameter7.09"
Depth3.98"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F364.4Hz
Vented Volume1ft³
Vented F339.2Hz
