Pyle PLPW10D Power 10" 1000 Watt DVC Subwoofer

Pyle AudioPart # 267-7444
Model: PLPW10D
Bring new-life and head-turning bass to your on/off-road sound system with the Pyle PLPW10D dual voice coil subwoofer.

Key Features

  • Easy to use spring loaded push down speaker terminals
  • Bumped and vented motor construction reduces heat build-up and extends the life
  • 2" four-layer high-temperature dual voice coil with 50 oz. magnet produces 500 watts of continuous booming bass
Your Price: $47.40
MSRP: $63.99
Save $16.59 (26%)
Bulk Pricing
Only 3 In Stock
Get Notified When Available

We'll send you an email when Pyle PLPW10D Power 10" 1000 Watt DVC Subwoofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

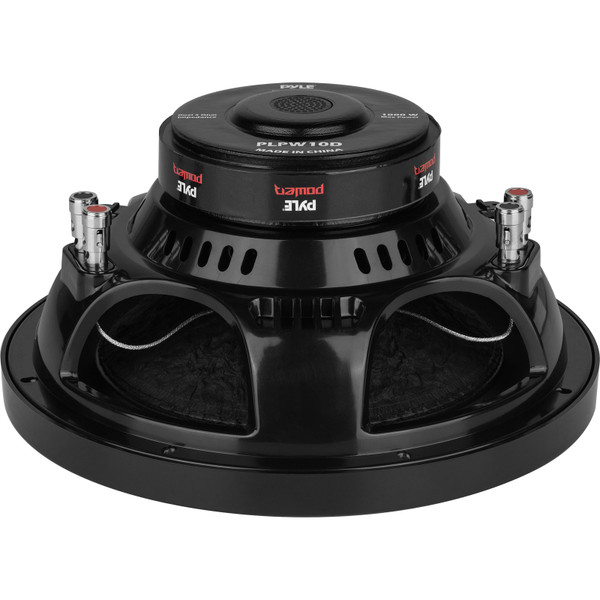

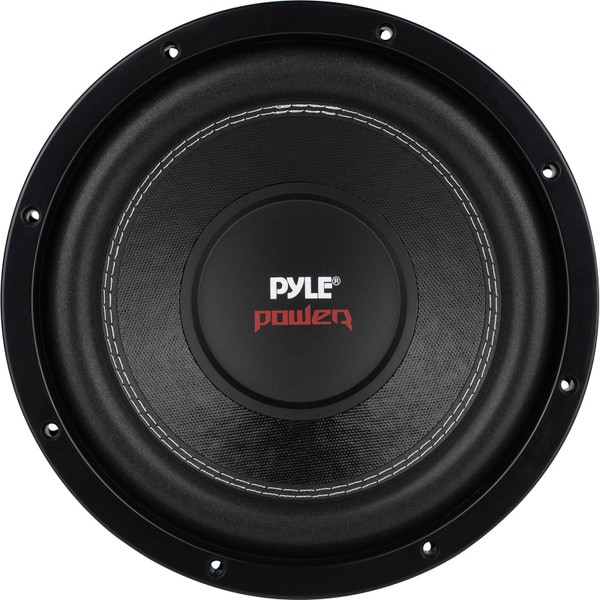

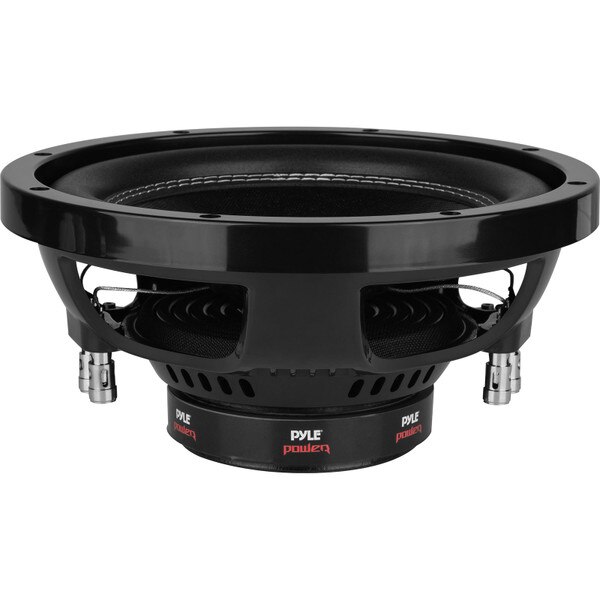

Pyle PLPW10D Power 10" 1000 Watt DVC Subwoofer

The PLPW10D 10" booming 1000 watt subwoofer's design attracts those who love bass. This subwoofer will make your music growl in your vehicle or at home, in any type of enclosure: sealed, vented, or open-air. The black reinforced polymer basket and non-press paper cone look sleek - and thanks to a 50 oz. magnet, 2-Inch four-layer dual voice coil, and specially treated foam surround, it sounds great too. Connect to your amplifier using the spring loaded, push-down speaker terminals and feel the Pyle Power.

Specifications: • Power output: 500W RMS/1,000W max • Impedance: Dual 4 ohm • SPL: 90 dB • Dimensions: 10" Dia. x 4.7" D • Magnet weight: 50 oz.

Product Details

BrandPyle Audio
ModelPLPW10D
Part Number267-7444
UPC068889019513
Unit of MeasureEach
Weight5.65

Product Specifications

Nominal Diameter10"
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response42 to 3,000Hz
Sensitivity88dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)42.1Hz
DC Resistance (Re)6.8Ω
Mechanical Q (Qms)3.64
Electromagnetic Q (Qes)0.65
Total Q (Qts)0.55
Compliance Equivalent Volume (Vas)1.256ft³
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)330cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Basket / Frame MaterialPolymer

Mounting Information

Overall Outside Diameter10.28"
Baffle Cutout Diameter9.134"
Depth4.53"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F361.1Hz
Vented Volume1.5ft³
Vented F339.1Hz
