  • PRV Audio MT2.7TWB-4 Moto Series 2.75" Short Horn Chrome Tweeter 4 Ohm

Overview

  • Engineered for custom motorcycles, this tweeter delivers extreme high output with minimal modification to complement multiple high-efficiency speakers
  • Offers two flush mounting options based on baffle thickness, with a front ring and tightening tool for easy installation in compact spaces
  • Equipped with a powerful neodymium magnet for high performance in a compact design, featuring convenient quick-connect push terminals and a 4-ohm impedance
  • This 2.75″ horn tweeter handles up to 140 watts, delivering exceptional high-frequency response with a sensitivity of 107 dB at 1W/1m

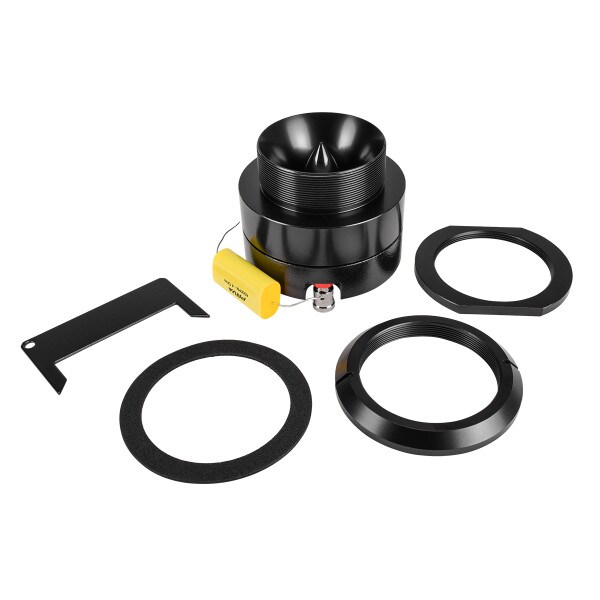

  • Includes a protective capacitor to guard against damaging high-power frequencies, along with all necessary mounting hardware and a tightening tool

The MT2.7TWB-4 tweeter offers a unique dual flush-mounting option, enabling a sleek installation without exposed threads. It can be flush-mounted in thin baffle cutouts and tightened from the front ring, making it ideal for installations with limited space.

A 10 mm front ring and rubber gasket provide a secure fit, concealing the threaded barrel, while the compact design easily fits into existing fairing gauge holes on your motorcycle.

Crafted with premium materials like a titanium diaphragm, high-temperature 1.4” voice coil, and a robust neodymium magnet motor, this tweeter delivers exceptional high-frequency performance. The MOTO Series is dedicated to providing top-notch pro audio quality tailored for motorsports applications.

Not only does this driver look impressive, but it also handles substantial power, supporting up to 140 watts with a 12 dB/octave crossover at 6,000 Hz.

Specifications

  • Nominal impedance: 4 Ohm
  • Nominal Power Handling:* 70 Watts
  • Continuous Program Power (RMS):** 140 Watts
  • Max Peak Power:*** 280 Watts
  • Sensitivity 2.00V at 1m: 107 dB
  • Recommended Hi Pass Crossover For Full Power Handling: 5000 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB: 4,000 – 20,000Hz
  • Voice Coil Diameter: 1.4″
  • Voice Coil Wire: CCAW
  • Voice Coil Former Material: Kapton
  • Diaphragm Material: Titanium
  • Magnet Material: Neodymium

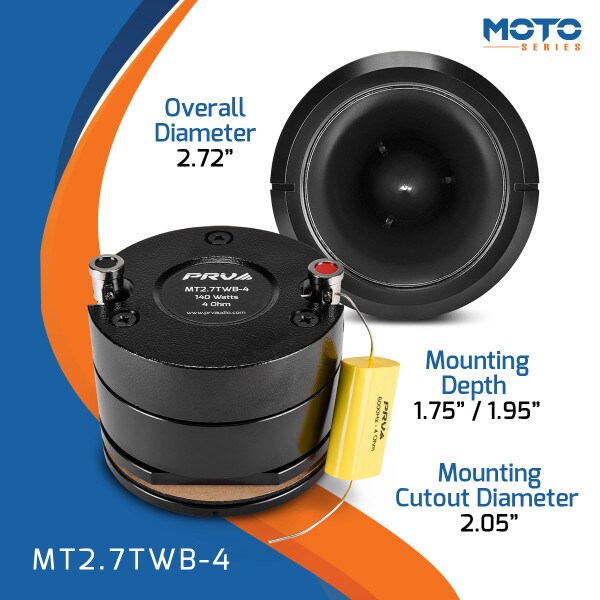

  • Overall Height: 2.46″
  • Mounting Depth: 1.75″ / 1.95″
  • Overall Diameter: 2.72″
  • Cutout Diameter: 2.05″
  • Net Weight: 1.59 Lbs

    •   *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
    **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
    ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
