  • PRV Audio MT2.2TWC-4 Moto Series 2.25" Short Horn Chrome Tweeter 4 Ohm

CLEARANCE PRV Audio MT2.2TWC-4 Moto Series 2.25" Short Horn Chrome Tweeter 4 Ohm

PRV AudioPart # 267-8050
Model: MT2.2TWC-4

Introducing the PRV MOTO Series, an innovative line of high-performance speakers engineered for the rigors of motorsports. Built with only the best components that are made to weather the great outdoors, the MOTO Series is here to upgrade your motorcycle, boat, ATV, side-by-side, and more. The MT2.2TWC-4 is made to give your motorcycle a super tweeter that doesn't take up too much space but can perform at the quality level you demand.

Key Features

  • Designed with motorcycles in mind, this horn can keep up with the noise of the road
  • Two flush mounting options to accommodate different baffle thicknesses
  • Premium materials such as a titanium diaphragm and neodymium magnet motor offer mean this super tweeter is built to last
  • With a 107db sensitivity at 1w/1m, this horn tweeter can scream for its small size
  • Small enough to easily fit into the existing fairing gauge holes on your motorcycle
  • Included capacitor will protect from damaging frequencies at high power

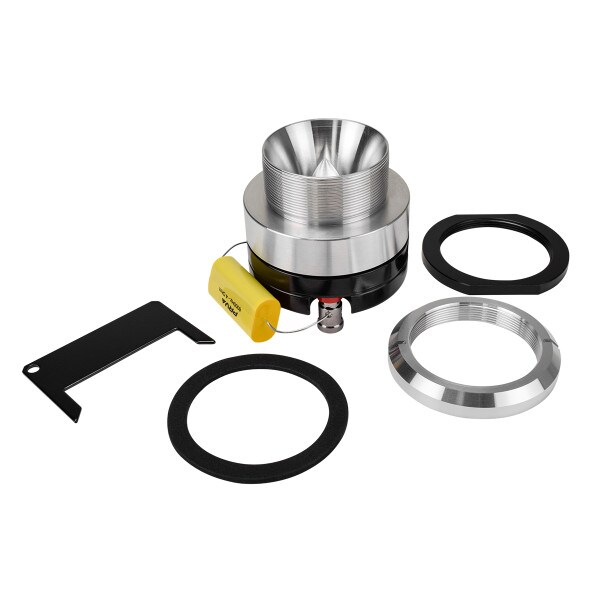

  • Mounting hardware and tightening tool included
CLEARANCE $86.91
MSRP: $108.64
Save $21.73 (20%)
Bulk Pricing
10 In Stock
Get Notified When Available

We'll send you an email when PRV Audio MT2.2TWC-4 Moto Series 2.25" Short Horn Chrome Tweeter 4 Ohm is back in stock or available for preorder.

Order in the next 0 hr 3 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

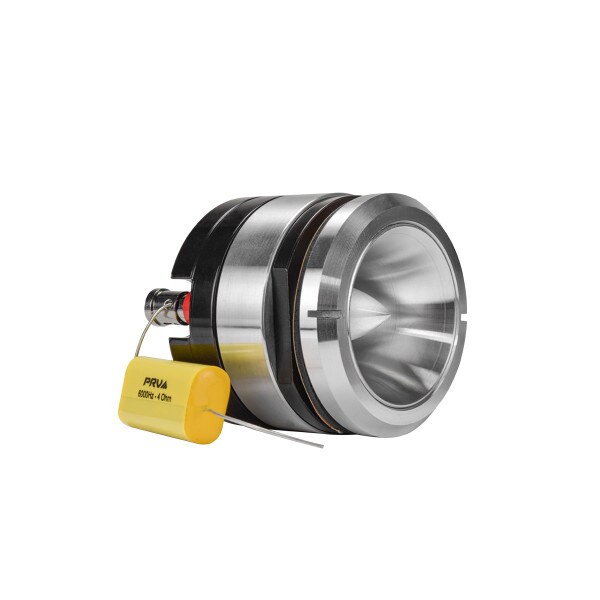

PRV Audio MT2.2TWC-4 Moto Series 2.25" Short Horn Chrome Tweeter 4 Ohm

The MT2.2TWC-4 horn tweeter is an excellent motorcycle audio upgrade. It enhances the sound system in your UTV, 4-wheeler, Slingshot, or motorcycle while fitting into tight spaces.

Part of PRV's MOTO Series (MT), these super tweeters use a short horn design for a clean, compact install. Available in two sizes, each model includes flexible mounting options for easy integration.

  • Engineered for motorcycles, this tweeter delivers high output and easy mounting, ideal for overcoming road noise.
  • Offers two flush mounting options to accommodate different baffle thicknesses, with a front ring and tightening tool for compact installations.

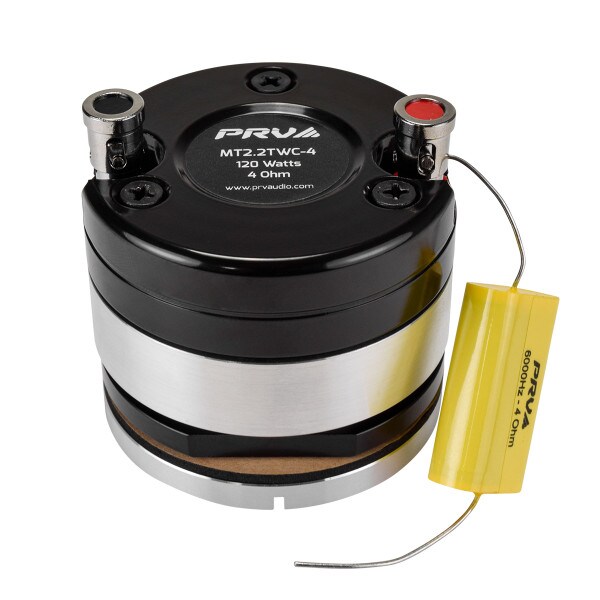

  • Equipped with a powerful neodymium magnet, providing high performance in a compact form, plus convenient quick-connect push terminals and 4-ohm impedance.

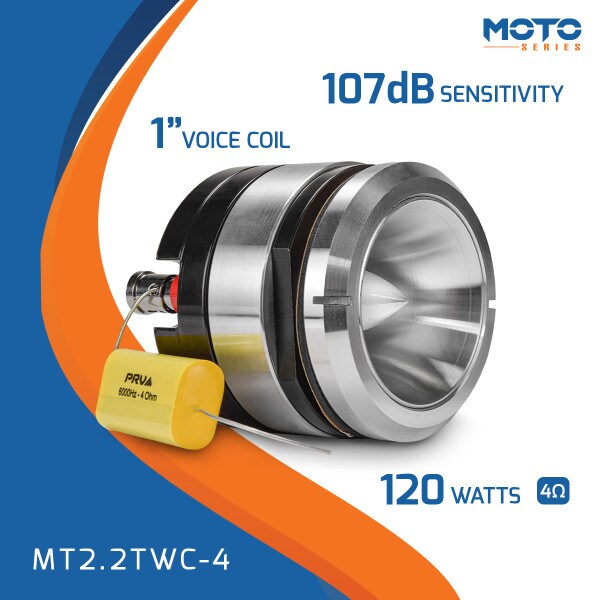

  • This compact 2.25″ horn tweeter is designed to handle 120 watts, with remarkable high-frequency response and 107 dB sensitivity at 1W/1m.
  • Includes a protective capacitor for handling high power frequencies, along with all necessary mounting hardware and a tightening tool.

A standout feature of the MT2.2TWB-4 tweeter is its dual flush-mounting options, allowing for a clean, tread-free installation. It can be flush-mounted in thin baffle cutouts or tightened from the slotted front ring for more compact setups.

The 10 mm slim front ring and rubber gasket provide a secure mount, concealing the threaded barrel, and the compact size easily fits into existing fairing gauge holes on motorcycles.

Built with premium materials like a titanium diaphragm, high-temperature voice coil, and a powerful neodymium motor, this tweeter delivers exceptional high-frequency performance. The MOTO Series is dedicated to bringing top-tier pro audio quality to motorsports applications.

Not only does this driver sound incredible, but it also looks impressive and handles substantial power—up to 120 watts with a 12 dB/octave crossover at 6,000 Hz.

Specifications

  • Nominal impedance: 4 Ohm
  • Nominal Power Handling:* 60 Watts
  • Continuous Program Power (RMS):** 120 Watts
  • Max Peak Power:*** 240 Watts
  • Sensitivity 2.00V at 1m: 107 dB
  • Recommended Hi Pass Crossover For Full Power Handling: 6000 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB: 4,500 – 20,000Hz
  • Voice Coil Diameter: 1.0″
  • Voice Coil Wire: CCAW
  • Voice Coil Former Material: Kapton
  • Diaphragm Material: Titanium
  • Magnet Material: Neodymium

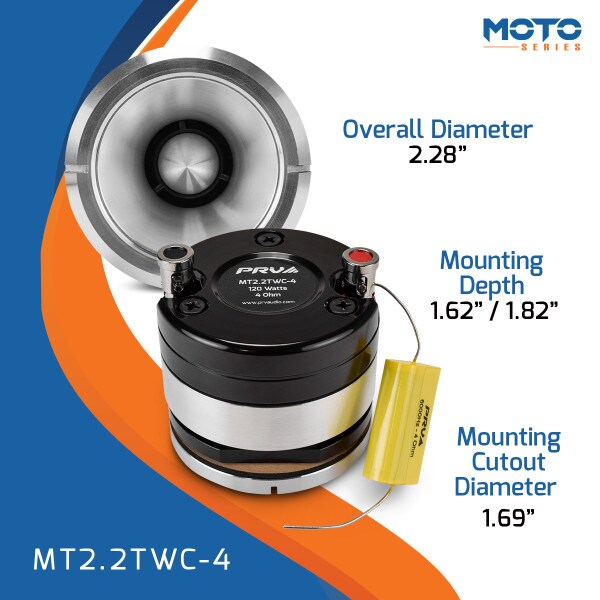

  • Overall Height: 2.34″
  • Mounting Depth: 1.62″ / 1.82″
  • Overall Diameter: 2.28″
  • Cutout Diameter: 1.69″
  • Net Weight: 1.1 Lbs

    •   *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
    **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
    ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Product Details

BrandPRV Audio
ModelMT2.2TWC-4
Part Number267-8050
UPC810075523270
Unit of MeasureEach
Weight1.21

Product Specifications

Nominal Diameter10"
Tweeter TypeHorn
Power Handling (RMS)120 Watts
Power Handling (MAX)2000 Watts
Impedance4Ω
Sensitivity86dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)36.2Hz
DC Resistance (Re)1.7Ω
Voice Coil Inductance (Le)1.17mH
Mechanical Q (Qms)7.01
Electromagnetic Q (Qes)0.55
Total Q (Qts)0.51
Compliance Equivalent Volume (Vas)1.06ft³
Mechanical Compliance of Suspension (Cms)0.137mm/N
BL Product (BL)9.91T·m
Diaphragm Mass Inc. Airload (Mms)140.9g
Maximum Linear Excursion (Xmax)14mm
Surface Area of Cone (Sd)391cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum

Mounting Information

Overall Outside Diameter10.38"
Baffle Cutout Diameter9.37"
Depth5.53"
# Mounting Holes4
