  • PRV Audio D275Ph-S 1" Phenolic Compression Driver 1-3/8"-18 TPI

CLEARANCE PRV Audio D275Ph-S 1" Phenolic Compression Driver 1-3/8"-18 TPI

2 Questions, 2 Answers or
PRV Audio
Part #294-3241

CLEARANCE PRV Audio D275Ph-S 1" Phenolic Compression Driver 1-3/8"-18 TPI

PRV Audio
Part #294-3241
Model: D275Ph-S
2 Questions, 2 Answers or

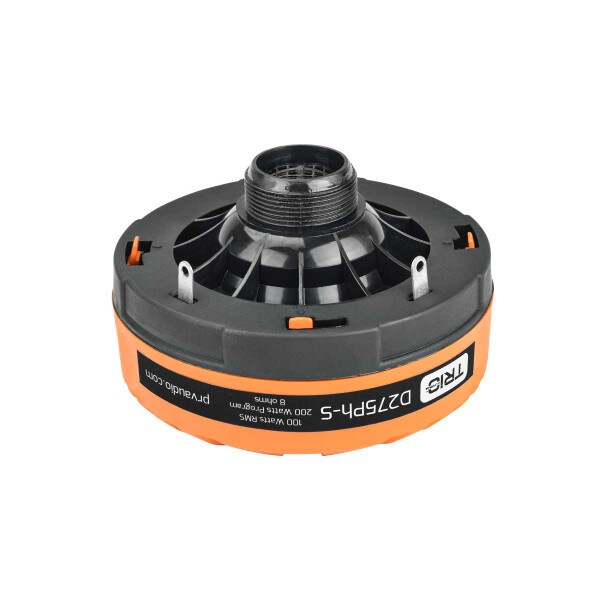

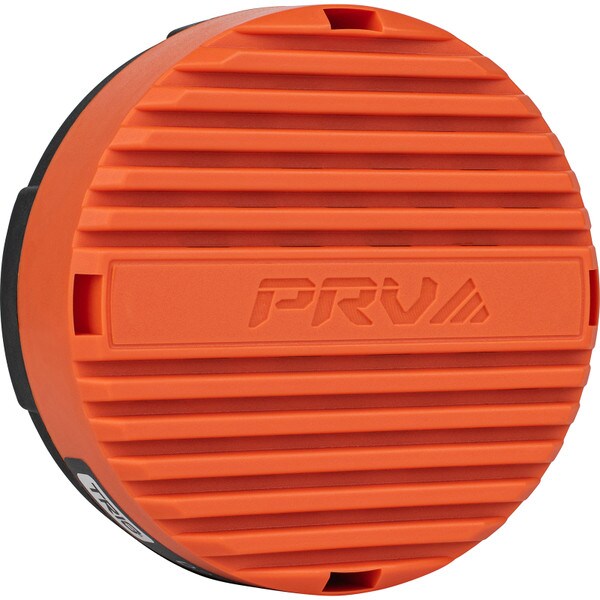

The D275Ph-S 1" exit phenolic compression driver from PRV Audio's Trio Series is all about midrange vocal reproduction at low distortion even when driven to high SPL output. The damped phenolic diaphragm will deliver smooth and natural response with minimal resonance. With 107 dB efficiency and 100 watt power handling, the D275Ph-S has the output capability to keep up with the most powerful sound systems.
Key Features
  • Damped phenolic diaphragm produces smooth midrange and natural vocal response
  • 100 watts RMS and 107 dB efficiency ensures high output capability
  • Easy transition to midbass and tweeters thanks to the wide 500 to 6,500 Hz frequency response

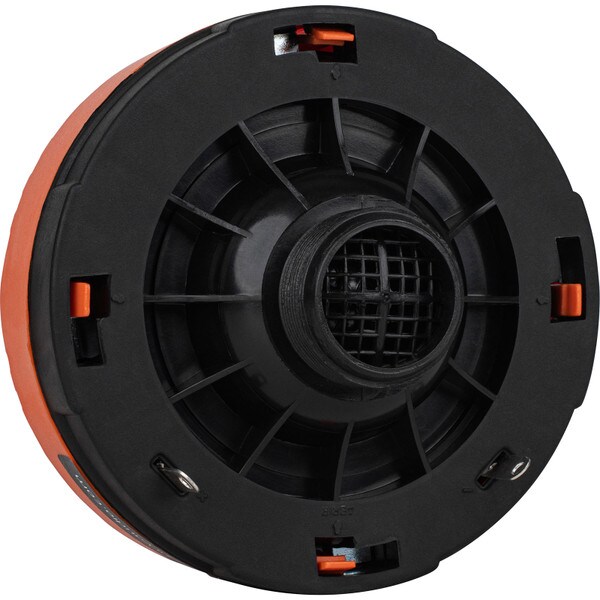

  • Standard 1-3/8" - 18 TPI screw on mount for use with many popular horns
CLEARANCE $32.91
MSRP: $47.39
Save $14.48 (31%)
Bulk Pricing
Order in the next 0 hr 47 min to ship today. Details

Only 1 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio D275Ph-S 1" Phenolic Compression Driver 1-3/8"-18 TPI

The D275Ph-S 1" exit Trio compression driver will provide high output midrange response with low distortion to reproduce the all-important vocal range with the authority and clarity that PRV Audio drivers are known for. Its 2" diameter copper voice coil is wound on a high temperature Kapton former to reliably handle up to 100 watts RMS for extended periods (when used with the recommended 500 Hz, 12 dB/octave high pass crossover). The coil and powerful ferrite magnet drive a damped phenolic diaphragm that minimizes unwanted resonances for smooth and natural response from 500 to 6,500 Hz. When designing your next high SPL sound system, the D275h-S is a great choice for filling in the difficult midrange frequencies.

Specifications: • Power handling: 100 watts RMS, 200 watts peak (with 500 Hz, 12dB/octave high pass crossover) • Impedance: 8 ohms • Frequency response: 500-6,500 Hz • Sensitivity: 107 dB 2.83V/1m • Dimensions: 4.16" dia. x 2.67" depth.

Product Details

BrandPRV Audio
ModelD275Ph-S
Part Number294-3241
UPC619620088307
Unit of MeasureEach
Weight2.1

Product Specifications

Diaphragm MaterialPhenolic
Exit Diameter1"
Mounting Type1-3/8"-18 TPI
Power Handling (RMS)100 Watts
Impedance8Ω
