  • PRV Audio 3DF750/5000 Three-Way Crossover Board 750/5,000 Hz with Selectable Attenuation

CLEARANCE PRV Audio 3DF750/5000 Three-Way Crossover Board 750/5,000 Hz with Selectable Attenuation

PRV AudioPart # 294-2886
Model: 3DF750/5000

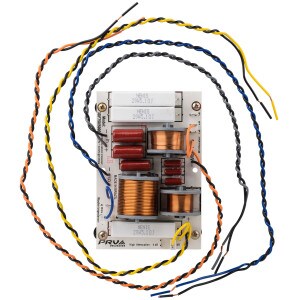

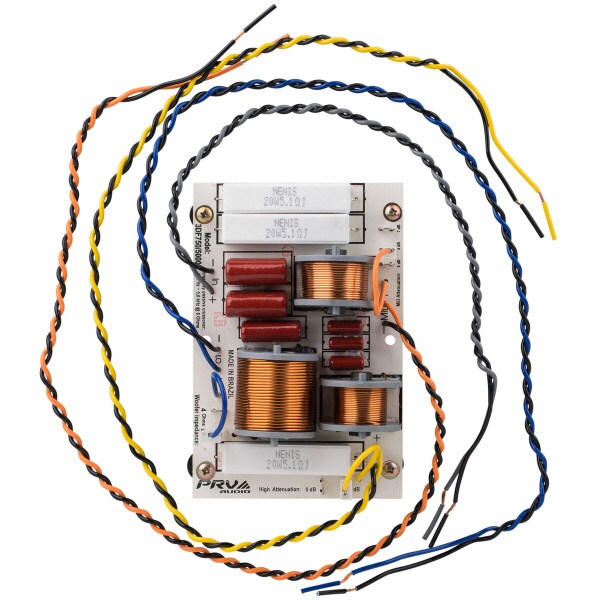

The PRV Audio 3DF750/5000 is a 3‑way passive crossover built for professional loudspeaker systems, with selectable tuning and rugged construction. Handling 450 W RMS (900 W program) and featuring fixed 750 Hz and 5,000 Hz crossover points, it delivers precise frequency separation for high-performance audio applications

Key Features

  • 450 W RMS (900 W program) power handling supports powerful speaker setups
  • Switchable 4 Ω/8 Ω woofer impedance
  • Selectable 12 dB/Oct woofer roll-off
  • Fixed crossover points at 750 Hz and 5,000 Hz for clear LF/MF/HF separation
  • HF and mid attenuation options ensure smooth tonal blending across drivers
  • Brightness control tweaks high-frequency output for clarity or warmth
CLEARANCE $75.91
MSRP: $94.89
Save $18.98 (20%)
Bulk Pricing
23 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 3DF750/5000 Three-Way Crossover Board 750/5,000 Hz with Selectable Attenuation is back in stock or available for preorder.

Order in the next 4 hr 2 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 3DF750/5000 Three-Way Crossover Board 750/5,000 Hz with Selectable Attenuation

PRV Audio 3DF750/5000 Three-Way Crossover Board 750/5,000 Hz with Selectable Attenuation

PRV Audio crossovers are carefully engineered with a focus on component quality and mechanical durability. They not only deliver great sound but also endure the rigors of transport and live performances. These crossovers include distinctive selectable features:

Woofer Impedance Selection
This setting enables the same crossover to work with 8 or 4 Ohm speakers, including series or parallel combinations, offering a single solution for various cabinet configurations.

Woofer Roll-Off Crossover Adjustment
Some woofers exhibit excessive response at the cutoff frequency and require 12 dB/octave filters, while others have a natural roll-off near the crossover point and perform well with 6 dB/octave filters. PRV's 2DF1800 two-way crossover and 3DF400/1800 three-way crossover allow you to select between these filter slopes.

Speaker Attenuation
Adjust the output level of various speakers within your cabinet using this setting; it aids in achieving a smooth transition from highs to mids to lows—especially beneficial when driver sensitivities differ.

Brightness Adjustment
Many large format compression drivers naturally roll off above 10 kHz. Our brightness adjustment compensates for this by attenuating frequencies below 6 kHz while boosting high-frequency energy, enhancing brightness and definition.

All crossovers come preset from the factory with these adjustments in their default positions for quick and easy installation. However, with some experimentation and fine-tuning, you can significantly enhance the final sound quality of your speaker system.

Specifications

  • Type: Three-Way
  • Impedance: 8 Ohms
  • Crossover Point: 750/5,000 Hz
  • Woofer Impedance: 4/8 Ohms
  • Rated AES Power Handling – RMS: 450 Watts
  • Program Power: 900 Watts

  • Selectable Crossover Point: N/A
  • HF Attenuation: 0/4 dB
  • Brightness: N/A
  • Woofer Octave Sel: N/A
  • Midrange Attenuation: 0/4/7 dB
  • Octave: 12 dB

Product Details

BrandPRV Audio
Model3DF750/5000
Part Number294-2886
UPC602938021821
Unit of MeasureEach
Weight1.5

Product Specifications

ConfigurationAssembled Board Only
Crossover Type3-Way
