  • PRV Audio 3DF400/1800 Three-Way Crossover Board 400/1,800 Hz with Selectable Attenuation

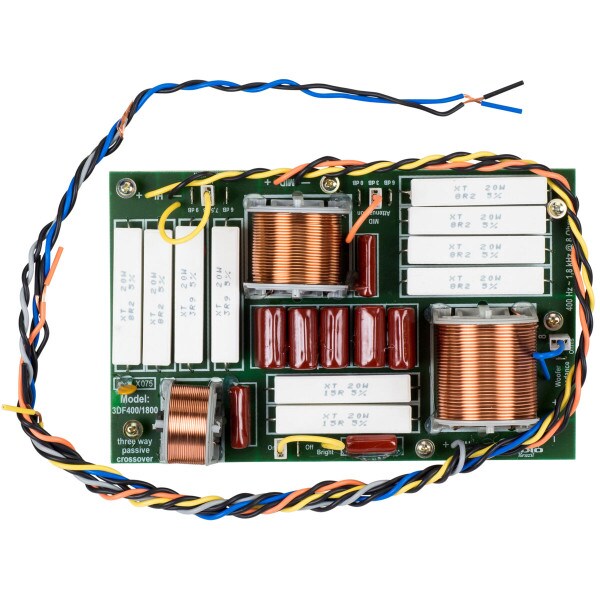

PRV Audio 3DF400/1800 Three-Way Crossover Board 400/1,800 Hz with Selectable Attenuation

PRV AudioPart # 294-2869
Model: 3DF400/1800

The PRV Audio 3DF400/1800 is a rugged three-way passive crossover designed for 950 W RMS power handling (1,900 W program), optimized for pro-grade loudspeaker systems. It delivers flexible tuning options and reliable performance in live or mobile audio setups.

Key Features

  • 950 W RMS (1,900 W program) rating supports high-power systems
  • Selectable woofer impedance (4 Ω/8 Ω)
  • Switchable woofer roll-off (6 dB/12 dB per octave)
  • Three HF attenuation levels (6/7.5/9 dB)
  • Brightness control balances high-frequency energy for added clarity
  • Fixed crossover points at 400 Hz and 1,800 Hz for standard three-way speaker alignment
  • Built-in attenuation adjustments simplify integration between uneven driver sensitivities
Your Price: $146.91
+ FREE SHIPPING
MSRP: $183.64
Save $36.73 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio 3DF400/1800 Three-Way Crossover Board 400/1,800 Hz with Selectable Attenuation is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 3DF400/1800 Three-Way Crossover Board 400/1,800 Hz with Selectable Attenuation

PRV Audio 3DF400/1800 Three-Way Crossover Board 400/1,800 Hz with Selectable Attenuation

PRV Audio crossovers are carefully engineered with a focus on component quality and mechanical durability. They not only deliver great sound but also endure the rigors of transport and live performances. These crossovers include distinctive selectable features:

Woofer Impedance Selection
This setting enables the same crossover to work with 8 or 4 Ohm speakers, including series or parallel combinations, offering a single solution for various cabinet configurations.

Woofer Roll-Off Crossover Adjustment
Some woofers exhibit excessive response at the cutoff frequency and require 12 dB/octave filters, while others have a natural roll-off near the crossover point and perform well with 6 dB/octave filters. PRV's 2DF1800 two-way crossover and 3DF400/1800 three-way crossover allow you to select between these filter slopes.

Speaker Attenuation
Adjust the output level of various speakers within your cabinet using this setting; it aids in achieving a smooth transition from highs to mids to lows—especially beneficial when driver sensitivities differ.

Brightness Adjustment
Many large format compression drivers naturally roll off above 10 kHz. Our brightness adjustment compensates for this by attenuating frequencies below 6 kHz while boosting high-frequency energy, enhancing brightness and definition.

All crossovers come preset from the factory with these adjustments in their default positions for quick and easy installation. However, with some experimentation and fine-tuning, you can significantly enhance the final sound quality of your speaker system.

Specifications

  • Type: Three-Way
  • Impedance: 8 Ohms
  • Crossover Point: 400/1,800 Hz
  • Woofer Impedance: 4/8 Ohms
  • Rated AES Power Handling – RMS: 950 Watts
  • Program Power: 1,900 Watts

  • Selectable Crossover Point: N/A
  • HF Attenuation: 6/7.5/9 dB
  • Brightness: Yes
  • Woofer Octave Sel: N/A
  • Midrange Attenuation: 0/3/6 dB
  • Octave: 12 dB

Product Details

BrandPRV Audio
Model3DF400/1800
Part Number294-2869
UPC799928734608
Unit of MeasureEach
Weight3.34

Product Specifications

ConfigurationAssembled Board Only
Crossover Type3-Way
