  • PRV Audio 8MR500CF-NDY-4 8" Midrange Neodymium Speaker Pair 4 Ohm

PRV Audio 8MR500CF-NDY-4 8" Midrange Neodymium Speaker Pair 4 Ohm

PRV AudioPart # 294-3145
Model: 8MR500CF-NDY-4

The PRV Audio 8MR500CF‑NDY‑4 is an 8″ neodymium midrange speaker featuring a water-resistant carbon fiber cone, designed for loud, clear sound in outdoor vehicles and powersports environments. Built in pairs with grilles and hardware, it provides reliable, high-output vocal performance in compact spaces.

Key Features

  • Water‑resistant design delivers pro‑audio performance in outdoor settings
  • Carbon fiber cone reduces weight and suppresses unwanted resonances
  • 96 dB sensitivity converts amplifier power into loud, detailed mids
  • Powerful neodymium magnet ensures high output in a lightweight package
  • High‑temperature CCAW voice coil with single‑layer spider enhances reliability under load
  • Vented magnet and pole‑piece protect from transient peaks and aid cooling
  • Sold in pairs with grilles and screws for easy installation
Your Price: $319.91
+ FREE SHIPPING
MSRP: $399.89
Save $79.98 (20%)
Bulk Pricing
Only 4 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 8MR500CF-NDY-4 8" Midrange Neodymium Speaker Pair 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 8MR500CF-NDY-4 8" Midrange Neodymium Speaker Pair 4 Ohm

8MR500CF-NDY-4 8" Midrange Neodymium Speaker Pair 4 Ohm

The MR500CF-NDY series was engineered for powersports applications, featuring a water-resistant design that delivers reliable performance while withstanding the challenges of outdoor environments.

Perfect for enhancing your audio system on boats, UTVs, ATVs, or motorcycles, this midrange speaker sets a new benchmark for vocal clarity in outdoor use. Built with premium components including a carbon fiber cone, high-temperature voice coil, and a powerful neodymium magnet, it delivers natural sound with impressively low distortion.

  • Water resistant with authentic pro audio midrange performance
  • Damped carbon fiber cone reduces moving mass and controls unwanted resonance
  • Low inductance design with extended frequency response
  • High-strength neodymium motor includes distortion-reducing components
  • Quick transient response with minimal coloration and impactful midbass

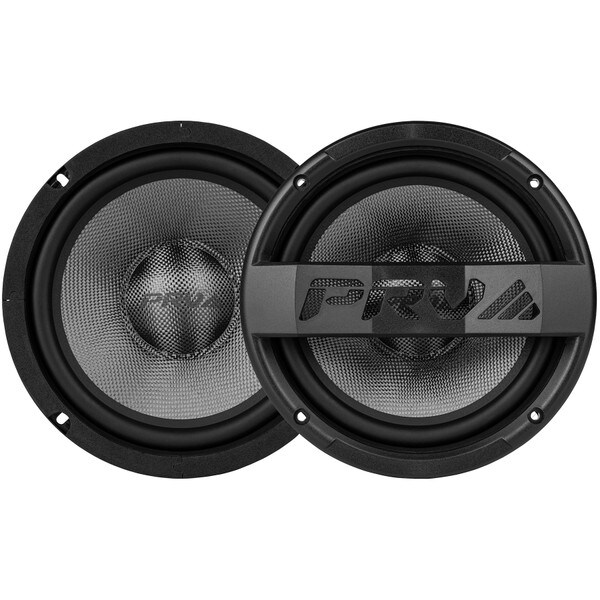

  • Sold in matched pairs with grille and mounting screws included

This midrange features a suspension system with a single-layer spider and premium stitched lead wires connected to a copper-clad aluminum voice coil, ensuring high efficiency and strong power handling. The voice coil is immersed in a powerful magnetic field generated by high-power neodymium radial slugs, optimizing performance.

You can count on excellent off-axis dispersion and fast transient response, delivering a wide sound stage and realistic, detailed sound from this water-resistant driver.

Built for loud, clear vocal performance in tight and compact installations, PRV Audio’s 8MR500CF-NDY-4 neodymium midrange delivers 96 dB sensitivity (2.83V/1m) while weighing just 4.16 pounds. With a 4-ohm impedance, it's engineered specifically for high-output motorsports audio systems.

Its bumped back plate, vented magnet structure, and vented pole piece work together with the high-temperature voice coil to enable strong power handling and durability. These features help the driver withstand intense transient power spikes, ensuring reliable performance in demanding conditions.

Specifications

  • Nominal Diameter: 8″ (203 mm)
  • Nominal impedance: 4 Ohm
  • Nominal Power Handling: 250 Watts
  • Continuous Program Power (RMS): 500 Watts
  • Max Peak Power: 1000 Watts
  • Sensitivity 2.00V at 1m: 96 dB
  • Recommended High Pass Crossover**: 85 Hz*
    **For Full Power Handling         *12db Per Octave Crossover
  • Frequency Response: 95 – 10,000 Hz
  • Voice Coil Diameter: 2.5″ (51 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 10.0 mm
  • Former Material: Kapton
  • Magnetic Gap Depth: 7.0 mm
  • Frame Material: Stamped Steel
  • Overall Diameter: 8.27″ (210 mm)
  • Front Mount Baffle Cutout: 7.18″ (182.5 mm)
  • Mounting Depth: 3.34″ (85 mm)
  • Overall Depth: 3.74″ (95 mm)
  • Net Weight: 4.16 Lbs (1.89 kg) per unit

Product Details

BrandPRV Audio
Model8MR500CF-NDY-4
Part Number294-3145
UPC619620087584
Unit of MeasurePairs
Weight10.2

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance4Ω
Frequency Response95 to 10,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)58.7Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)0.079mH
Mechanical Q (Qms)11
Electromagnetic Q (Qes)0.24
Total Q (Qts)0.23
Compliance Equivalent Volume (Vas)0.77ft³
Mechanical Compliance of Suspension (Cms)0.303mm/N
BL Product (BL)11.49T·m
Diaphragm Mass Inc. Airload (Mms)24.27g
Maximum Linear Excursion (Xmax)3.25mm
Surface Area of Cone (Sd)227cm²

Materials of Construction

Cone MaterialCarbon Fiber
Voice Coil Wire MaterialCCA
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter8.27"
Baffle Cutout Diameter7.28"
Depth3.74"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Vented Volume0.75ft³
Vented F355.6Hz
