PRV Audio 69MR500CF-NDY-4 6"x9" Neodymium Midrange Speaker Pair

PRV AudioPart # 294-3504
Model: 69MR500CF-NDY-4
13 Questions, 26 Answers or

The PRV Audio 69MR500CF‑NDY‑4 is a 6×9″ neodymium midrange speaker with a carbon fiber cone built for outdoor pro‑audio use. Engineered for water‑resistant durability, it delivers precise, low‑distortion sound in compact spaces. Ideal for boats, UTVs, motorcycles, and other powersports applications.

Key Features

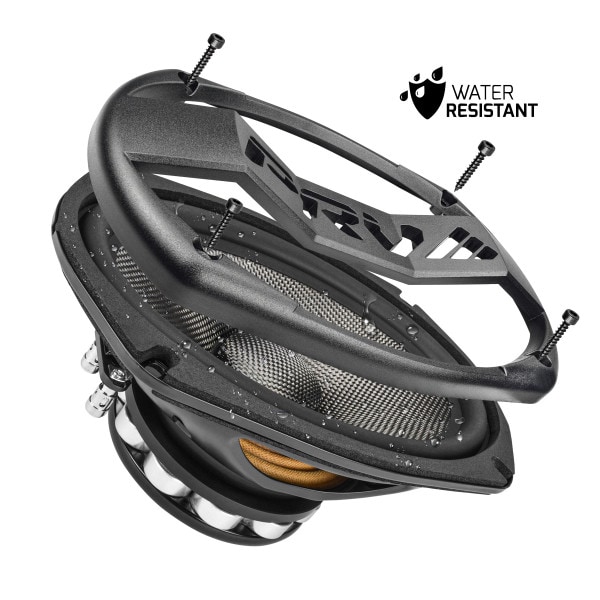

  • Water‑resistant build for reliable outdoor performance
  • Carbon fiber cone reduces weight and unwanted resonances
  • Neodymium magnet for high output in a lightweight package
  • 96 dB sensitivity offers efficient, dynamic midrange sound
  • High‑temp 2″ voice coil ensures durability under heavy use
  • Ventilated design keeps cool under power peaks
  • Sold in pairs with grilles and mounting hardware for easy install
Your Price: $299.91
+ FREE SHIPPING
MSRP: $374.89
Save $74.98 (20%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when PRV Audio 69MR500CF-NDY-4 6"x9" Neodymium Midrange Speaker Pair is back in stock or available for preorder.

Estimated back in stock 9/18/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 69MR500CF-NDY-4 6"x9" Neodymium Midrange Speaker Pair

69MR500CF-NDY-4 6"x9" Neodymium Midrange Speaker Pair

The MR500CF-NDY series was engineered for powersports applications, featuring a water-resistant design that delivers reliable performance while withstanding the challenges of outdoor environments.

Perfect for enhancing your audio system on boats, UTVs, ATVs, or motorcycles, this midrange speaker sets a new benchmark for vocal clarity in outdoor use. Built with premium components including a carbon fiber cone, high-temperature voice coil, and a powerful neodymium magnet, it delivers natural sound with impressively low distortion.

  • Water resistant with authentic pro audio midrange performance
  • Damped carbon fiber cone reduces moving mass and controls unwanted resonance
  • Low inductance design with extended frequency response
  • High-strength neodymium motor includes distortion-reducing components
  • Quick transient response with minimal coloration and impactful midbass
  • Sold in matched pairs with grille and mounting screws included

This midrange features a suspension system with a single-layer spider and premium stitched lead wires connected to a copper-clad aluminum voice coil, ensuring high efficiency and strong power handling. The voice coil is immersed in a powerful magnetic field generated by high-power neodymium radial slugs, optimizing performance.

You can count on excellent off-axis dispersion and fast transient response, delivering a wide sound stage and realistic, detailed sound from this water-resistant driver.

Built for loud, clear vocal performance in tight and compact installations, PRV Audio’s 69MR500CF-NDY-4 neodymium midrange delivers 96 dB sensitivity (2.83V/1m) while weighing just 4.16 pounds. With a 4-ohm impedance, it's engineered specifically for high-output motorsports audio systems.

Its bumped back plate, vented magnet structure, and vented pole piece work together with the high-temperature voice coil to enable strong power handling and durability. These features help the driver withstand intense transient power spikes, ensuring reliable performance in demanding conditions.

Specifications

  • Nominal Diameter: 6″x9″ (152 x 228 mm)
  • Nominal impedance: 4 Ohm
  • Nominal Power Handling: 250 Watts
  • Continuous Program Power (RMS): 500 Watts
  • Max Peak Power: 1000 Watts
  • Sensitivity 2.00V at 1m: 96 dB
  • Recommended High Pass Crossover**: 110 Hz*
    **For Full Power Handling         *12db Per Octave Crossover
  • Frequency Response: 100 – 13,000 Hz
  • Voice Coil Diameter: 2″ (50.8 mm)
  • Voice Coil Wire: CCAW
  • Former Material: Kapton
  • Frame Material: Stamped Steel

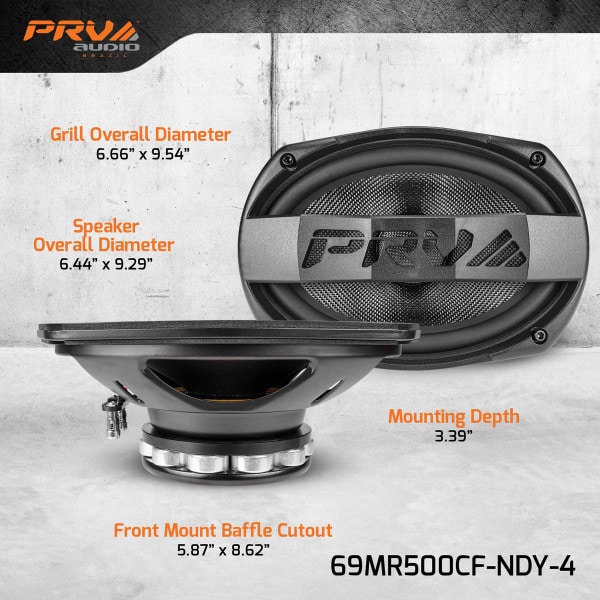

  • Overall Diameter: 6.44”x9.29″ (163.5×236 mm)
  • Front Mount Baffle Cutout: 5.87”x8.62 (149×219 mm)
  • Mounting Depth: 3.39” (86 mm)
  • Overall Depth: 3.74” (95 mm)
  • Net Weight: 3.86 Lbs (1.75 kg)

Product Details

BrandPRV Audio
Model69MR500CF-NDY-4
Part Number294-3504
UPC810075520880
Unit of MeasurePairs
Weight10

Product Specifications

Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance4Ω
Frequency Response100 to 13,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)91Hz
DC Resistance (Re)3.4Ω
Voice Coil Inductance (Le)0.05mH
Mechanical Q (Qms)15.81
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)0.316ft³
Mechanical Compliance of Suspension (Cms)0.136mm/N
BL Product (BL)10.92T·m
Diaphragm Mass Inc. Airload (Mms)22.34g
Maximum Linear Excursion (Xmax)3.25mm
Surface Area of Cone (Sd)216cm²

Materials of Construction

Cone MaterialCarbon Fiber
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Baffle Cutout Diameter5.87 x 8.62"
Depth3.39"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.06ft³
Sealed F3220Hz
Vented Volume0.157ft³
Vented F3124.7Hz
