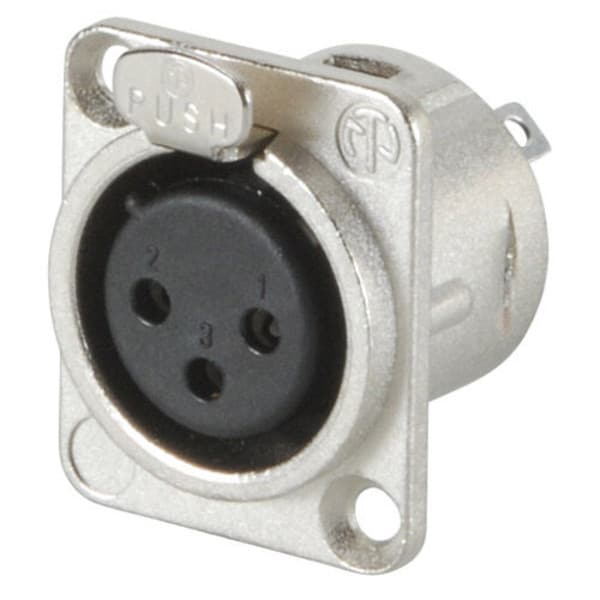

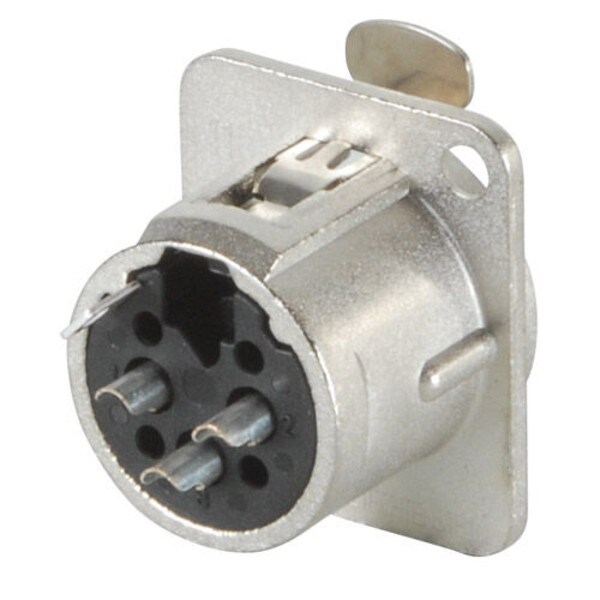

  • Neutrik NC3FD-L-1 DL Series Female Panel Mount XLR Connector Nickel

Neutrik NC3FD-L-1 DL Series Female Panel Mount XLR Connector Nickel

NeutrikPart # 092-036
Model: NC3FD-L-1

3-pole female receptacle, solder cups, Nickel housing, silver contacts.

Universal D-size metal body XLR panel mount series. UL recognized component.

Key Features

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Soldercup termination
Similar items that may interest you:
Switchcraft E3FSC 3 Pin XLR Connector Female Panel Silver Pins
Price: $5.29Part # 093-326
See all items in XLR Connectors
Your Price: $3.84
MSRP: $4.37
Save $0.53 (12%)
Bulk Pricing
324 In Stock
Get Notified When Available

We'll send you an email when Neutrik NC3FD-L-1 DL Series Female Panel Mount XLR Connector Nickel is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NC3FD-L-1 DL Series Female Panel Mount XLR Connector Nickel

The Neutrik DL Series

Universal metal body XLR series with solder cups. Unified D-size shell for male and female. Metal shell offer RF protection. Metal housing in nickel or black plating. UL recognized component.

Termination: Soldercups

Locking mechanism: Latch lock

Grounding: Separate ground contact to mating connector shell and front panel

Front or rear panel mount

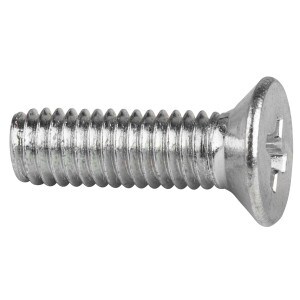

Panel fastening: Countersunk mounting holes to accept M3 bolts

Panel thickness: 1 - 3 mm

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups

Product Details

BrandNeutrik
ModelNC3FD-L-1
Part Number092-036
UPC848864000756
Unit of MeasureEach
Weight0.0625

Product Specifications

Conductors3-Pin
GenderFemale
Mounting TypeChassis / Panel Mount
