  • Neutrik NC3MD-L-B-1 DL Series Male Panel Mount XLR Connector Black

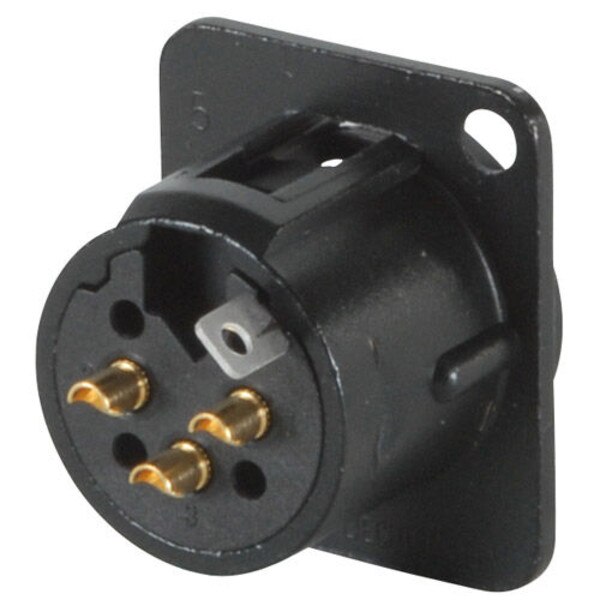

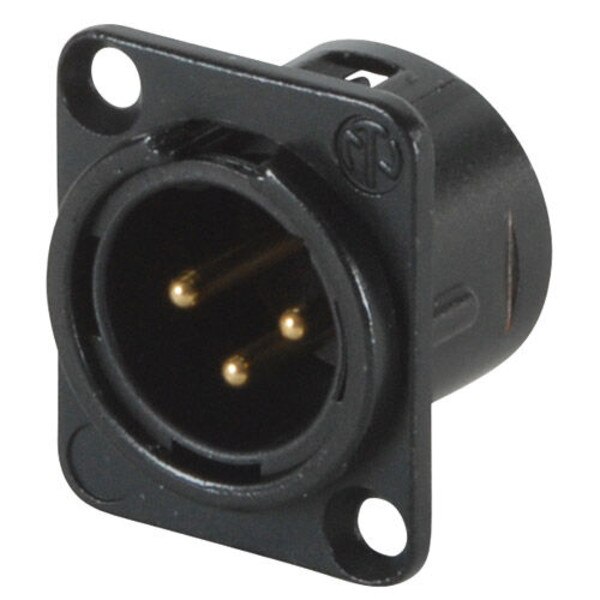

Neutrik NC3MD-L-B-1 DL Series Male Panel Mount XLR Connector Black

NeutrikPart # 092-035
Model: NC3MD-L-B-1

3 pole male receptacle, solder cups, black metal housing, gold contacts.

Universal D-size metal body XLR panel mount series. UL recognized component.

Key Features

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Soldercup termination
Similar items that may interest you:
Neutrik NC3MPP Chassis Mount Male XLR Connector Plastic "D"
Price: $1.60Part # 092-090
See all items in XLR Connectors
Your Price: $5.01
MSRP: $5.60
Save $0.59 (11%)
Bulk Pricing
229 In Stock
Get Notified When Available

We'll send you an email when Neutrik NC3MD-L-B-1 DL Series Male Panel Mount XLR Connector Black is back in stock or available for preorder.

Order in the next 0 hr 54 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NC3MD-L-B-1 DL Series Male Panel Mount XLR Connector Black

The Neutrik DL Series

Universal metal body XLR series with solder cups. Unified D-size shell for male and female. Metal shell offer RF protection. Metal housing in nickel or black plating. UL recognized component.

Termination: Soldercups

Locking mechanism: Latch lock

Grounding: Separate ground contact to mating connector shell and front panel

Front or rear panel mount

Panel fastening: Countersunk mounting holes to accept M3 bolts

Panel thickness: 1 - 3 mm

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups

Product Details

BrandNeutrik
ModelNC3MD-L-B-1
Part Number092-035
UPC703272019151
Unit of MeasureEach
Weight0.05

Product Specifications

Conductors3-Pin
GenderMale
Mounting TypeChassis / Panel Mount
