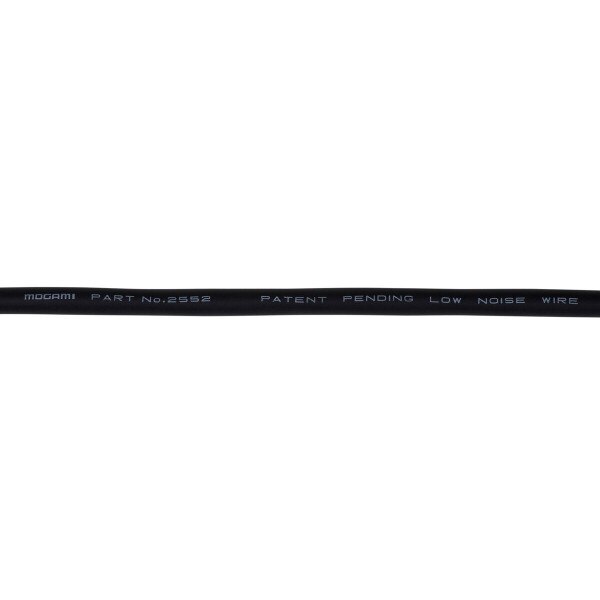

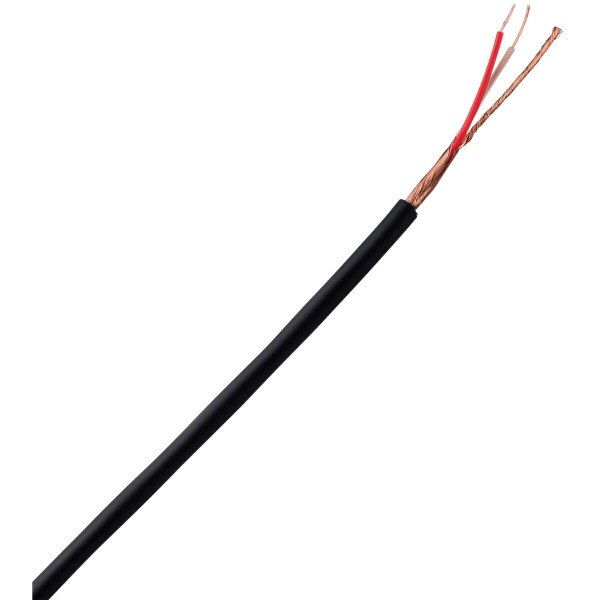

Mogami W2552 Superflexible Microphone Signal Cable 1 ft.

MogamiPart # 103-1016
Model: 2552

The Mogami W2552 is a superflexible, low-impedance balanced microphone cable optimized for custom cable builds and professional audio installs. Its durable yet pliable rubber-like jacket and quality materials make it easy to route, terminate, and perform with minimal signal loss even over long runs.

Key Features

  • Superflexible balanced microphone cable for flexible routing
  • Two conductors with overall served shield for balanced signal integrity
  • XLPE insulation minimizes heat shrinkage during soldering
  • Rubber-like PVC jacket resists abrasion and rough handling
  • Rated for 11,000 flex cycles for long-wear durability
  • Compact 5.0 mm (0.197″) outer diameter for tight spaces
  • Made in Japan
Your Price: $0.62
MSRP: $0.99
Save $0.37 (37%)
Bulk Pricing
599 In Stock
Get Notified When Available

We'll send you an email when Mogami W2552 Superflexible Microphone Signal Cable 1 ft. is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Mogami W2552 Superflexible Microphone Signal Cable 1 ft.

Mogami W2552 Superflexible Microphone Signal Cable

A specially engineered series of high-performance yet cost-effective low-impedance balanced microphone cables. Compact in size, these cables use a rubber-like PVC jacket that is highly flexible and offers strong resistance to abrasion and rough handling. The high-grade insulation is designed to reduce heat shrinkage during soldering, allowing for easy termination to XLR-style connectors.

This cable is exceptionally soft and flexible, making it suitable for a wide range of audio, visual, and industrial audio applications. XLPE insulation combined with a durable rubber-like outer jacket makes it an ideal choice when a tough, economical cable is required.

Part No. W2552

  • O.D. (mm): 5.0ø (0.197")
  • Flex Life: 11,000 cycles
  • Tensile Strength: 421 N

Specifications

  • Configuration:
  • No. of Conductors: 2
  • Conductor
    -Details: 12/0.12 A
    -Size(mm²): 0.135mm² (#26 AWG)
  • Insulation
    -Ov. Dia.(mm): 1.5Ø (0.059")
    -Material: LNXLPE (Low Noise Cross-Linked Polyethylene)
    -Colors: Red / Clear
  • Shield: Served: Approx. 67/0.12A
  • Jacket
    -Ov. Dia.(mm): 5.0Ø (0.197")
    -Material: Flexible PVC
    -Color: Black

Electrical and Mechanical Characteristics

  • DC Resistance at 20°C
    -Inner Cond.: 0.14W/m(0.043W/Ft)
    -Shield: 0.024Ω/m(0.007Ω/Ft)
  • Capacitance at 1kHz, 20°C (Partial C. Value)
    See below figure*
    K₀: 90pF/m(27pF/Ft)
    K₁: 10pF/m(3pF/Ft)
  • Inductance between conductors at 1kHz. 20°C: 0.8µH/m(0.24µH/Ft)
  • Electrostatic Noise**: 50mV Max.
  • Electromagnetic Noise**: 0.15mV Max.
  • Microphonics at 50kΩ Load**: 30m V Max.
  • Voltage Breakdown: Must withstand at DC 500V/15sec.
  • Insulation Resistance: 100000 MW × m Min. at DC 125V, 20°C
  • Flex Life**: 11,000 cycles
  • Tensile Strength: 421N
  • Emigration: Non-emigrant to ABS
  • Applicable Temperature: -20°C‾ +70°C(-4°F‾ +158°F)

    • ** Using standard testing methods of Mogami Wire & Cable Corp.

    * Partial Capacitance

Product Details

BrandMogami
Model2552
Part Number103-1016
UPC848864028729
Unit of MeasureFeet
Weight0.1

Product Specifications

Jacket ColorBlack
Wire Gauge26
