Mogami W2549 Neglex Long Run Microphone Signal Cable 1 ft.

MogamiPart # 103-1012
Model: 2549

Mogami W2549 Neglex Long Run Balanced Microphone Cable is a high-quality, bulk microphone cable built with Mogami’s renowned Neglex oxygen-free copper conductors for clean, reliable signal transmission. Ideal for long cable runs where extended high-frequency response and noise rejection are critical, such as in studios, live sound, or broadcast environments.

Key Features

  • 22 AWG Neglex oxygen-free copper conductors for consistent audio quality
  • 100% coverage served shield for strong noise rejection
  • Twisted pair construction reduces electromagnetic interference
  • Extremely low capacitance supports extended high-frequency transmission
  • Flexible PVC jacket for easy handling and routing
  • Recommended for long runs where signal integrity matters
  • Made in Japan
Similar items that may interest you:
Mogami W2552 Superflexible Microphone Signal Cable 1 ft.
Price: $0.62Part # 103-1016
See all items in Microphone Cable & Signal Cable
Your Price: $1.16
MSRP: $1.99
Save $0.83 (42%)
Bulk Pricing
994 In Stock
Get Notified When Available

We'll send you an email when Mogami W2549 Neglex Long Run Microphone Signal Cable 1 ft. is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Mogami W2549 Neglex Long Run Microphone Signal Cable 1 ft.

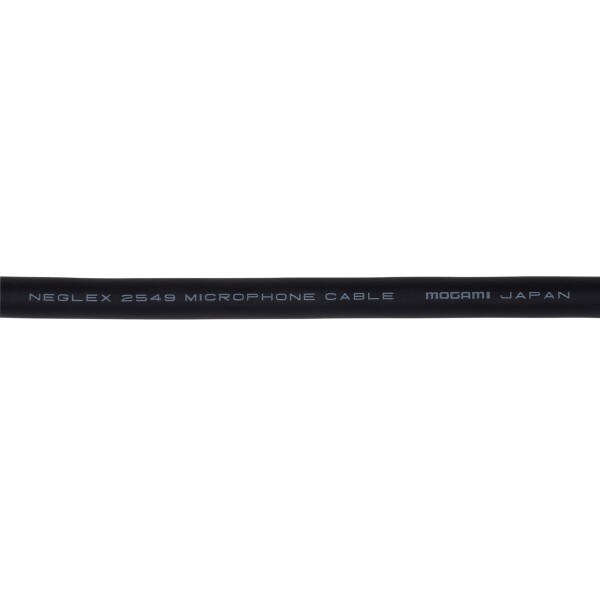

Mogami W2549 Neglex Long Run Microphone Signal Cable

The W2549 is engineered using Mogami's well-known Neglex OFC to deliver the highest level of audio fidelity for recording applications. It uses #22AWG conductors and offers extremely low capacitance. A twisted pair design with 100% coverage served shielding provides excellent rejection of electromagnetic interference. This cable is recommended for applications where extended high-frequency response is critical or where longer cable runs are required.

Part No. W2549

  • Conductor Size (mm²): 0.339mm² (#22AWG)
  • O.D. (mm): 6.0ø (0.236")
  • Flex Life: 14,500 cycles
  • Tensile Strength: 657 N

Specifications

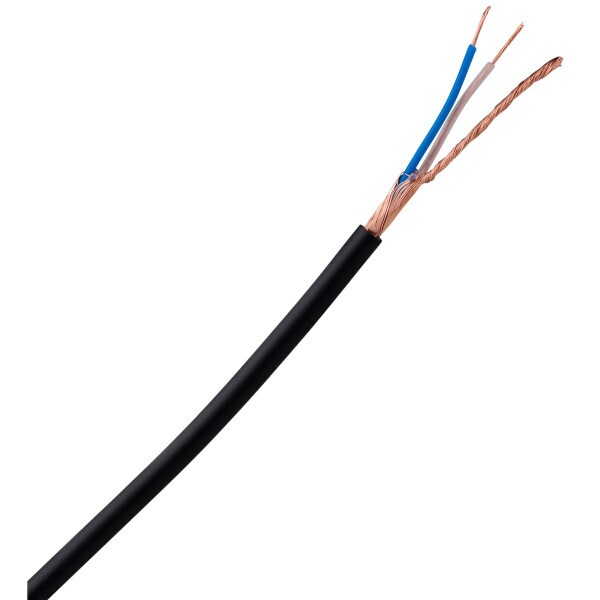

  • Configuration:
  • No. of Conductors: 2
  • Conductor
    -Details: 30/0.12 OFC
    -Size(mm²): 0.339mm² (#22 AWG)
  • Insulation
    -Ov. Dia.(mm): 1.9Ø (0.075")
    -Material: XLPE (Cross-Linked Polyethylene)
    -Colors: Blue / Clear
  • Shield: Served Approx. 64/0.18A
  • Jacket
    -Ov. Dia.(mm): 6.0Ø (0.236")
    -Material: Flexible
    -Color: Black

Electrical and Mechanical Characteristics

  • DC Resistance at 20°C
    -Inner Cond.: 0.058Ω/m(0.018Ω/Ft)
    -Shield: 0.013Ω/m(0.004Ω/Ft)
  • Capacitance at 1kHz, 20°C (Partial C. Value)
    See below figure*
    K₀: 76pF/m(23pF/Ft)
    K₁: 11pF/m(3.4pF/Ft)
  • Inductance between conductors at 1kHz. 20°C: 0.8µH/m(0.24µH/Ft)
  • Electrostatic Noise**: 50mV Max.
  • Electromagnetic Noise**: 0.15mV Max.
  • Microphonics at 50kΩ Load**: 30m V Max.
  • Voltage Breakdown: Must withstand at DC 125V/15sec.
  • Insulation Resistance: 100000 M Ω × m Min. at DC 125V, 20°C
  • Flex Life**: 14,500 cycles
  • Tensile Strength: 657N
  • Emigration: Non-emigrant to ABS
  • Applicable Temperature: -20°C‾ +70°C(-4°F‾ +158°F)

    • ** Using standard testing methods of Mogami Wire & Cable Corp.

    * Partial Capacitance

Product Details

BrandMogami
Model2549
Part Number103-1012
UPC848864028712
Unit of MeasureFeet
Weight0.12

Product Specifications

Jacket ColorBlack
Wire Gauge22
