Mogami W2552 Superflexible Microphone Signal Cable 164 ft. (50m)

MogamiPart # 103-1017
Model: 2552

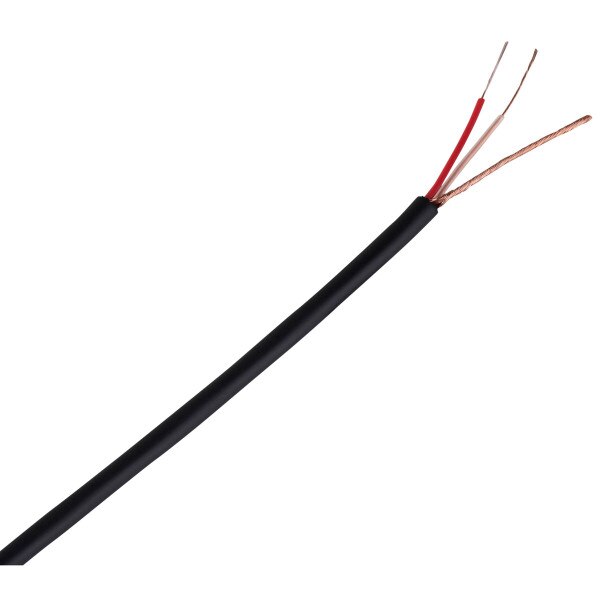

W2552 microphone cable by Mogami is designed to preserve your signal while rejecting noise. 2552 is an economical choice that is extremely flexible, and smaller in diameter than many mic cables. Two 25 AWG conductors plus a served (spiral) copper shield are covered by a 0.197" PVC jacket which is rugged enough for the road, but very easy to work with.

Key Features

  • Superflexible balanced microphone cable for flexible routing
  • Two conductors with overall served shield for balanced signal integrity
  • XLPE insulation minimizes heat shrinkage during soldering
  • Rubber-like PVC jacket resists abrasion and rough handling
  • Rated for 11,000 flex cycles for long-wear durability
  • Compact 5.0 mm (0.197″) outer diameter for tight spaces
  • Made in Japan
Similar items that may interest you:
Mogami W2549 Neglex Long Run Microphone Signal Cable 164 ft. (50m)
Price: $153.98Part # 103-1013
See all items in Microphone Cable & Signal Cable
Your Price: $82.98
MSRP: $112.99
Save $30.01 (27%)
Bulk Pricing
8 In Stock
Get Notified When Available

We'll send you an email when Mogami W2552 Superflexible Microphone Signal Cable 164 ft. (50m) is back in stock or available for preorder.

Order in the next 11 hr 58 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Mogami W2552 Superflexible Microphone Signal Cable 164 ft. (50m)

Mogami W2552 Superflexible Microphone Signal Cable

A specially engineered series of high-performance yet cost-effective low-impedance balanced microphone cables. Compact in size, these cables use a rubber-like PVC jacket that is highly flexible and offers strong resistance to abrasion and rough handling. The high-grade insulation is designed to reduce heat shrinkage during soldering, allowing for easy termination to XLR-style connectors.

This cable is exceptionally soft and flexible, making it suitable for a wide range of audio, visual, and industrial audio applications. XLPE insulation combined with a durable rubber-like outer jacket makes it an ideal choice when a tough, economical cable is required.

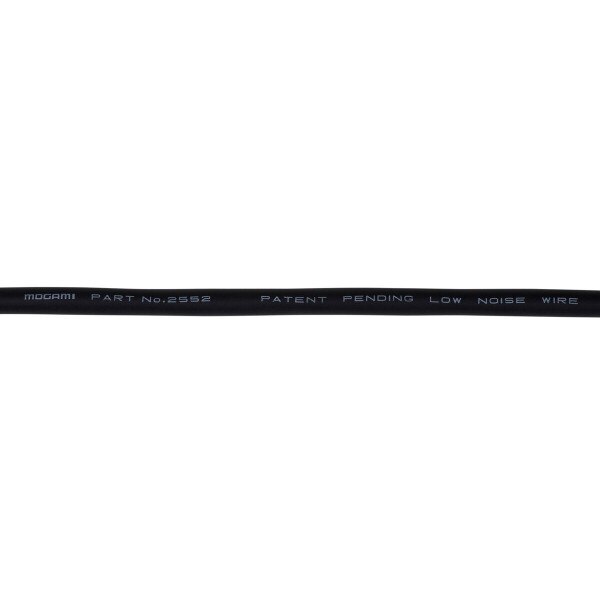

Part No. W2552

  • O.D. (mm): 5.0ø (0.197")
  • Flex Life: 11,000 cycles
  • Tensile Strength: 421 N

Specifications

  • Configuration:
  • No. of Conductors: 2
  • Conductor
    -Details: 12/0.12 A
    -Size(mm²): 0.135mm² (#26 AWG)
  • Insulation
    -Ov. Dia.(mm): 1.5Ø (0.059")
    -Material: LNXLPE (Low Noise Cross-Linked Polyethylene)
    -Colors: Red / Clear
  • Shield: Served: Approx. 67/0.12A
  • Jacket
    -Ov. Dia.(mm): 5.0Ø (0.197")
    -Material: Flexible PVC
    -Color: Black

Electrical and Mechanical Characteristics

  • DC Resistance at 20°C
    -Inner Cond.: 0.14W/m(0.043W/Ft)
    -Shield: 0.024Ω/m(0.007Ω/Ft)
  • Capacitance at 1kHz, 20°C (Partial C. Value)
    See below figure*
    K₀: 90pF/m(27pF/Ft)
    K₁: 10pF/m(3pF/Ft)
  • Inductance between conductors at 1kHz. 20°C: 0.8µH/m(0.24µH/Ft)
  • Electrostatic Noise**: 50mV Max.
  • Electromagnetic Noise**: 0.15mV Max.
  • Microphonics at 50kΩ Load**: 30m V Max.
  • Voltage Breakdown: Must withstand at DC 500V/15sec.
  • Insulation Resistance: 100000 MW × m Min. at DC 125V, 20°C
  • Flex Life**: 11,000 cycles
  • Tensile Strength: 421N
  • Emigration: Non-emigrant to ABS
  • Applicable Temperature: -20°C‾ +70°C(-4°F‾ +158°F)

    • ** Using standard testing methods of Mogami Wire & Cable Corp.

    * Partial Capacitance
