  • Mogami W2524 High Impedance 20 AWG Guitar Instrument Signal Cable 1 ft.

Mogami W2524 High Impedance 20 AWG Guitar Instrument Signal Cable 1 ft.

MogamiPart # 103-1004
Model: 2524

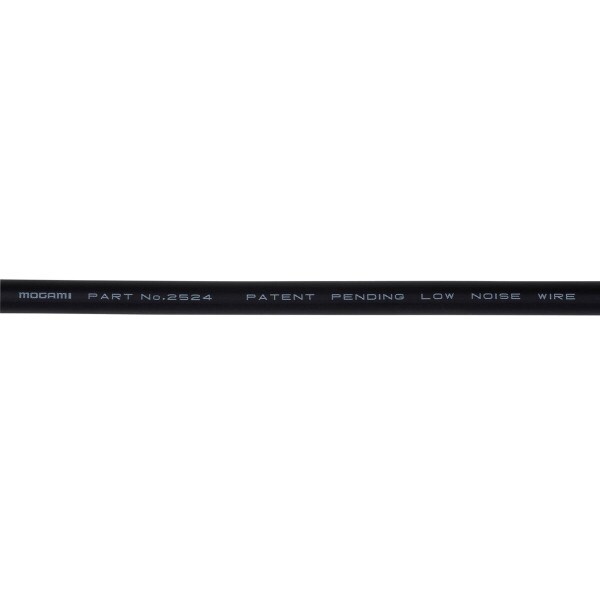

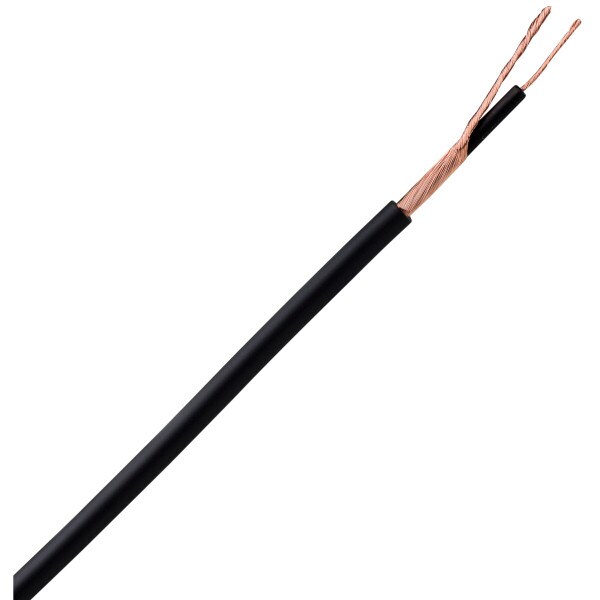

The W2524 guitar and instrument cable by Mogami is designed to preserve your tone, while rejecting interference and microphonics. A 20 AWG center conductor is sheathed in polyethylene insulation, then a conductive PVC sub-insulation, and finally covered in spiral shield and 0.236" PVC jacket for maximum clarity, flexibility, and durability.

Key Features

  • Conductive PVC sub-shield drains microphonic noise caused by cable movement
  • Single 0.56 mm² center conductor for consistent signal transfer
  • Braided served shield provides effective noise rejection
  • Designed for high-impedance, voltage-driven instrument pickups
  • Flexible PVC jacket suited for frequent handling and routing
  • Designed to reduce handling noise in live performance and recording applications
  • Made in Japan
Similar items that may interest you:
Mogami W2319 High Impedance 23 AWG Guitar Instrument Signal Cable 1 ft.
Price: $0.62Part # 103-1000
See all items in Guitar Cable & Instrument Cable
Your Price: $1.30
MSRP: $1.99
Save $0.69 (35%)
Bulk Pricing
647 In Stock
Get Notified When Available

We'll send you an email when Mogami W2524 High Impedance 20 AWG Guitar Instrument Signal Cable 1 ft. is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Mogami W2524 High Impedance 20 AWG Guitar Instrument Signal Cable 1 ft.

Mogami W2524 High Impedance 20 AWG Guitar Instrument Signal Cable

Most musical instrument pickups, such as those used in electric guitars, rely on high-impedance circuits that are primarily voltage driven, with very little current flow. Because of this, handling noise, also known as microphonics, can be an issue with guitar cables. Microphonic noise occurs when small voltages are generated as the cable is bent, stepped on, or moved. To reduce this effect, guitar cables are designed with a conductive PVC layer beneath the shield to dissipate these unwanted voltages. Note: This conductive layer must be trimmed back during termination, as leaving it in place can cause a partial short.

Specifications

  • Configuration
  • Conductor
    -Details: 50/0.12A
    -Size(mm²): 0.565mm² (#20AWG)
  • Insulation
    -Ov. Dia.(mm): 2.7Ø (0.106")
    -Material: PE
    -Color: Clear
  • Sub-Shield
    -Ov. Dia.(mm): 3.3Ø (0.130")
    -Material: Conductive PVC (Carbon PVC)
    -Color: Black
  • Main-Shield
    -Served-Shield: Approx. 55/0.18A
  • Jacket
    -Ov. Dia.(mm): 6.0Ø (0.236")
    -Material: PVC
    -Color: Black

Electrical & Mechanical Characteristics

  • DC Resistance at 20°C
    -Inner Conductor: 0.033Ω/m(0.010Ω/Ft)
    -Shield Conductor: 0.014Ω/m(0.0043Ω/Ft)
  • Capacitance at 1kHz, 20°C: 130pF/m (39.7pF/Ft)
  • Inductance: 0.2µH/m (0.061µH/Ft)
  • Electrostatic Noise*: 0.15mV Max.
  • Electromagnetic Noise: At 10kHz* 0.07mV Max.
  • Microphonics*: 0.3mV Max
  • Voltage Breakdown: Must withstand at DC 500V/15sec.
  • Insulation Resistance: 100000 MΩ × m Min. at DC 500V , 20°C
  • Flex Life: 15,000 cycles
  • Tensile Strength: (26°C, 65%RH) 578 N
  • Emigration: Non-emigrant to ABS resin
  • Applicable Temperature: -20°C‾ +60°C(-4°F‾ +140°F)

Product Details

BrandMogami
Model2524
Part Number103-1004
UPC848864028699
Unit of MeasureFeet
Weight0.12

Product Specifications

Jacket ColorBlack
