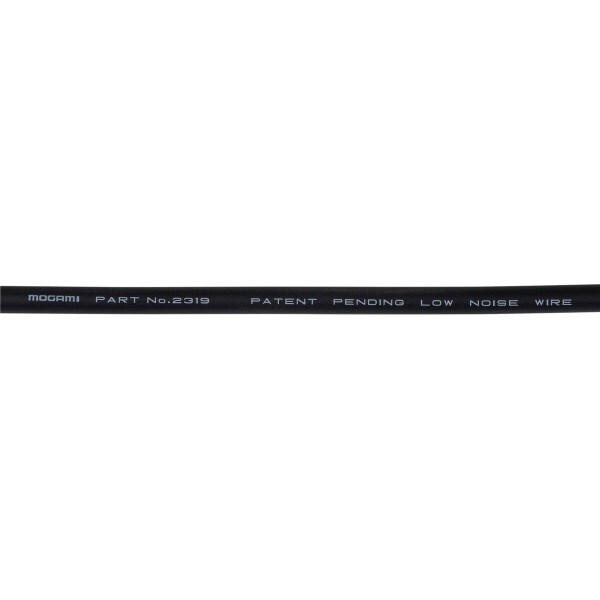

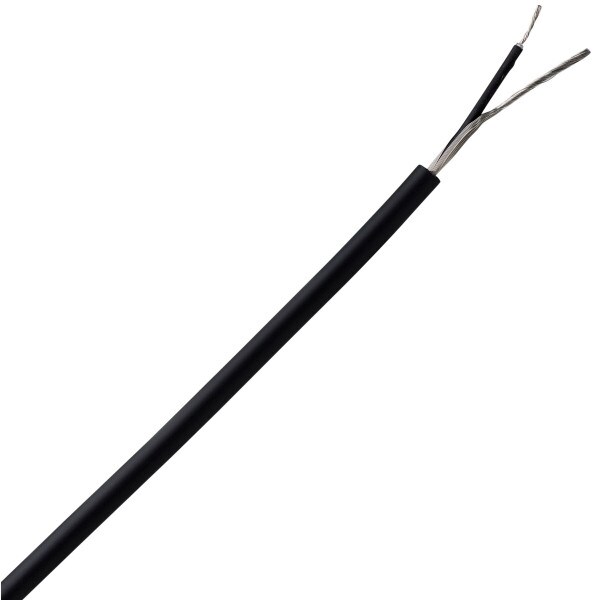

Mogami W2319 High Impedance 23 AWG Guitar Instrument Signal Cable 1 ft.

MogamiPart # 103-1000
Model: 2319

The Mogami W2319 is a high-impedance unbalanced instrument cable core designed for instruments, pedalboards, and other short-run audio connections where clarity and flexibility matter. Its construction addresses common instrument-circuit noise issues by including a conductive sub-shield layer and quality shielding.

Key Features

  • Unbalanced cable suited for instrument and pedalboard use
  • Single 23 AWG conductor for reliable signal transfer
  • Conductive PVC sub-shield layer to help drain microphonic noise
  • Served shield provides noise rejection in high-impedance circuits
  • Flexible PVC jacket for routing in tight pedalboard or studio layouts
  • Designed to minimize handling-induced noise in instrument cabling
  • Made in Japan
Similar items that may interest you:
Mogami W2524 High Impedance 20 AWG Guitar Instrument Signal Cable 1 ft.
Price: $1.30Part # 103-1004
See all items in Guitar Cable & Instrument Cable
Your Price: $0.62
MSRP: $0.99
Save $0.37 (37%)
Bulk Pricing
393 In Stock
Get Notified When Available

We'll send you an email when Mogami W2319 High Impedance 23 AWG Guitar Instrument Signal Cable 1 ft. is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Mogami W2319 High Impedance 23 AWG Guitar Instrument Signal Cable 1 ft.

Mogami W2319 High Impedance 23 AWG Guitar Instrument Signal Cable

Most musical instrument sound pick-ups, for example those in electric guitars, are comprised of high impedance circuits driven mainly by voltage, with very little electrical current flow. That is why handling noise (microphonics) can be a problem for guitar cables. Microphonic noise is caused by the minute voltage generated when a cable is flexed, stepped on, etc. Guitar cables must be designed to prevent this, so a conductive PVC layer is placed under the shield conductor to drain away this voltage. Note: This conductive layer must be stripped back when wiring, or a partial short will result.

Specifications

  • Configuration
  • Conductor
    -Details: 12/0.18TA
    -Size(mm²): 0.305mm² (#23AWG)
  • Insulation
    -Ov. Dia.(mm): 1.6Ø (0.063")
    -Material: PE
    -Color: Clear
  • Sub Shield
    -Ov. Dia.(mm): 1.8Ø (0.071")
    -Material: Conductive PVC (Carbon PVC)
    -Color: Black
  • Main Shield
    -Served Shield: Approx. 38/0.16TA
  • Jacket
  • -Ov. Dia.(mm): 5.0Ø (0.197")
    -Material: PVC
    -Color: Black

Electrical & Mechanical Characteristics

  • DC Resistance at 20°C
    -Inner Conductor: 0.064Ω/m(0.020W/Ft)
    -Shield Conductor: 0.026Ω/m(0.0079Ω/Ft)
  • Capacitance at 1kHz, 20°C: 155pF/m (47.3pF/Ft)
  • Inductance: 0.3µH/m (0.092µH/Ft)
  • Electrostatic Noise*: 0.13mV Max.
  • Electromagnetic Noise At 10kHz*: 0.07mV Max.
  • Microphonic: 0.3mV Max
  • Voltage Breakdown: Must withstand at DC 500V/15sec.
  • Insulation Resistance: 100000 MΩ × m Min. at DC 500V , 20°C
  • Flex Life: 11,000 cycles
  • Tensile Strength: 303 N
  • Emigration: Non-emigrant to ABS resin
  • Applicable Temperature: --20°C‾ +60°C(-4°F‾ +140°F)

    • *Using standard testing methods of Mogami Wire & Cable Corp.
