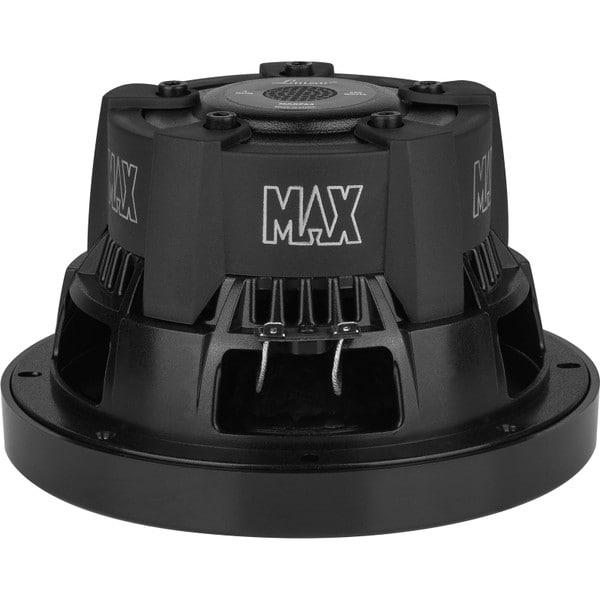

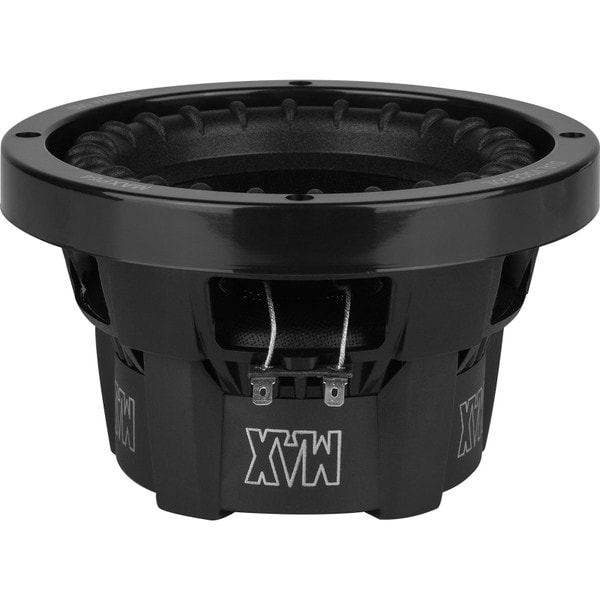

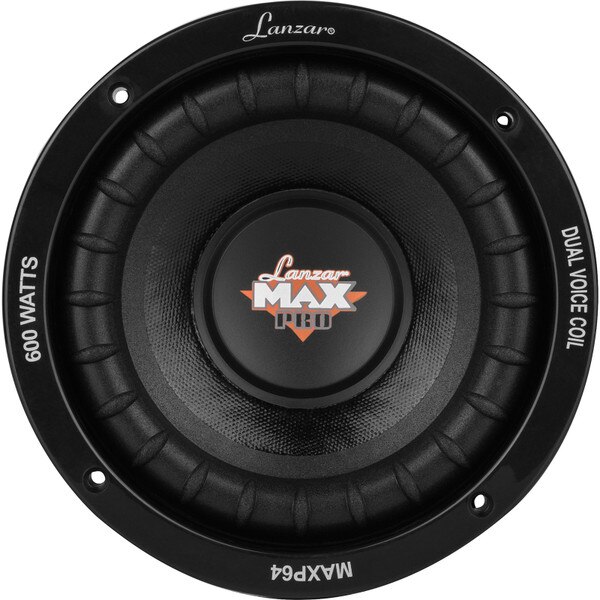

Lanzar's MAXP64 is a 6.5" high powered subwoofer with non-press paper cone and specially treated foam edge suspension. Features a 1.5" high temperature aluminum voice coil. Rubber magnet boot cover.
Specifications: • Impedance: 4 ohm • Fs: 80 Hz • Qms: 4.05 • Qes: 1.3 • Qts: 1.2 • SPL: 87 dB • Vas: 6.8 cu. ft. • Magnet weight: 40 oz. • Mounting depth: 3".
Product Details | |
|---|---|
| Brand | Lanzar |
| Model | MAXP64 |
| Part Number | 292-2590 |
| UPC | 068888891660 |
| Unit of Measure | Each |
| Weight | 3.87 |
Product Specifications | |
|---|---|
| Nominal Diameter | 6-1/2" |
| Power Handling (RMS) | 300 Watts |
| Power Handling (MAX) | 600 Watts |
| Impedance | 4Ω |
| Sensitivity | 87dB 2.83V/1m |
| Voice Coil Diameter | 1.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 80Hz |
| Mechanical Q (Qms) | 4.05 |
| Electromagnetic Q (Qes) | 1.3 |
| Total Q (Qts) | 1.2 |
| Compliance Equivalent Volume (Vas) | 6.8ft³ |
Materials of Construction | |
|---|---|
| Cone Material | Coated Paper |
| Surround Material | Foam |
| Voice Coil Wire Material | Aluminum |
| Basket / Frame Material | Polymer |
Mounting Information | |
|---|---|
| Depth | 3" |
| # Mounting Holes | 8 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.75ft³ |
| Sealed F3 | 168.6Hz |
