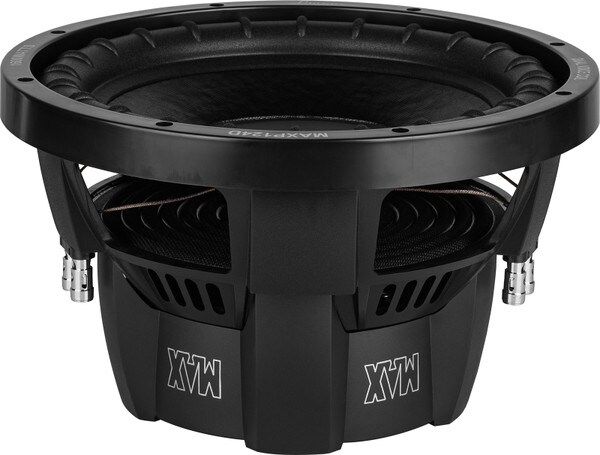

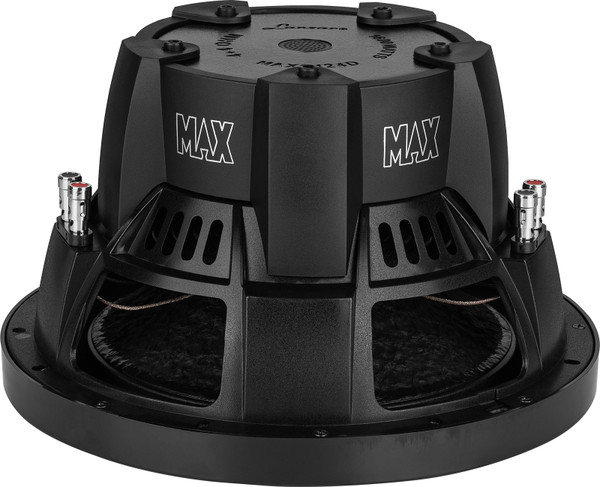

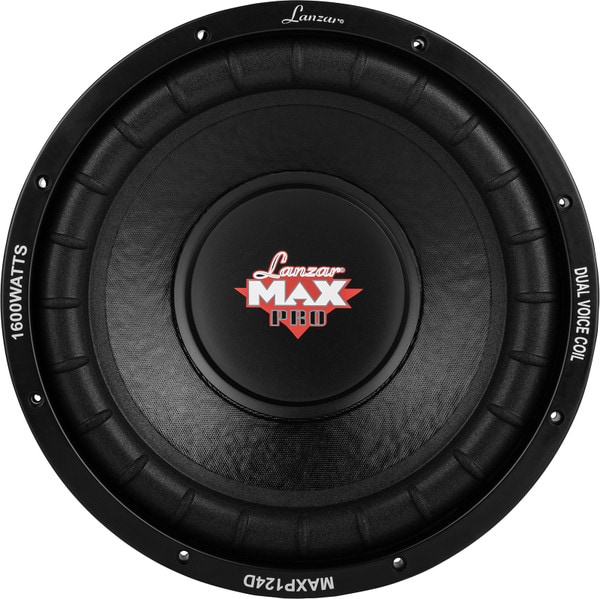

Lanzar's MAXP124D 12" woofer with 1,600 watts peak power, has a specially treated foam edge suspension and 2" dual layer high temperature Kapton voice coil. Features a black non-pressed paper cone, bumped vented motor structure, and a reinforced polymer basket with hex key input terminal. Custom designed rubber magnet boot. Heavy double stacked magnet structure, 80 + 80 oz.
Product Details | |
|---|---|
| Brand | Lanzar |
| Model | MAXP124D |
| Part Number | 292-2588 |
| UPC | 068888877466 |
| Unit of Measure | Each |
| Weight | 17.05 |
Product Specifications | |
|---|---|
| Nominal Diameter | 12" |
| Power Handling (RMS) | 800 Watts |
| Power Handling (MAX) | 1600 Watts |
| Impedance | 8Ω |
| Sensitivity | 84dB 2.83V/1m |
| Voice Coil Diameter | 2" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 40Hz |
| Mechanical Q (Qms) | 5 |
| Electromagnetic Q (Qes) | 0.9 |
| Total Q (Qts) | 0.75 |
| Compliance Equivalent Volume (Vas) | 5.2ft³ |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Foam |
| Voice Coil Former | Kapton® / Polyimide |
| Basket / Frame Material | Polymer |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 12.8" |
| Baffle Cutout Diameter | 11.2" |
| Depth | 6.76" |
| # Mounting Holes | 8 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 2ft³ |
| Sealed F3 | 56.4Hz |
| Vented Volume | 3ft³ |
| Vented F3 | 42.8Hz |
