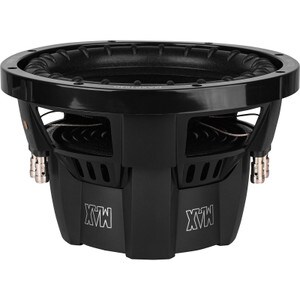

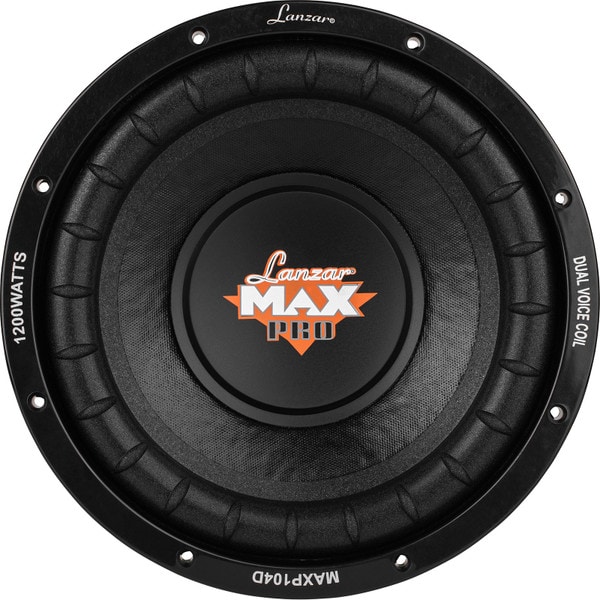

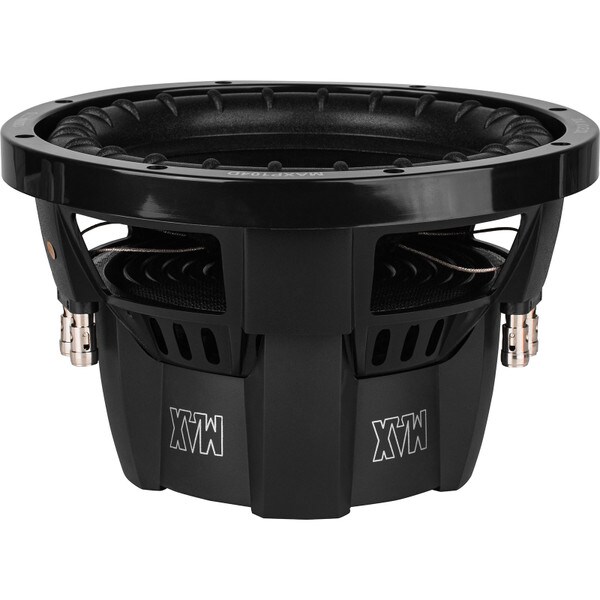

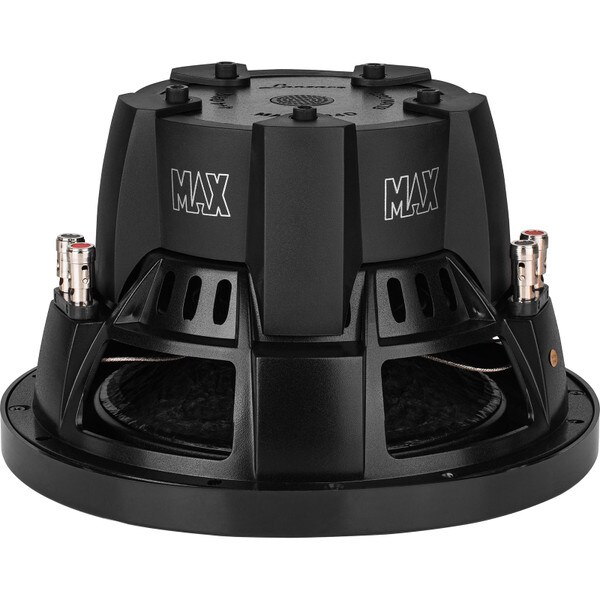

Lanzar MAXP104D 10" 1200 Watt DVC Subwoofer

LanzarPart # 292-2586
Model: MAXP104D
The MAXP104D has a specially treated foam edge suspension and 2" dual layer high temperature Kapton voice coil. Features a reinforced polymer basket with spring loaded push button input terminals.

Key Features

  • Black non-pressed paper cone
  • Bumped vented motor structure
  • Custom designed rubber magnet boot
  • 60 + 60 oz. heavy double stacked magnet structure
Your Price: $67.05
MSRP: $82.99
Save $15.94 (19%)
Bulk Pricing
Only 2 In Stock More due any day
Get Notified When Available

We'll send you an email when Lanzar MAXP104D 10" 1200 Watt DVC Subwoofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Lanzar MAXP104D 10" 1200 Watt DVC Subwoofer

The MAXP104D has a specially treated foam edge suspension and 2" dual layer high temperature Kapton voice coil. Features a reinforced polymer basket with spring loaded push button input terminals.

Product Details

BrandLanzar
ModelMAXP104D
Part Number292-2586
UPC068888877459
Unit of MeasureEach
Weight12.55

Product Specifications

Nominal Diameter10"
Power Handling (RMS)400 Watts
Power Handling (MAX)1200 Watts
Impedance
Sensitivity85dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)50Hz
Mechanical Q (Qms)4.92
Electromagnetic Q (Qes)0.84
Total Q (Qts)0.72
Compliance Equivalent Volume (Vas)4.91ft³

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialPolymer
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.6"
Baffle Cutout Diameter9.3"
Depth6.5"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F376.1Hz
