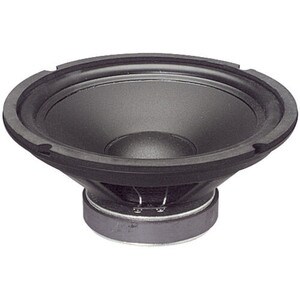

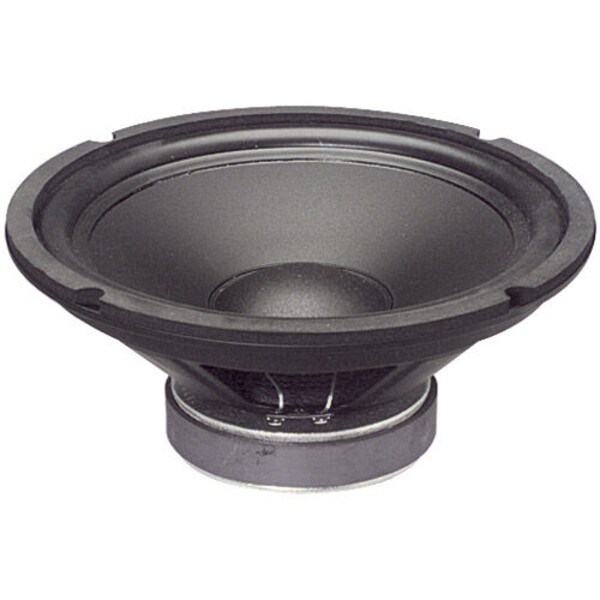

Goldwood GW-1034 10" Butyl Surround Woofer 4 Ohm

Name: Goldwood GW-1034 10" Butyl Surround Woofer 4 Ohm
Brand: Goldwood
SKU: 290-361
Price: 63.98 USD
Availability: InStock
Rating: 4.8 (28 reviews)

GoldwoodPart # 290-361

Model: GW-1034

Read 28 Reviews | 141 Questions, 267 Answers or

6-1/2 in. 8 ohm 6-1/2 in. 4 ohm 8 in. 8 ohm 8 in. 4 ohm 10 in. 8 ohm 10 in. 4 ohm 12 in. 8 ohm 12 in. 4 ohm

These woofers are ideal for replacing and upgrading old, worn out drivers. They all feature a polypropylene cone, vented pole piece, foam gasket, soft poly dust cap, and stamped steel frame.

Product Details

Brand

Goldwood

Model

GW-1034

Part Number

290-361

UPC

643420100310

Unit of Measure

Each

Weight

5.72

Product Specifications

Nominal Diameter

10"

Power Handling (RMS)

130 Watts

Power Handling (MAX)

250 Watts

Impedance

4Ω

Frequency Response

30 to 2,000Hz

Sensitivity

90.1dB 2.83V/1m

Voice Coil Diameter

1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)

34.3Hz

DC Resistance (Re)

3.5Ω

Voice Coil Inductance (Le)

0.4mH

Mechanical Q (Qms)

4.39

Electromagnetic Q (Qes)

1.1

Total Q (Qts)

0.88

Compliance Equivalent Volume (Vas)

2.87ft³

Mechanical Compliance of Suspension (Cms)

0.46mm/N

BL Product (BL)

5.69T·m

Diaphragm Mass Inc. Airload (Mms)

47g

Maximum Linear Excursion (Xmax)

2.5mm

Surface Area of Cone (Sd)

355.4cm²

Materials of Construction

Cone Material

Poly

Surround Material

Rubber

Basket / Frame Material

Steel

Magnet Material

Ferrite

Mounting Information

Overall Outside Diameter

10"

Baffle Cutout Diameter

9.125"

Depth

4.5"

# Mounting Holes

Parts Express Staff Recommended Enclosure Volume

Sealed Volume

1.5ft³

Sealed F3

43.3Hz
