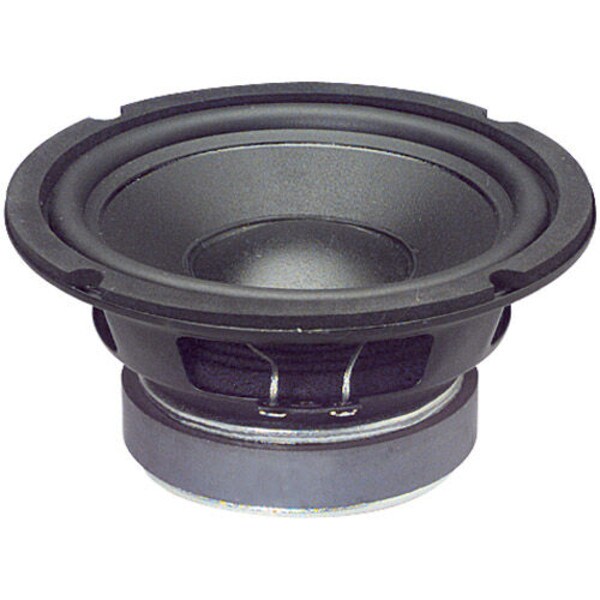

Goldwood GW-6024 6-1/2" Butyl Surround Woofer 4 Ohm

GoldwoodPart # 290-351
Model: GW-6024
These woofers are ideal for replacing and upgrading old, worn out drivers. They all feature a polypropylene cone, vented pole piece, foam gasket, soft poly dust cap, and stamped steel frame.
Your Price: $27.98
MSRP: $45.99
Save $18.01 (39%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Goldwood GW-6024 6-1/2" Butyl Surround Woofer 4 Ohm is back in stock or available for preorder.

Order in the next 4 hr 28 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Goldwood GW-6024 6-1/2" Butyl Surround Woofer 4 Ohm

Butyl rubber surrounds are superior to foam in two important ways. First, the butyl rubber resists moisture and will not dry rot, providing years of service. Second, the rubber surround, due to its superior damping characteristics will greatly reduce cone break up and ensure low distortion. These woofers are ideal for replacing and upgrading old, worn out drivers. They all feature a polypropylene cone, vented pole piece, foam gasket, soft poly dust cap, and stamped steel frame.

Product Details

BrandGoldwood
ModelGW-6024
Part Number290-351
UPC643420100273
Unit of MeasureEach
Weight3.3

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)90 Watts
Power Handling (MAX)170 Watts
Impedance4Ω
Frequency Response29 to 4,800Hz
Sensitivity89.5dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)53.7Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)3.05
Electromagnetic Q (Qes)0.71
Total Q (Qts)0.57
Compliance Equivalent Volume (Vas)0.42ft³
Mechanical Compliance of Suspension (Cms)0.46mm/N
BL Product (BL)5.72T·m
Diaphragm Mass Inc. Airload (Mms)19.1g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)136.35cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.5"
Baffle Cutout Diameter5.625"
Depth3.25"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.45ft³
Sealed F374.8Hz
Vented Volume0.9ft³
Vented F343.5Hz
