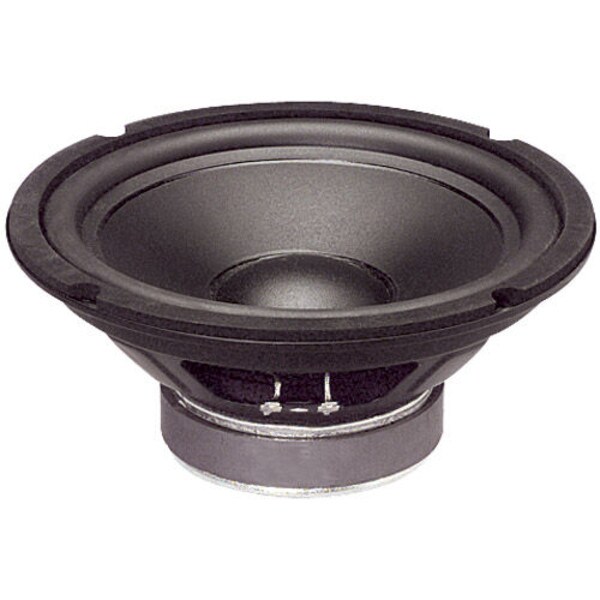

Goldwood GW-8028 8" Butyl Surround Woofer 8 Ohm

GoldwoodPart # 290-355
Model: GW-8028
Goldwood's GW-8028 8" driver is an ideal woofer for replacing and upgrading old, worn out drivers. They all feature a polypropylene cone, vented pole piece, foam gasket, soft poly dust cap, and stamped steel frame.

Key Features

  • Polypropylene cone and rubber surround resist fatigue
  • Designed for optimum response in sealed enclosures and free air use
  • Vented pole piece for reduced compression noise
Your Price: $41.98
MSRP: $54.99
Save $13.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $41.98/ea
Quantity:Qty: 4-9 $40.03/ea
Quantity:Qty: 10+ $38.08/ea
In Stock
Get Notified When Available

We'll send you an email when Goldwood GW-8028 8" Butyl Surround Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Goldwood GW-8028 8" Butyl Surround Woofer 8 Ohm

Butyl rubber surrounds are superior to foam in two important ways. First, the butyl rubber resists moisture and will not dry rot, providing years of service. Second, the rubber surround, due to its superior damping characteristics will greatly reduce cone break up and ensure low distortion. These woofers are ideal for replacing and upgrading old, worn out drivers. They all feature a polypropylene cone, vented pole piece, foam gasket, soft poly dust cap, and stamped steel frame.

Product Details

BrandGoldwood
ModelGW-8028
Part Number290-355
UPC643420100303
Unit of MeasureEach
Weight3.45

Product Specifications

Nominal Diameter8"
Power Handling (RMS)100 Watts
Power Handling (MAX)190 Watts
Impedance8Ω
Frequency Response25 to 6,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)36Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)3.9
Electromagnetic Q (Qes)1.21
Total Q (Qts)0.92
Compliance Equivalent Volume (Vas)1.54ft³
Mechanical Compliance of Suspension (Cms)0.73mm/N
BL Product (BL)6T·m
Diaphragm Mass Inc. Airload (Mms)26.9g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)218.2cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8"
Baffle Cutout Diameter7.25"
Depth3.625"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.25ft³
Sealed F340.3Hz
Vented Volume2ft³
Vented F328.9Hz
