  • GRS 8" Woofer Surface Mount Poly Cone 8 Ohm 8SMP-8

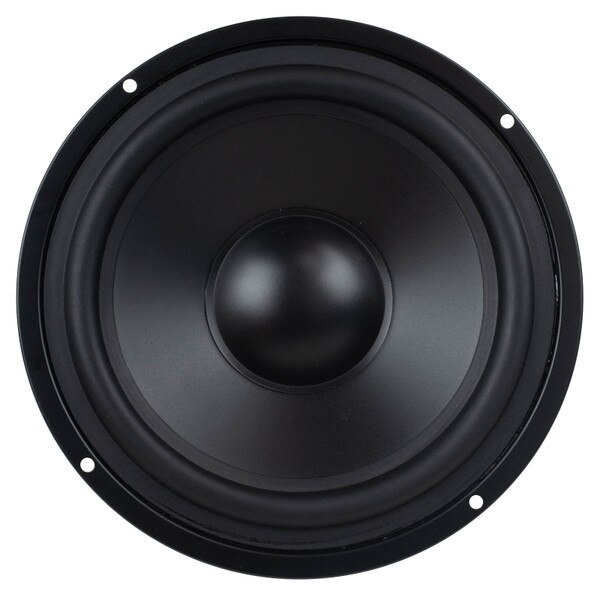

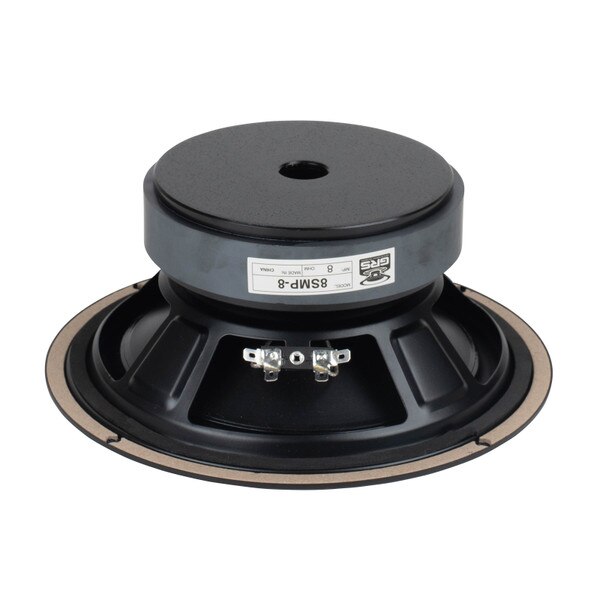

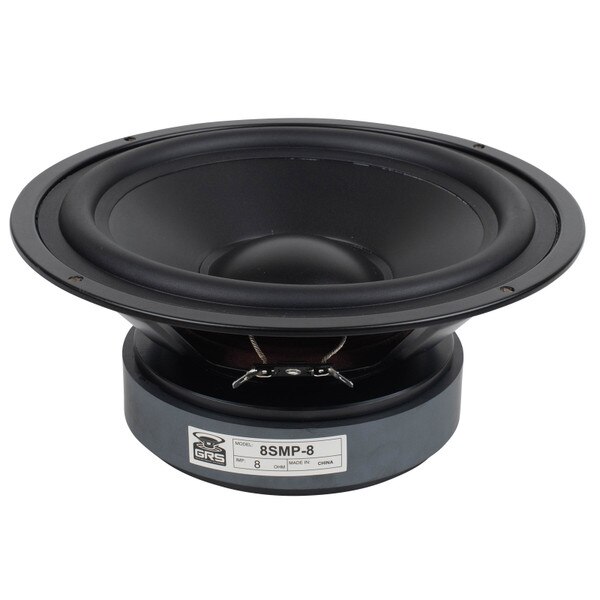

NEW GRS 8" Woofer Surface Mount Poly Cone 8 Ohm 8SMP-8

GRSPart # 292-868
Model: 8SMP-8
The GRS 8SMP-8 is a versatile 8" 8 ohm woofer designed for easy surface mounting and exceptional reliability. It features a damped poly cone and a rubber surround, which work together to produce natural and well-controlled sound output. Additionally, it includes a copper cap that minimizes inductance and distortion. The vented pole piece and aluminum voice-coil former enhance cooling, effectively reducing power compression. With its lightweight 2-layer coil, the 8SMP-8 is ideally suited for sealed enclosures and larger 3-way speaker systems making it an excellent choice for anyone looking to upgrade their older home audio setups.

Key Features

  • Low profile frame supports surface mounting for easy installation
  • Damped poly cone with rubber surround controls resonance for a smooth natural response
  • Copper cap in the motor lowers inductance and distortion for more accurate response
  • Vented pole piece and aluminum voice coil former improve cooling to limit compression
  • Flexible enough for use in sealed or vented enclosures, great choice for 3-way designs
Similar items that may interest you:
GRS 8" Woofer Surface Mount Poly Cone 4 Ohm 8SMP-4
Price: $36.98Part # 292-866
GRS 8PR-8 8" Poly Cone Rubber Surround Woofer
Price: $16.98Part # 292-428
See all items in Woofers
NEW $36.98
MSRP: $53.99
Save $17.01 (32%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when GRS 8" Woofer Surface Mount Poly Cone 8 Ohm 8SMP-8 is back in stock or available for preorder.

Order in the next 1 hr 34 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

GRS 8" Woofer Surface Mount Poly Cone 8 Ohm 8SMP-8

The GRS 8SMP-8 is an 8" woofer with a low profile frame designed for easy surface mounting, making it a great choice for new installations or retrofits in older speaker systems. Its design focuses on accurate response and long-term reliability, ensuring that you can enjoy consistent performance for years to come.

Crafted with a damped poly cone and rubber surround, this woofer provides a natural and well-controlled response. The inclusion of a copper cap in the motor helps to reduce inductance and distortion, allowing for clearer and more accurate reproduction. Additionally, an integrated foam gasket ensures an airtight seal within the cabinet. The vented pole piece and aluminum former work together to keep the voice coil cool, minimizing power compression and maintaining sound integrity even at higher volumes. Thanks to a lightweight 2-layer coil the 8SMP-8 delivers good efficiency for high output without requiring a ton of power.

Suitable for use in both sealed and vented enclosures, the 8SMP-8 is a great choice for use in 3-way speaker designs. In addition, this driver is compatible with many classic speaker systems making it a practical solution for revitalizing or even enhancing your audio setup.

Product Details

BrandGRS
Model8SMP-8
Part Number292-868
UPC848864079851
Unit of MeasureEach
Weight7

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.125
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance8Ω
Frequency Response30 - 1,500Hz
Sensitivity89.5dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)41Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)2.85
Electromagnetic Q (Qes)0.55
Total Q (Qts)0.46
Compliance Equivalent Volume (Vas)1.15ft³
Mechanical Compliance of Suspension (Cms)0.51mm/N
BL Product (BL)8.95T·m
Diaphragm Mass Inc. Airload (Mms)29.5g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)211cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.5"
Baffle Cutout Diameter7"
Depth3.5"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F376Hz
Vented Volume1.4ft³
Vented F339Hz
