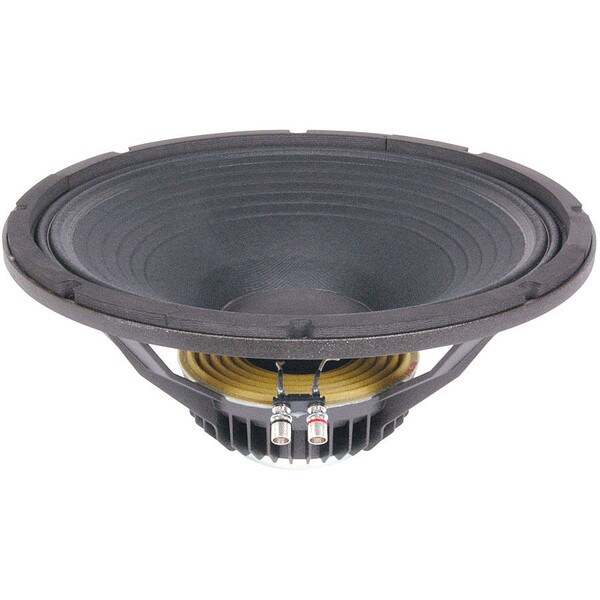

Eminence Kappalite 3015 Neo 15" Speaker Driver

Name: Eminence Kappalite 3015 Neo 15" Speaker Driver
Brand: Eminence Speaker
SKU: 290-597
Price: 269.99 USD
Availability: InStock
Rating: 4.9 (18 reviews)

Eminence SpeakerPart # 290-597

Model: Kappalite 3015

Read 18 Reviews | 40 Questions, 90 Answers or

12 in. LF 12 in. HO 15 in. Standard 15 in. LF

Equipped with a cast aluminum frame and lightweight neodymium magnet, the Eminence Kappalite 3015 15" speaker is recommended for vented professional audio enclosures for full range or as mids.

Key Features

Neodymium magnet structure delivers incredible performance without the weight

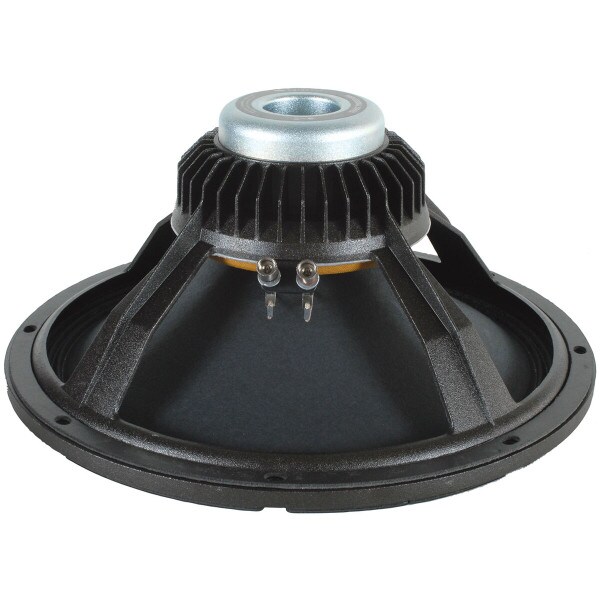

Die-cast aluminum basket/heatsink with vented core
Copper voice coil with polyimide former

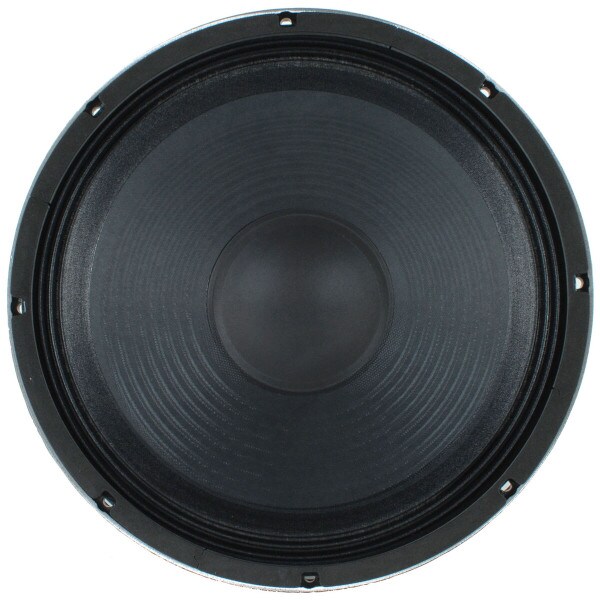

Paper cone with solid composition paper dust cap and cloth cone edge

Product Details

Brand

Eminence Speaker

Model

Kappalite 3015

Part Number

290-597

UPC

876358000616

Unit of Measure

Each

Weight

10.1

Product Specifications

Nominal Diameter

15"

Power Handling (RMS)

450 Watts

Power Handling (MAX)

900 Watts

Impedance

8Ω

Frequency Response

40 to 4,000Hz

Sensitivity

100.8dB 2.83V/1m

Voice Coil Diameter

Thiele-Small Parameters

Resonant Frequency (Fs)

45Hz

DC Resistance (Re)

5.27Ω

Voice Coil Inductance (Le)

0.64mH

Mechanical Q (Qms)

6.7

Electromagnetic Q (Qes)

0.36

Total Q (Qts)

0.34

Compliance Equivalent Volume (Vas)

5.4ft³

Mechanical Compliance of Suspension (Cms)

0.15mm/N

BL Product (BL)

18.6T·m

Diaphragm Mass Inc. Airload (Mms)

84g

Maximum Linear Excursion (Xmax)

5.9mm

Surface Area of Cone (Sd)

856cm²

Materials of Construction

Cone Material

Paper

Surround Material

Cloth

Voice Coil Wire Material

Copper

Voice Coil Former

Kapton® / Polyimide

Basket / Frame Material

Cast Aluminum

Magnet Material

Neodymium

Mounting Information

Overall Outside Diameter

15.32"

Baffle Cutout Diameter

14"

Depth

6.8"

# Mounting Holes

Parts Express Staff Recommended Enclosure Volume

Sealed Volume

1.63ft³

Sealed F3

105.1Hz

Vented Volume

3.5ft³

Vented F3

54.6Hz
