  • Eminence Kappalite 3012HO Neo 12" Speaker Driver

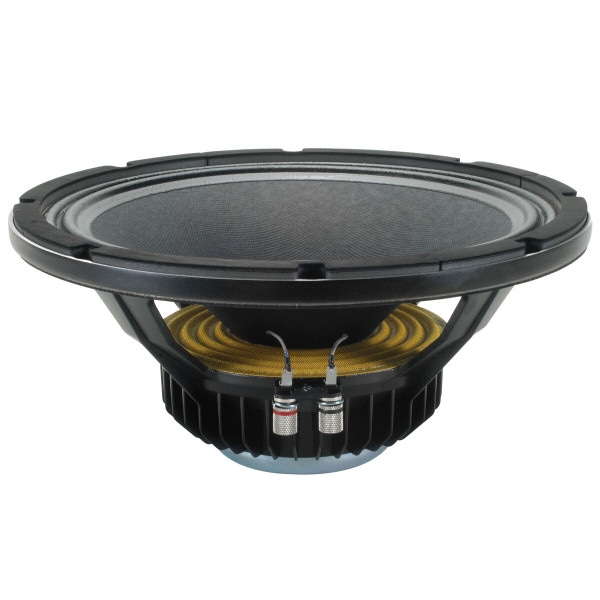

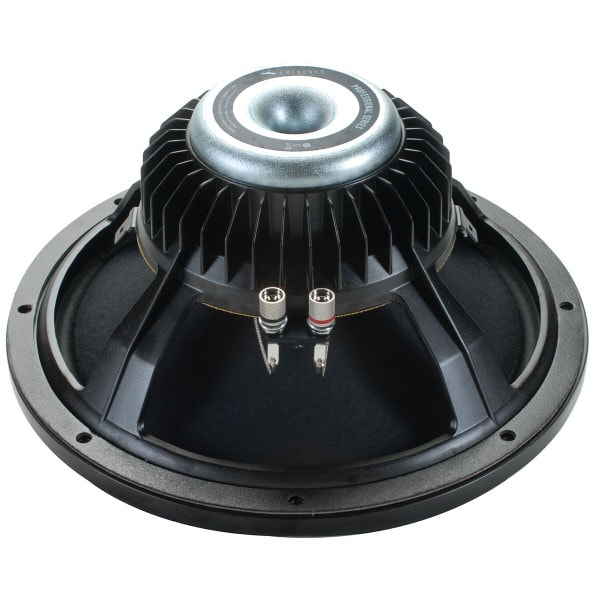

Eminence Kappalite 3012HO Neo 12" Speaker Driver

Eminence SpeakerPart # 290-589
Model: Kappalite 3012HO
The Eminence Kappalite 3012HO 12" speaker is a high power driver for pro audio or MI applications. Low-weight/high energy neodymium magnet. Cast aluminum basket, polyimide VC former, and treated paper cone with cloth double half-roll edge.

Key Features

  • Lightweight neodymium magnet
  • Die-cast aluminum basket
  • 6.2 mm Xmax provides great bass output
  • 3" diameter aluminum voice coil
  • High efficiency and power handling
  • Net weight: 7.1 lbs.
Similar items that may interest you:
Eminence Kappalite 3012LF Neo 12" Speaker Driver
Price: $254.99Part # 290-590
Beyma 12LEX1300Nd LEX Series 12" Neo Subwoofer 8 Ohm
Price: $567.75Part # 253-042
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $249.99
+ FREE SHIPPING
MSRP: $299.99
Save $50.00 (17%)
Bulk Pricing
9 In Stock
Get Notified When Available

We'll send you an email when Eminence Kappalite 3012HO Neo 12" Speaker Driver is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence Kappalite 3012HO Neo 12" Speaker Driver

The Eminence Kappalite 3012HO 12" speaker is a high power driver for pro audio or MI applications. Cast aluminum basket, polyimide VC former, and treated paper cone with cloth double half-roll edge. The optimized neodymium motor greatly reduces weight while still delivering high efficiency with low distortion. Great for 2-way systems including floor monitors, and as the mid component in large multi-way PA systems. Excellent results when used in horn-loaded mid designs.

Product Details

BrandEminence Speaker
ModelKappalite 3012HO
Part Number290-589
UPC876358001644
Unit of MeasureEach
Weight8.05

Product Specifications

Nominal Diameter12"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8Ω
Frequency Response51 to 3,500Hz
Sensitivity100.5dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)52Hz
DC Resistance (Re)5.5Ω
Voice Coil Inductance (Le)0.57mH
Mechanical Q (Qms)8.39
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.32
Compliance Equivalent Volume (Vas)2.86ft³
Mechanical Compliance of Suspension (Cms)0.2mm/N
BL Product (BL)15.9T·m
Diaphragm Mass Inc. Airload (Mms)47g
Maximum Linear Excursion (Xmax)6.2mm
Surface Area of Cone (Sd)532.4cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.38"
Baffle Cutout Diameter11.06"
Depth5.63"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.75ft³
Sealed F3129Hz
Vented Volume2ft³
Vented F351.8Hz
