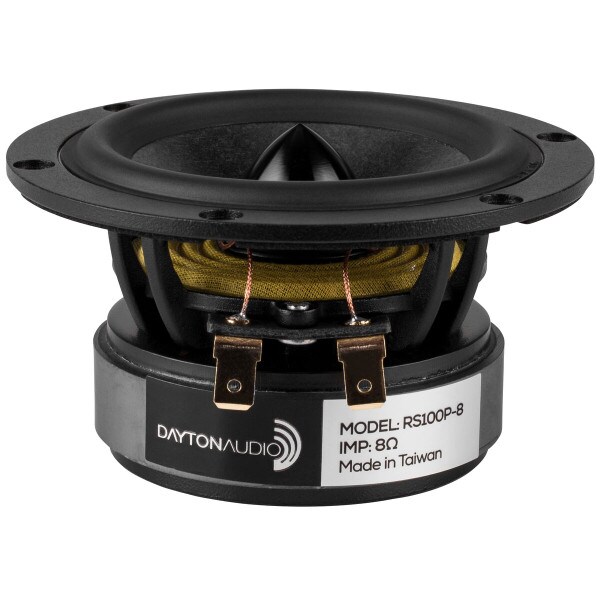

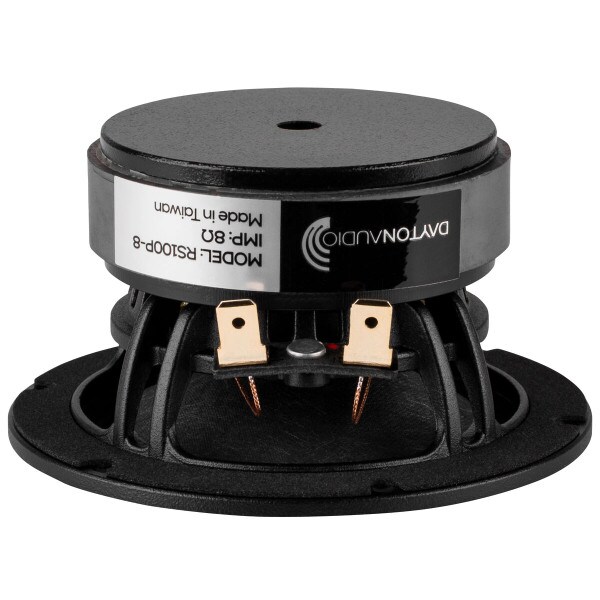

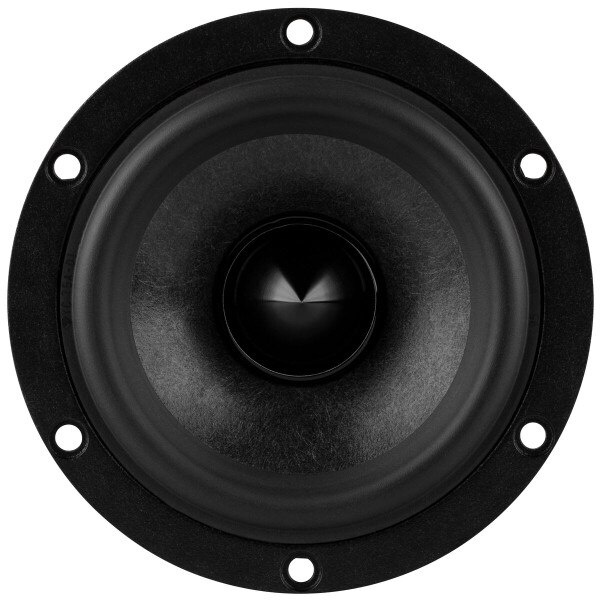

Dayton Audio RS100P-8 4" Reference Paper Midwoofer 8 Ohm

Dayton AudioPart # 295-359
Model: RS100P-8
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.

Key Features

  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • Similar cosmetics and design features as original aluminum Dayton Audio Reference Series
  • Perfect for use a woofer, midwoofer, or dedicated midrange driver
Your Price: $36.98
MSRP: $50.99
Save $14.01 (27%)
Bulk Pricing
Quantity:Qty: 1-3 $36.98/ea
Quantity:Qty: 4+ $32.42/ea
In Stock
Get Notified When Available

We'll send you an email when Dayton Audio RS100P-8 4" Reference Paper Midwoofer 8 Ohm is back in stock or available for preorder.

Order in the next 8 hr 5 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RS100P-8 4" Reference Paper Midwoofer 8 Ohm

The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Product Details

BrandDayton Audio
ModelRS100P-8
Part Number295-359
UPC848791001222
Unit of MeasureEach
Weight1.4

Product Specifications

Nominal Diameter4"
Power Handling (RMS)30 Watts
Power Handling (MAX)45 Watts
Impedance8Ω
Frequency Response90 to 12,500Hz
Sensitivity86.2dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)95.6Hz
DC Resistance (Re)6.6Ω
Voice Coil Inductance (Le)0.51mH
Mechanical Q (Qms)2.18
Electromagnetic Q (Qes)0.71
Total Q (Qts)0.54
Compliance Equivalent Volume (Vas)0.06ft³
Mechanical Compliance of Suspension (Cms)0.98mm/N
BL Product (BL)3.95T·m
Diaphragm Mass Inc. Airload (Mms)2.8g
Maximum Linear Excursion (Xmax)3.7mm
Surface Area of Cone (Sd)37.4cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.86"
Baffle Cutout Diameter3.04"
Depth2.01"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.04ft³
Sealed F3160Hz
Vented Volume0.13ft³
Vented F368Hz
