  • Dayton Audio High Efficiency Steered Flux Audio Exciter IMS Mount 30mm 40W 4 Ohm EX30HESF2-4

Dayton Audio High Efficiency Steered Flux Audio Exciter IMS Mount 30mm 40W 4 Ohm EX30HESF2-4

Dayton Audio
Part #295-241

Dayton Audio High Efficiency Steered Flux Audio Exciter IMS Mount 30mm 40W 4 Ohm EX30HESF2-4

Dayton Audio
Part #295-241
Model: EX30HESF2-4

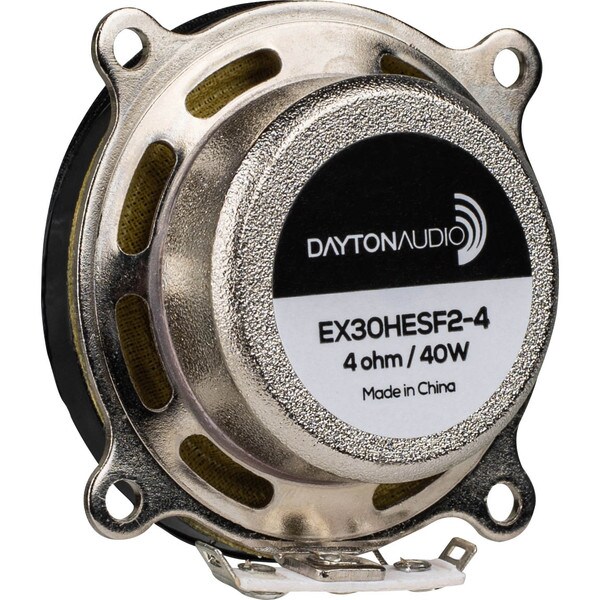

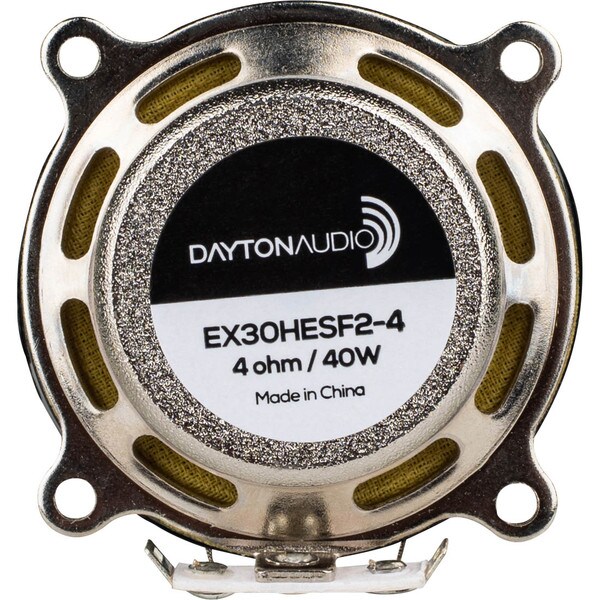

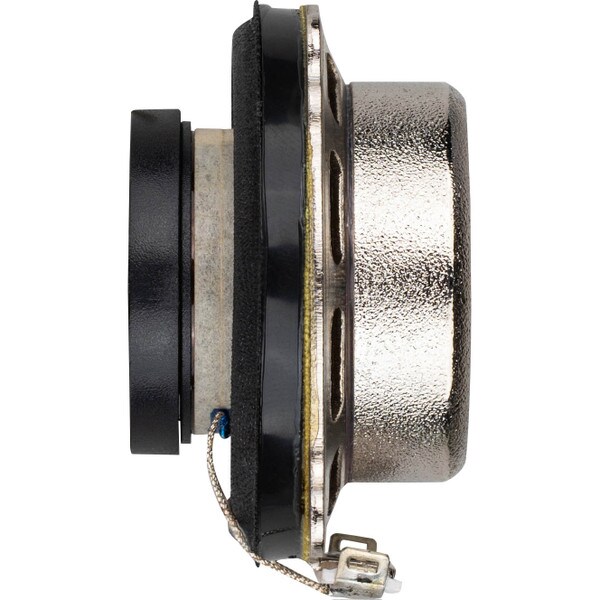

The EX30HESF2-4 IMS™ 30 mm steered high flux exciter is one of the most powerful in Dayton Audio's line of exciters capable of handling up to 40 watts. A pre-attached 3M VHB™ adhesive pad and Interchangeable mounting system combines with four screw-down mounting tabs for maximum energy transfer.

Key Features
  • Small size; just under 2" diameter
  • Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters
  • Rare-earth neodymium motor and a proprietary voice coil
  • High output exciter design handles up to 40 watts RMS
  • Easily swap non-functional units out in the field
  • 4-ohm impedance for use with small, Class D amplifiers

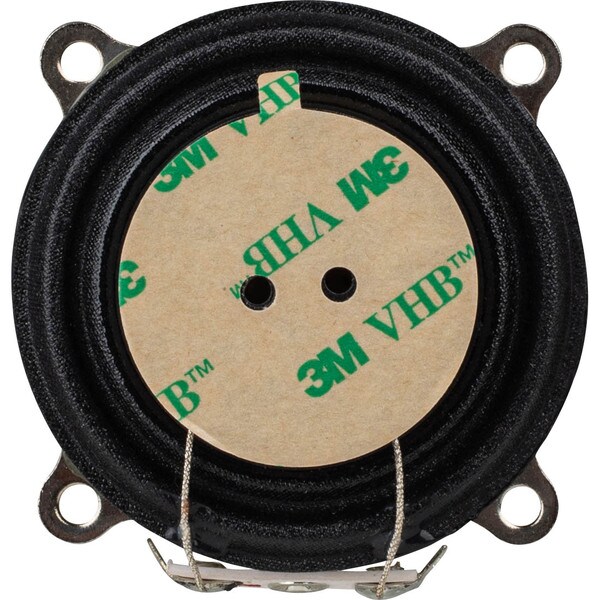

  • Pre-applied 3M VHB™ adhesive for quick, durable installation
Your Price: $27.98
MSRP: $43.99
Save $16.01 (36%)
Bulk Pricing
Quantity:Qty: 1-3 $27.98/ea
Quantity:Qty: 4+$26.83/ea
Order in the next 0 hr 23 min to ship today. Details

71In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio High Efficiency Steered Flux Audio Exciter IMS Mount 30mm 40W 4 Ohm EX30HESF2-4

Dayton Audio EX30HESF2-4 IMS™ High Efficiency Steered Flux Interchangeable Hardware Mount Exciter 30mm 40W 4 Ohm

Test the limits of your imagination and turn any surface into a great sounding speaker system

Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Dayton Audio exclusive IMS™ Interchangeable Mount exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system allows you to try out the assortment of exciters offered by Dayton Audio!

Want to learn more about exciters? See our Exciters & Tactile Transducers Introduction Paper!

Read More

Key Specs:



  • Power Handling (RMS): 40 Watts
  • Power Handling (MAX): 80 Watts
  • Impedance: 4 Ω

Aural Excitement



Dayton Audio's EX30HESF-4 IMS™ steered high flux exciter is one of our most powerful. This steered high flux exciter incorporates a 4 ohm voice coil for use with medium sized amplifiers to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance of only 0.3 mH. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.



Exclusive IMS™ Interchangeable Mounting System

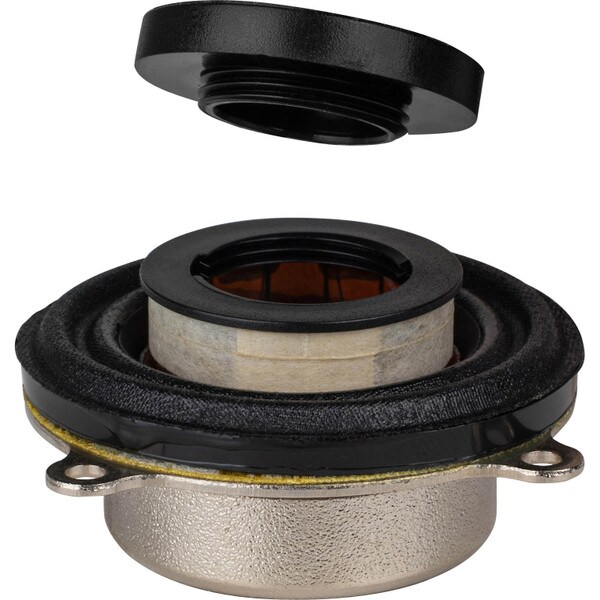

With Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters.





We've Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Learn More

See All Of Our IMS™ Interchangeable Mount Exciters

All of Dayton's interchangeable mount exciters take advantage of the same mount to provide an easily swappable configuration, pick up yours today from Dayton Audio!



EX25CT2-4

Nominal Diameter: 25mm
Impedance: 4 Ohms
Shop Now

    EX25VT2-4

    Nominal Diameter: 25mm
    Impedance: 4 Ohms
    Shop Now

      EX25FHE2-4

      Nominal Diameter: 25mm
      Impedance: 4 Ohms
      Shop Now

        EX32EP2-4

        Nominal Diameter: 32mm
        Impedance: 4 Ohms
        Shop Now


          EX32U2-4

          Nominal Diameter: 32mm
          Impedance: 4 Ohm
          Shop Now

            EX30HESF2-4

            Nominal Diameter: 30mm
            Impedance: 4 Ohms
            Shop Now

              EX32Q2-4

              Nominal Diameter: 32mm
              Impedance: 4 Ohms
              Shop Now

                EX32Q2-8

                Nominal Diameter: 32mm
                Impedance: 4 Ohms
                Shop Now

                  Shop All Exciters



                  Learn More
                  Request Quote


                  Show Off Your Builds

                  We would love to see what you can build. Show off your creativity and skills by uploading to our project gallery.

                  For inspiration, see what others have built below:

                  Submit your projects to receive a 6-month digital subscription to audioXpress magazine



                  Shimmer Tree by Dan Fox

                  Shimmer Tree is an impressive six metre high tree-like sound and light sculpture controlled by the wind. As the listener wanders underneath, the directional sound and changing resonances envelope the listener in an evolving and meditative sound bath that responds to the environment. It has 12 branches and 12 large cymbals suspended above head height. Each cymbal is fitted with a tactile transducer, transforming it into a metallic resonator speaker.

                  SoundPhoto by David F Giroux

                  I started with a vibrant 12×24″ metal print of fireworks over the Madison, Wis. city skyline — the “Shake the Lake” show over Lake Monona. This is my own photo, in a high-resolution professional print directly on a sheet of polished aluminum with1.5″ inset metal frame on the back. I installed a Dayton audio 15w/ch amp and 2 Dayton exciters behind the panel. Power switch, volume control, and aux audio input mounted discreetly on the side.

                  Bertha by Matty Hughes

                  My new 192 Watt DIY DML panel build (Bertha)! At 20in x 22in each 1/4″ thick plexiglass panel is running at 4 ohm’s @ 96 Watts, exciters wired in a series-parallel configuration for each panel and powered by a HiFi 100W x 2 (200W) Bluetooth 5 amp with a 24V 10a power supply. A total of 8 Dayton Audio DAEX25FHE-4 Framed High Efficiency 25mm Exciters each 24W 4 Ohm were used for this DML build.



                  Product Details

                  BrandDayton Audio
                  ModelEX30HESF2-4
                  Part Number295-241
                  UPC848791008580
                  Unit of MeasureEach
                  Weight0.4

                  Product Specifications

                  Power Handling (RMS)40 Watts
                  Power Handling (MAX)80 Watts
