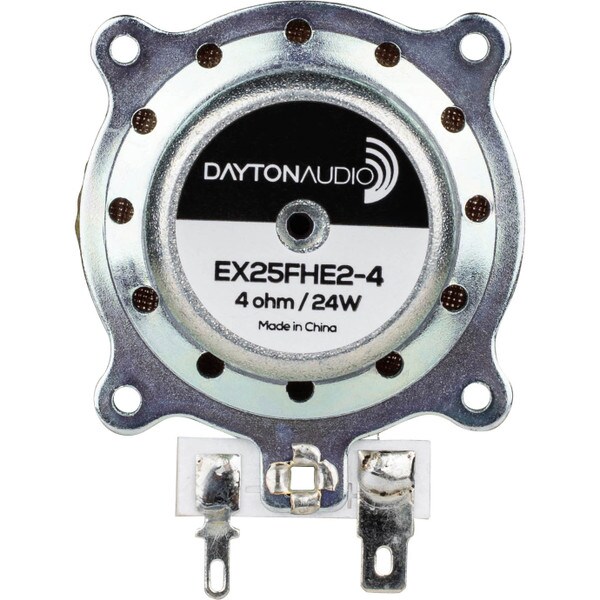

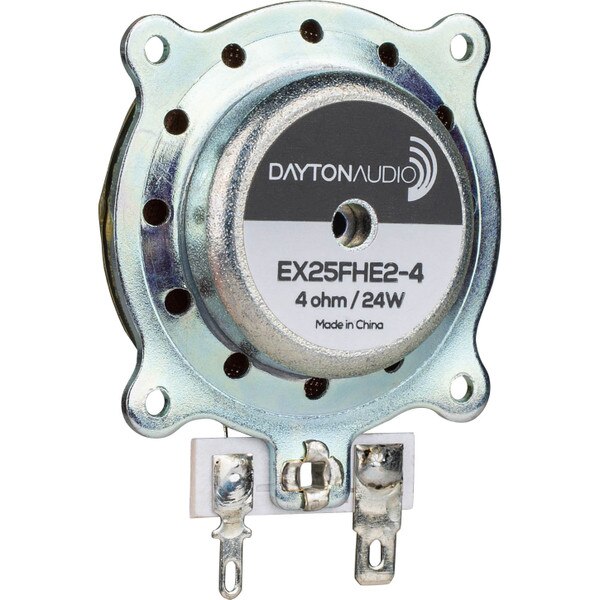

Dayton Audio Framed High Efficiency Audio Exciter IMS Mount 25mm 24W 4 Ohm EX25FHE2-4

Dayton Audio
Part #295-225

Dayton Audio Framed High Efficiency Audio Exciter IMS Mount 25mm 24W 4 Ohm EX25FHE2-4

Dayton Audio
Part #295-225
Model: EX25FHE2-4
Choose Dayton Audio's EX25FHE-4 IMS™ sound exciter to add dynamic sound to almost any object or surface!
Key Features
  • Small size; just under 2" diameter, about 7/8" high
  • Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters
  • Rare-earth neodymium motor and a proprietary voice coil
  • 24 watt RMS power handling for high output
  • Easily swap non-functional units out in the field
  • 4-ohm impedance for use with small, Class D amplifiers

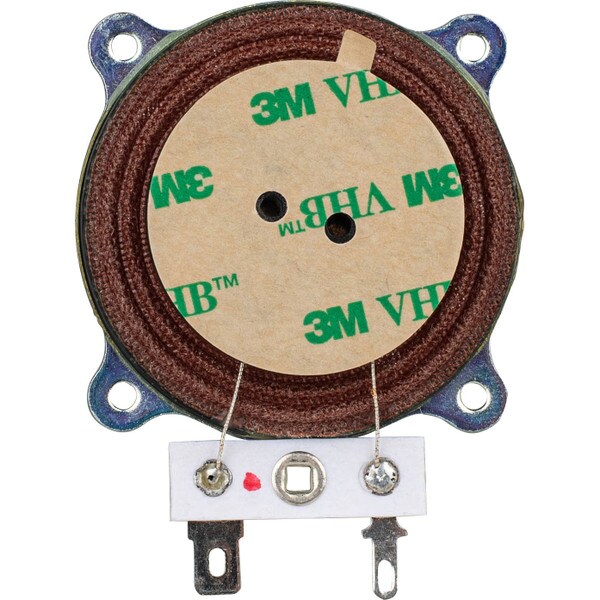

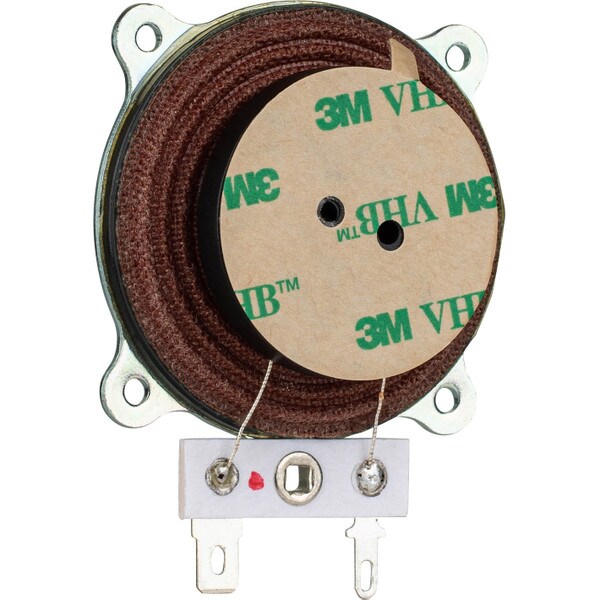

  • Pre-applied 3M VHB™ adhesive for quick, durable installation
Similar items that may interest you:
See all items in Exciters & Tactile Transducers
Your Price: $14.98
MSRP: $18.99
Save $4.01 (21%)
Bulk Pricing
Quantity:Qty: 1-3 $14.98/ea
Quantity:Qty: 4+$14.33/ea
Order in the next 9 hr 31 min to ship today. Details

217In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Framed High Efficiency Audio Exciter IMS Mount 25mm 24W 4 Ohm EX25FHE2-4

Dayton Audio EX25FHE2-4 IMS™ Framed High Efficiency 25mm Interchangeable Hardware Mount Exciter 24W 4 Ohm

Test the limits of your imagination and turn any surface into a great sounding speaker system

Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Dayton Audio IMS™ Interchangeable Mount exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system allows you to try out the assortment of exciters offered by Dayton Audio!

Want to learn more about exciters? See our Exciters & Tactile Transducers Introduction Paper!

Read More

Key Specs:



  • Power Handling (RMS): 24 Watts
  • Power Handling (MAX): 48 Watts
  • Impedance: 4 Ω
  • Neodymium Motor

1/3rd octave smoothing - measurement taken with transducer adhered off-center on a 12" x 12" x ½" foam core board in an infinite baffle setup.

Note: This information is for comparison purposes only, the actual frequency response will depend on many factors of which the diaphragm being the greatest contributor.

Aural Excitement



Dayton Audio's 25 mm EX25FHE2-4 IMS™ coin type exciter features the ability to turn nearly any surface into a speaker, this exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.



Exclusive IMS™ Interchangeable Mounting System

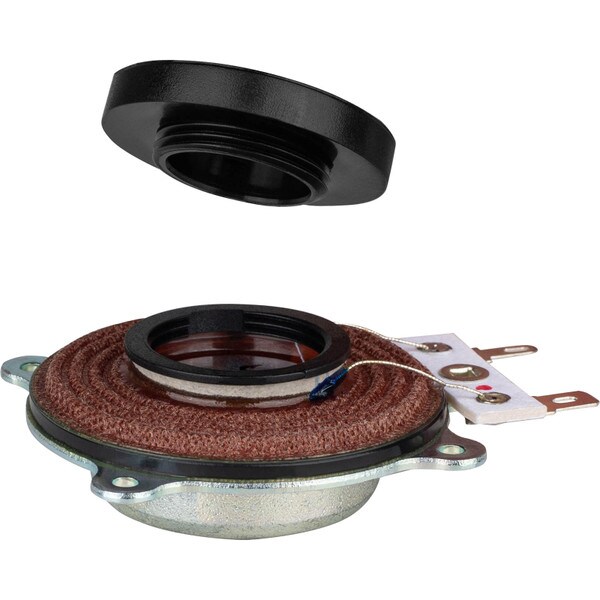

With Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters.





We've Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Learn More

See All Of Our IMS™ Interchangeable Mount Exciters

All of Dayton's interchangeable mount exciters take advantage of the same mount to provide an easily swappable configuration, pick up yours today from Dayton Audio!



EX25CT2-4

Nominal Diameter: 25mm
Impedance: 4 Ohms
Shop Now

    EX25VT2-4

    Nominal Diameter: 25mm
    Impedance: 4 Ohms
    Shop Now

      EX25FHE2-4

      Nominal Diameter: 25mm
      Impedance: 4 Ohms
      Shop Now

        EX32EP2-4

        Nominal Diameter: 32mm
        Impedance: 4 Ohms
        Shop Now

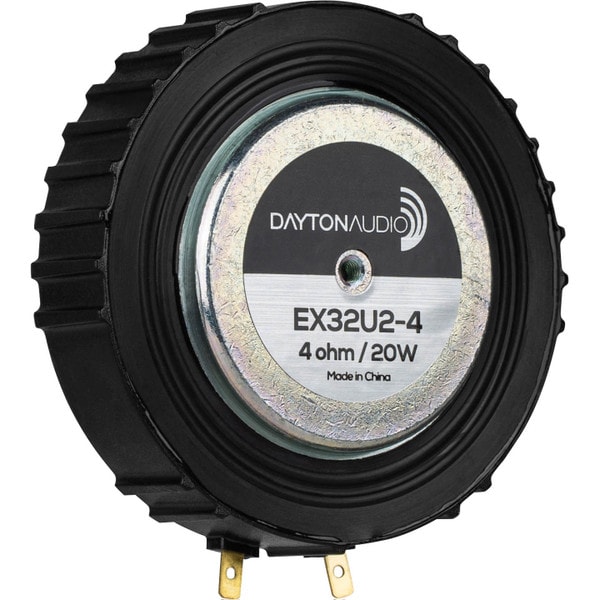

          EX32U2-4

          Nominal Diameter: 32mm
          Impedance: 4 Ohm
          Shop Now

            EX30HESF2-4

            Nominal Diameter: 30mm
            Impedance: 4 Ohms
            Shop Now

              EX32Q2-4

              Nominal Diameter: 32mm
              Impedance: 4 Ohms
              Shop Now

                EX32Q2-8

                • Nominal Diameter: 32mm
                • Impedance: 4 Ohms
                Shop Now

                  Shop All Exciters



                  Learn More
                  Request Quote


                  Show Off Your Builds

                  We would love to see what you can build. Show off your creativity and skills by uploading to our project gallery.

                  For inspiration, see what others have built below:

                  Submit your projects to receive a 6-month digital subscription to audioXpress magazine



                  Shimmer Tree by Dan Fox

                  Shimmer Tree is an impressive six metre high tree-like sound and light sculpture controlled by the wind. As the listener wanders underneath, the directional sound and changing resonances envelope the listener in an evolving and meditative sound bath that responds to the environment. It has 12 branches and 12 large cymbals suspended above head height. Each cymbal is fitted with a tactile transducer, transforming it into a metallic resonator speaker.

                  SoundPhoto by David F Giroux

                  I started with a vibrant 12×24″ metal print of fireworks over the Madison, Wis. city skyline — the “Shake the Lake” show over Lake Monona. This is my own photo, in a high-resolution professional print directly on a sheet of polished aluminum with1.5″ inset metal frame on the back. I installed a Dayton audio 15w/ch amp and 2 Dayton exciters behind the panel. Power switch, volume control, and aux audio input mounted discreetly on the side.

                  Bertha by Matty Hughes

                  My new 192 Watt DIY DML panel build (Bertha)! At 20in x 22in each 1/4″ thick plexiglass panel is running at 4 ohm’s @ 96 Watts, exciters wired in a series-parallel configuration for each panel and powered by a HiFi 100W x 2 (200W) Bluetooth 5 amp with a 24V 10a power supply. A total of 8 Dayton Audio DAEX25FHE-4 Framed High Efficiency 25mm Exciters each 24W 4 Ohm were used for this DML build.



                  Product Details

                  BrandDayton Audio
                  ModelEX25FHE2-4
                  Part Number295-225
                  UPC848791008559
                  Unit of MeasureEach
                  Weight0.25

                  Product Specifications

                  Power Handling (RMS)24 Watts
                  Power Handling (MAX)48 Watts
