Model: EX32Q2-8

When applied to vertical surfaces the Dayton Audio EX32Q2-8 dual spring balanced exciter has more linear movement to deliver extremely accurate response while producing lower distortion, now with an IMS™ mount for easy field replacement!

Key Features
  • Dual steel spider design to better support the large motor
  • IMS™ mount allows you to A/B test different exciters
  • Rare-earth neodymium motor and a proprietary voice coil
  • 32 mm two layer voice coil for high, 20 watts RMS, power handling
  • Easily swap non-functional units out in the field
  • 8-ohm impedance for use with small, Class D amplifiers
  • Pre-applied 3M VHB™ adhesive for quick, durable installation
Your Price: $19.98
MSRP: $32.99
Save $13.01 (39%)
Bulk Pricing
Quantity:Qty: 1-3 $19.98/ea
Quantity:Qty: 4+$18.98/ea
Order in the next 4 hr 42 min to ship today. Details

575In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Dual Steel Spring Balanced Audio Exciter IMS Mount 32mm 20W 8 Ohm EX32Q2-8

Dayton Audio EX32Q2-8 Dual Steel Spring Balanced IMS™ Hardware Mount 32mm Exciter 20W 8 Ohm

Test the limits of your imagination and turn any surface into a great sounding speaker system

Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter.

Want to learn more about exciters? See our Exciters & Tactile Transducers Introduction Paper!

Read More

Key Specs:

  • Power Handling (RMS): 20 Watts
  • Power Handling (MAX): 40 Watts
  • Impedance: 4 Ω

Aural Excitement

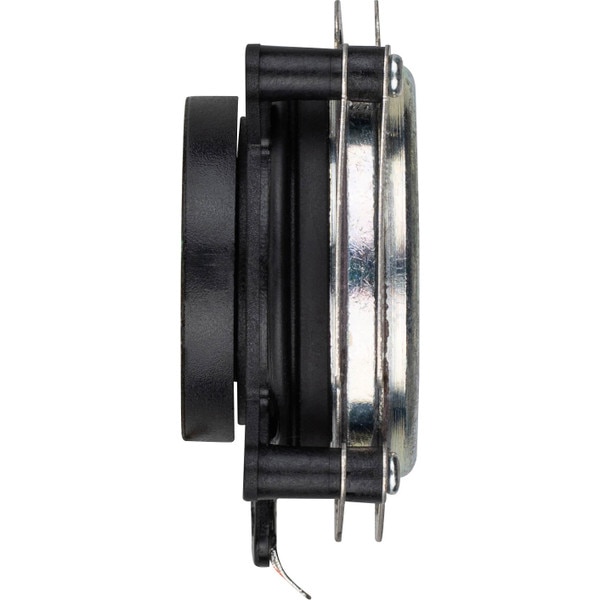

The EX32Q2-8 from Dayton Audio can turn most rigid, flat surfaces into a speaker. Designed specifically for mounting to vertical surfaces, this exciter uses a dual spring spider to better support the large neodymium motor providing improved linearity. With a 2-layer 32 mm voice coil, this exciter can handle up to 40 watts peak for high output even when attached to thicker surfaces. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.

Removable Mounting System

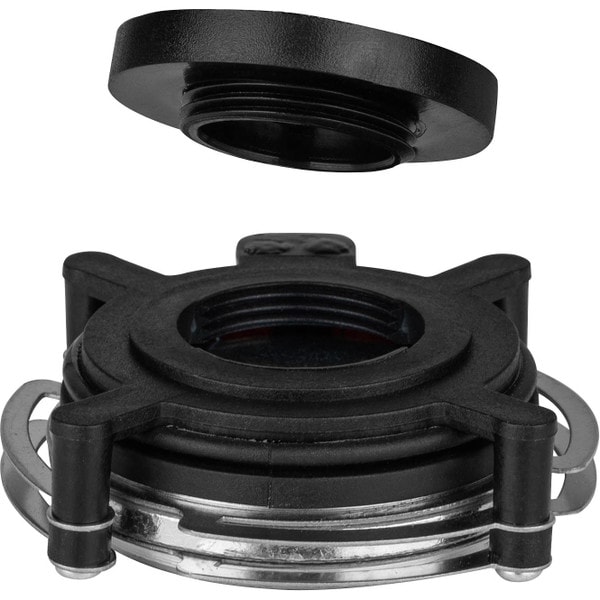

With Dayton Audio's IMS™ mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad!

We've Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Learn More

Learn More
Request Quote

Show Off Your Builds

We would love to see what you can build. Show off your creativity and skills by uploading to our project gallery.

For inspiration, see what others have built below:

Submit your projects to receive a 6-month digital subscription to audioXpress magazine

Shimmer Tree by Dan Fox

Shimmer Tree is an impressive six metre high tree-like sound and light sculpture controlled by the wind. As the listener wanders underneath, the directional sound and changing resonances envelope the listener in an evolving and meditative sound bath that responds to the environment. It has 12 branches and 12 large cymbals suspended above head height. Each cymbal is fitted with a tactile transducer, transforming it into a metallic resonator speaker.

SoundPhoto by David F Giroux

I started with a vibrant 12×24″ metal print of fireworks over the Madison, Wis. city skyline — the “Shake the Lake” show over Lake Monona. This is my own photo, in a high-resolution professional print directly on a sheet of polished aluminum with1.5″ inset metal frame on the back. I installed a Dayton audio 15w/ch amp and 2 Dayton exciters behind the panel. Power switch, volume control, and aux audio input mounted discreetly on the side.

Bertha by Matty Hughes

My new 192 Watt DIY DML panel build (Bertha)! At 20in x 22in each 1/4″ thick plexiglass panel is running at 4 ohm’s @ 96 Watts, exciters wired in a series-parallel configuration for each panel and powered by a HiFi 100W x 2 (200W) Bluetooth 5 amp with a 24V 10a power supply. A total of 8 Dayton Audio DAEX25FHE-4 Framed High Efficiency 25mm Exciters each 24W 4 Ohm were used for this DML build.

Product Details

BrandDayton Audio
ModelEX32Q2-8
Part Number295-265
UPC848791008603
Unit of MeasureEach
Weight0.35

Product Specifications

Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
