  • Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer

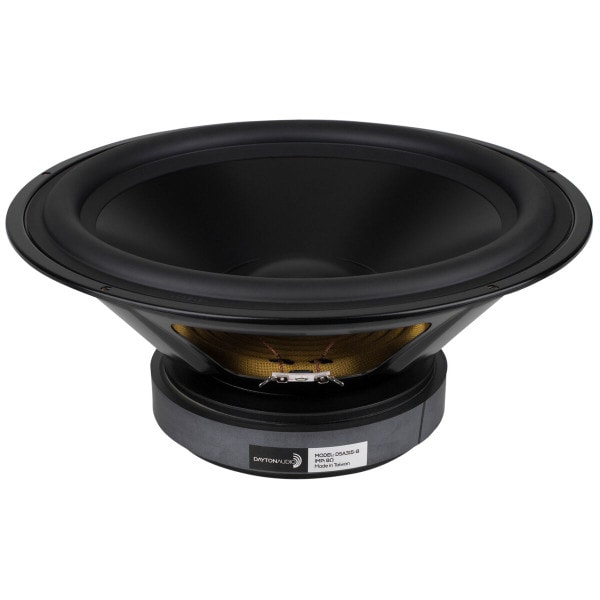

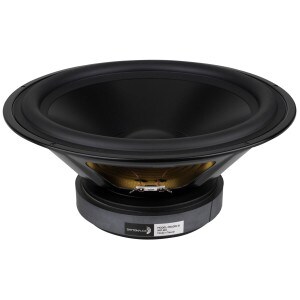

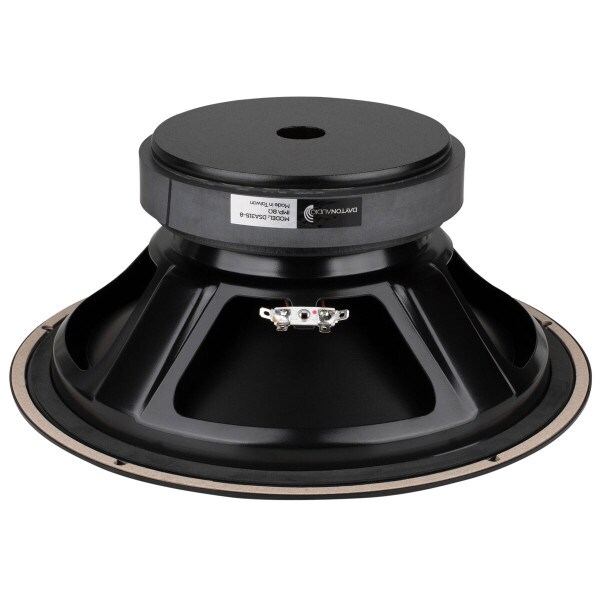

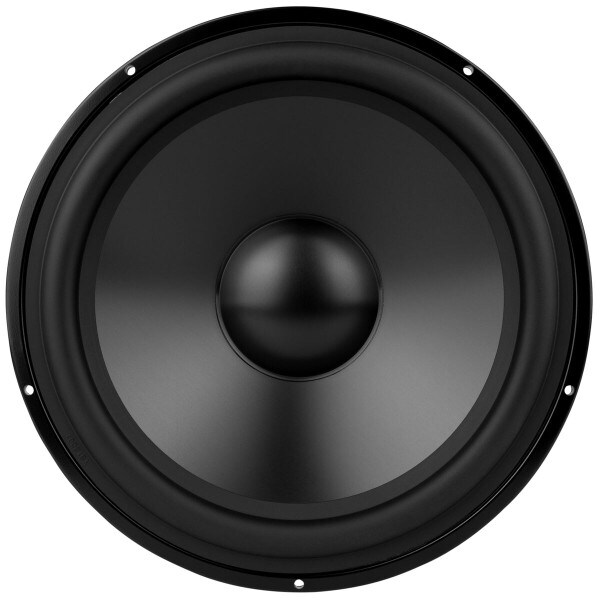

Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer

Dayton Audio
Part #295-534

Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer

Dayton Audio
Part #295-534
Model: DSA315-8
Great looks, high efficiency, and clean bass are notable attributes of Dayton Audio's Designer Series DSA315-8 12" woofer.
Key Features
  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
Your Price: $114.98
+ FREE SHIPPING
MSRP: $142.99
Save $28.01 (20%)
Bulk Pricing
Quantity:Qty: 1-3 $114.98/ea
Quantity:Qty: 4+$106.39/ea
Order in the next 4 hr 35 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Product Details

BrandDayton Audio
ModelDSA315-8
Part Number295-534
UPC848791002441
Unit of MeasureEach
Weight13.75

Product Specifications

Nominal Diameter12"
Power Handling (RMS)120 Watts
Power Handling (MAX)240 Watts
Impedance8Ω
Frequency Response24 to 2,000Hz
Sensitivity90.3dB 2.83V/1m
Voice Coil Diameter1.95"

Thiele-Small Parameters

Resonant Frequency (Fs)24.23Hz
DC Resistance (Re)6Ω
Voice Coil Inductance (Le)1.11mH
Mechanical Q (Qms)1.89
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)5.19ft³
Mechanical Compliance of Suspension (Cms)0.38mm/N
BL Product (BL)16.1T·m
Diaphragm Mass Inc. Airload (Mms)113.1g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)506.7cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.36"
Baffle Cutout Diameter10.71"
Depth5.12"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F358Hz
Vented Volume2.1ft³
Vented F336Hz
