Yung SD300-6 300W Class D Subwoofer Plate Amplifier Module with 6 dB at 30 Hz

Yung InternationalPart # 301-510
Model: SD300-6
Yung's 300 watt SD300-6 Class D subwoofer amplifier features 6 dB of boost at 30 Hz in addition to its high continuous output capacity and studio-quality punch and definition.

Key Features

  • Class D amplifier circuit with switching power supply provides excellent efficiency
  • Capable of sustained, continuous output without thermal shutdown
  • Built-in limiter circuit protection prevents peak overloads
  • Low-level, high level, and LFE inputs for flexible interconnection
  • Manual and automatic on/off mode options
  • 6 dB @ 30 Hz bass boost plus fully adjustable phase, gain, and crossover points
  • Switchable 115/230V input voltage
Similar items that may interest you:
Dayton Audio SPA300-D 300 Watt Class-D Subwoofer Plate Amplifier
Price: $167.98Part # 300-806
See all items in Subwoofer Plate Amplifiers
Your Price: $198.98
+ FREE SHIPPING
MSRP: $271.99
Save $73.01 (27%)
Bulk Pricing
Quantity:Qty: 1-3 $198.98/ea
Quantity:Qty: 4+ $188.98/ea
In Stock
Get Notified When Available

We'll send you an email when Yung SD300-6 300W Class D Subwoofer Plate Amplifier Module with 6 dB at 30 Hz is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Yung SD300-6 300W Class D Subwoofer Plate Amplifier Module with 6 dB at 30 Hz

Yung International's SD Series Class D subwoofer power amplifiers are equipped with the unique ability to operate continuously at full rated output—a performance attribute not shared by most home audio amp designs. The benefits of this remarkable reserve capacity include solid, punchy dynamic range and fewer "nuisance" shutdowns when operated at sustained high levels. 6 dB of bass boost (centered at 30 Hz) makes this amplifier perfect for sealed enclosures and even certain vented box alignments.

The amplifiers are also extremely compact, lightweight, and cool-running, allowing users to enjoy the advantages of compact system form factors and flexibility of placement. An internal peak limiting circuit prevents amplifier overload, and protection against internal and external faults is also provided. Input power requirements are user configurable to either 115 VAC or 230 VAC line voltage.

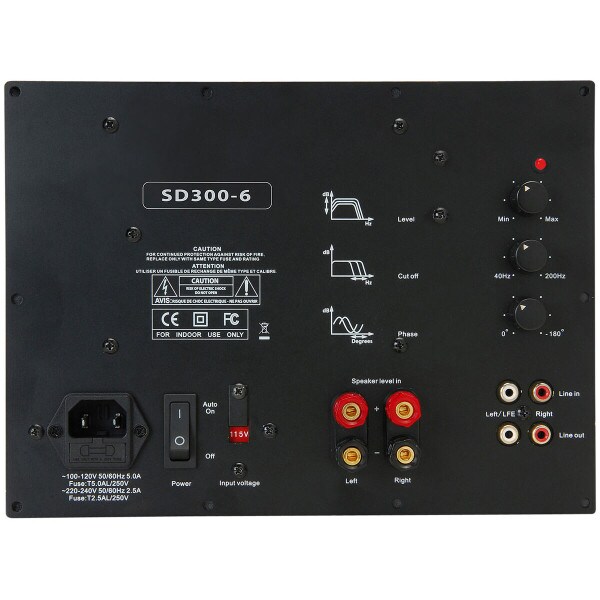

Room optimization and system integration are accomplished easily, thanks to the SD Series amps' inclusion of fully variable level, crossover frequency, and phase controls. Signal input is connected via dual RCA-type jacks, including the means to accept the output of an A/V receiver's LFE output, and dual RCA jacks are also provided to facilitate line level loop-through. When in standby mode, the amp's full active operation is engaged by signal presence of less than 1/2 watt.

Specifications: • Measured power output: 300 watts RMS into 4 ohms @ < 1.0% THD • Signal to noise ratio (at rated power): >90 dB • Input sensitivity (@ low level): 210 mV/50 Hz • Bass boost: 6 dB @ 30 Hz • Low pass adjustment: 40 Hz to 200 Hz • Phase adjustment: Continuously variable from 0º (normal) to 180º (reverse) • Power requirements: Switchable, 115/230 VAC, 50/60 Hz • Dimensions: 10" W x 7-3/8" H x 2-1/2" D; Cutout dimensions: 9-1/4" W x 6-5/8" H.

Product Details

BrandYung International
ModelSD300-6
Part Number301-510
UPC844632095634
Unit of MeasureEach
Weight3.75
