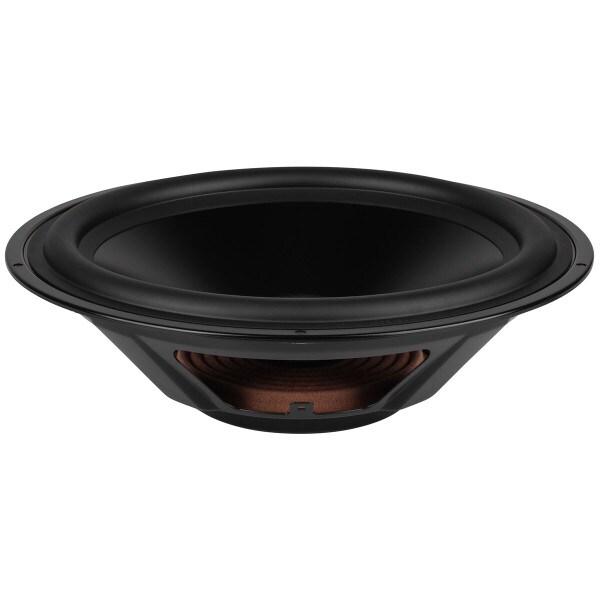

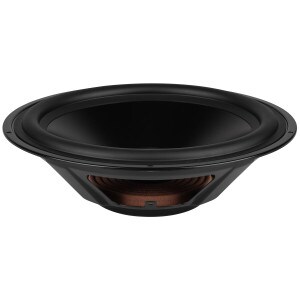

Dayton Audio DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator

Dayton AudioPart # 295-554
Model: DSA315-PR

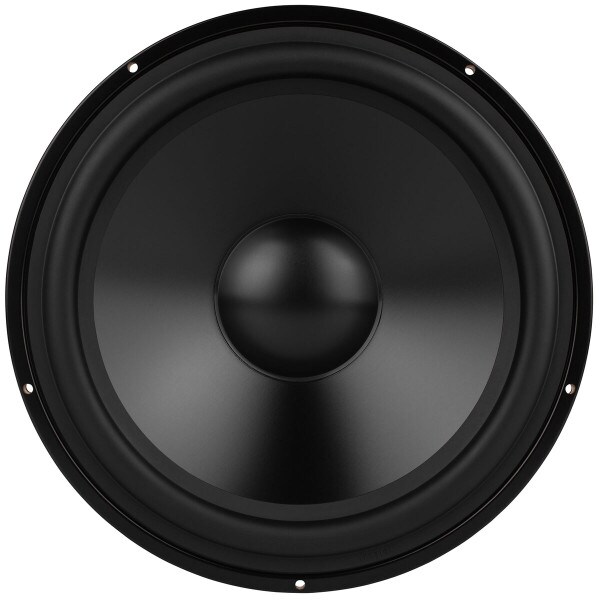

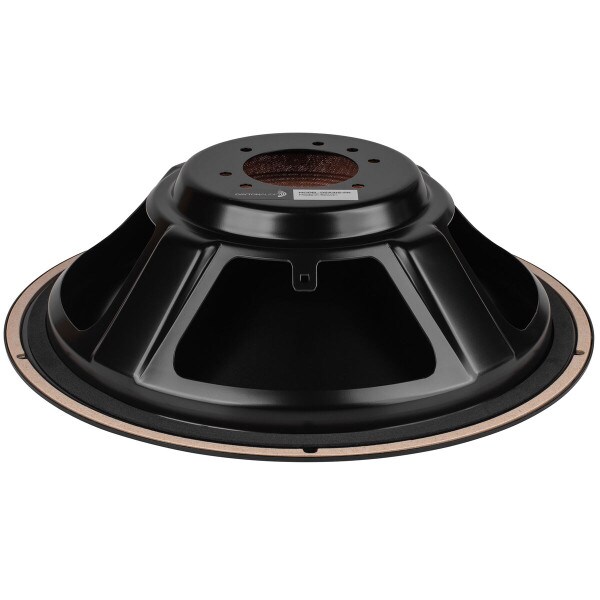

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.

Key Features

  • Cosmetic frame edge looks great even when surface mounted
  • Allows tuning small enclosures lower than using conventional ports

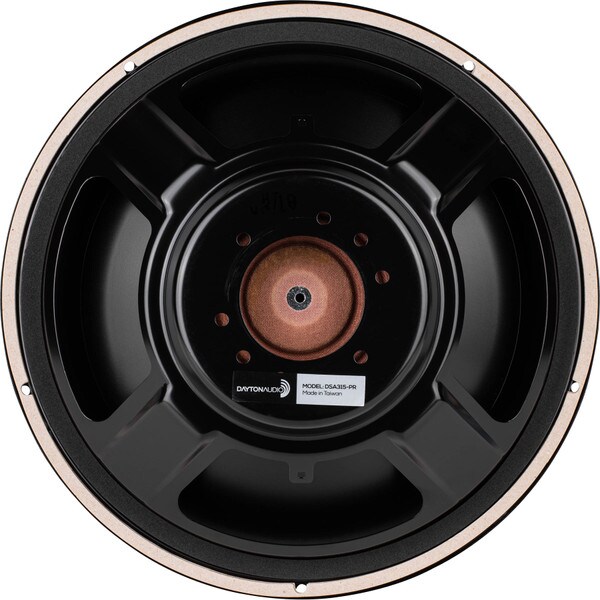

  • Rear mounted screw allows easy mass adjustment for custom tuning
  • Perfect match for Dayton Audio's aluminum cone Designer Series drivers
Your Price: $65.98
MSRP: $85.99
Save $20.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $65.98/ea
Quantity:Qty: 4+ $59.98/ea
Only 19 In Stock More due any day
Get Notified When Available

We'll send you an email when Dayton Audio DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator is back in stock or available for preorder.

Order in the next 10 hr 29 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DSA315-PR 12" Designer Series Aluminum Cone Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from large tower designs to compact subwoofer systems.

Specifications: • Fs: 17.5 Hz • Vas: 6.74 ft³ • Qms: 6.23 • Cms: 0.58 mm/N • Rms: 2.5 kg/s • Mms: 142.6 g • Sd: 480 sq. cm. • Xmax: 13 mm • Dimensions: Overall diameter: 12.36", Cutout diameter: 10.71", Depth: 3.50".

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Product Details

BrandDayton Audio
ModelDSA315-PR
Part Number295-554
UPC848791005084
Unit of MeasureEach
Weight2.65

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.97

Thiele-Small Parameters

Resonant Frequency (Fs)17.5Hz
Mechanical Q (Qms)6.23
Compliance Equivalent Volume (Vas)6.74ft³
Mechanical Compliance of Suspension (Cms)0.58mm/N
Diaphragm Mass Inc. Airload (Mms)142.6g
Maximum Linear Excursion (Xmax)13mm
Surface Area of Cone (Sd)480cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Basket / Frame MaterialSteel

Mounting Information

Overall Outside Diameter12.36"
Baffle Cutout Diameter10.71"
Depth3.5"
# Mounting Holes5
