LM317 DC-DC Converter 5V 6V 9V 12V 24V Voltage Step Down Module Linear Regulator

Parts ExpressPart # 320-617
Drop your voltage from up to 36 VDC down to 5 VDC with this DC to DC buck converter. Perfect for projects that the main board needs high voltage, but the accessory or preamp boards need less voltage and require low current.

Key Features

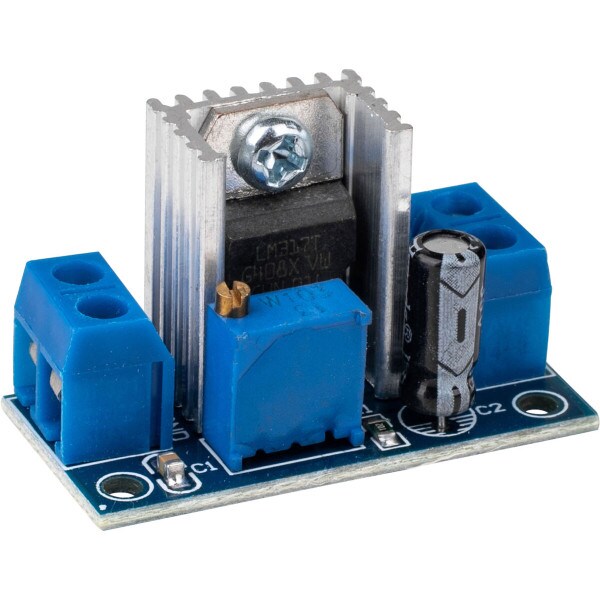

  • Built-in variable voltage LM317T regulator keeps voltage constant

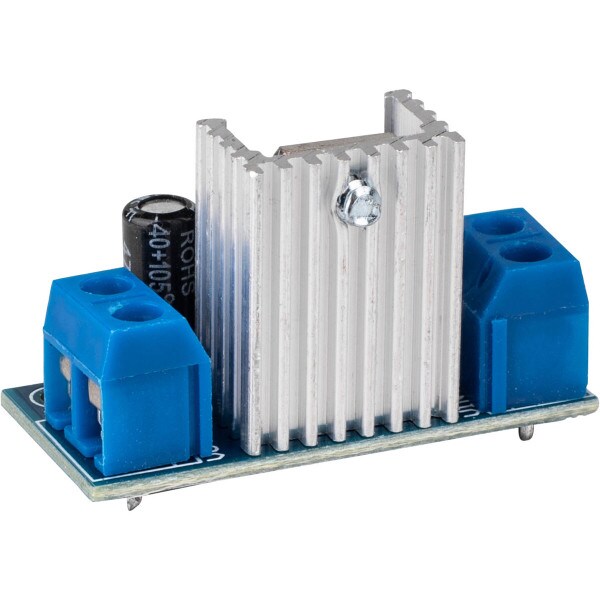

  • Heatsink helps keep the LM317T from overheating
  • Small 1.4" x 0.7" board fits in small projects
  • Eliminates extra power supplies due to DC voltage differences
Your Price: $3.59
MSRP: $5.99
Save $2.40 (40%)
Bulk Pricing
Quantity:Qty: 1-9 $3.59/ea
Quantity:Qty: 10+ $3.26/ea
In Stock
Get Notified When Available

We'll send you an email when LM317 DC-DC Converter 5V 6V 9V 12V 24V Voltage Step Down Module Linear Regulator is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LM317 DC-DC Converter 5V 6V 9V 12V 24V Voltage Step Down Module Linear Regulator

This DC to DC buck board enables you to add lower voltage preamp boards to high powered amp board projects requiring two to three times more voltage. Therefore it eliminates the need for two separate power supplies. This buck board converts up to 36 VDC down to 5 VDC. If you add a Bluetooth receiver or tone control board to your project that requires 24 VDC, the buck board takes the voltage down to 12 VDC which most preamp boards require. The LM317T maximum current capacity is 1.5A.

Note: Continue turning the potentiometer slowly clockwise until the voltage starts changing.

Specifications: • Input voltage: DC 4.2 to 40V • Output voltage: 1.2 to 37 VDC • Output current: 1.5A • Maximum output current: Maximum output current =3/(input voltage-output voltage) • Characteristics frequency: 100 MHz • Input: VIN positive input stage, GND negative input • Output: VOUT output positive level, GND output negative • Operating temperature: -67° to 140° F • Dimensions: 1.4" W x 0.7" L x 0.85" H.

Product Details

BrandParts Express
Part Number320-617
UPC848864057682
Unit of MeasureEach
Weight0.05

Product Specifications

Board TypeBattery & Power
