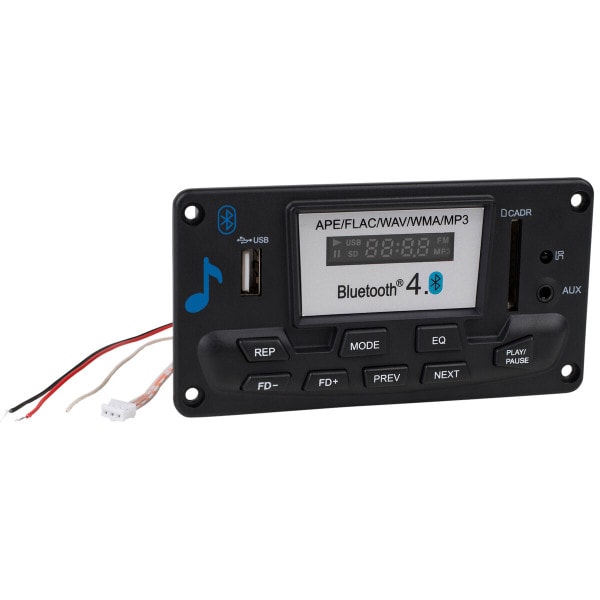

12 VDC Bluetooth 4.0 FM Radio MP3 WAV FLAC Audio Preamp Board with Function Cables and Remote

Parts Express

Part #320-348

Read 54 Reviews | 57 Questions, 282 Answers or

This preamp module adds Bluetooth 4.0, media player, and FM to an audio amp, or powered speaker DIY project. Its 12 VDC input voltage makes it perfect for car audio upgrades.

Key Features

9 - 12 VDC working voltage for flexibility
LED display identifies play mode and Bluetooth connection for convenience

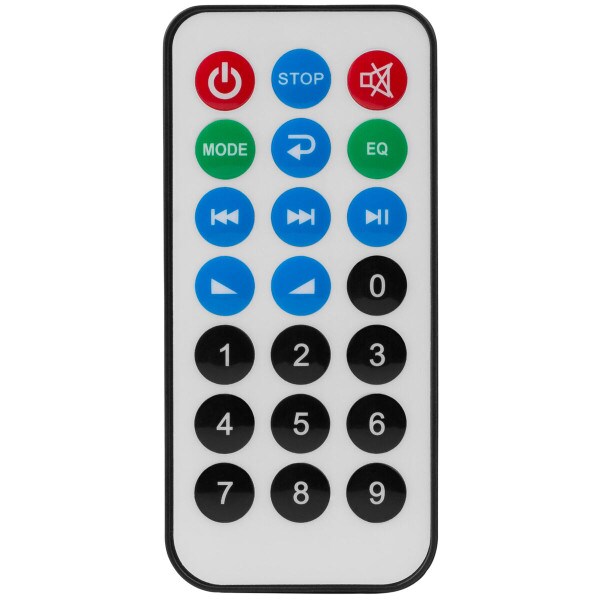

Includes IR remote for wireless control
Auto-shutoff when no signal is detected saves power
Preset equalizer settings enable sound customization
Includes power, audio output, and FM antenna cable for quick installation
Plays APE FLAC WAV WMA MP3 audio files

Frequently Bought Together

This Product: 12 VDC Bluetooth 4.0 FM Radio MP3 WAV FLAC Audio Preamp Board with Function Cables and Remote	$21.49
3.5mm Stereo Panel Mount Jack	$1.15
2.1 Hi-Fi Class D Audio Amplifier Board 2 x 15W + 30W 10-18 VDC	$15.98

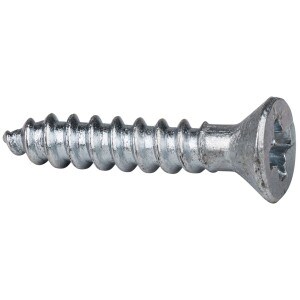

100 Pcs. #3 x 1/2" Flat Head Zinc Wood Screw	$12.49

Total Price: $51.11

This Product:12 VDC Bluetooth 4.0 FM Radio MP3 WAV FLAC Audio Preamp Board with Function Cables and Remote$21.49

3.5mm Stereo Panel Mount Jack$1.15

2.1 Hi-Fi Class D Audio Amplifier Board 2 x 15W + 30W 10-18 VDC$15.98

100 Pcs. #3 x 1/2" Flat Head Zinc Wood Screw$12.49

4 ItemsTotal Price: $51.11

Overview

12 VDC Bluetooth 4.0 FM Radio MP3 WAV FLAC Audio Preamp Board with Function Cables and Remote

Why only add Bluetooth to an audio DIY project when FM radio, media player, Aux in, and Bluetooth are all available in one preamp module with LED display? Hook up the audio output using the included cable to an amp board. The preamp includes a two-conductor cable that hooks up to a 9-12 VDC source and a wire that plugs in to the FM antenna socket. Cutout a 2.1" x 4" rectangle hole and mount the Bluetooth module into your project, and you now have an FM radio, media player, and Bluetooth available with faceplate controls. You must use the included remote to change FM stations by punching in the station's frequency.

Play APE FLAC WAV WMA MP3 audio files through this Bluetooth 4.0 preamp module with a USB/SD flash memory card and adjust the sound with preset EQ levels built into the module. Adjust the sound wirelessly with a Bluetooth EQ app on a smartphone, or use the included IR remote to control volume, EQ, play, FM station selection, and source functions. Add these options to an older car stereo that only has an Aux input for an external source. The possibilities for this all-in-one faceplate preamp Bluetooth module are only limited by your imagination.

Note: USB jack is not a charging port.

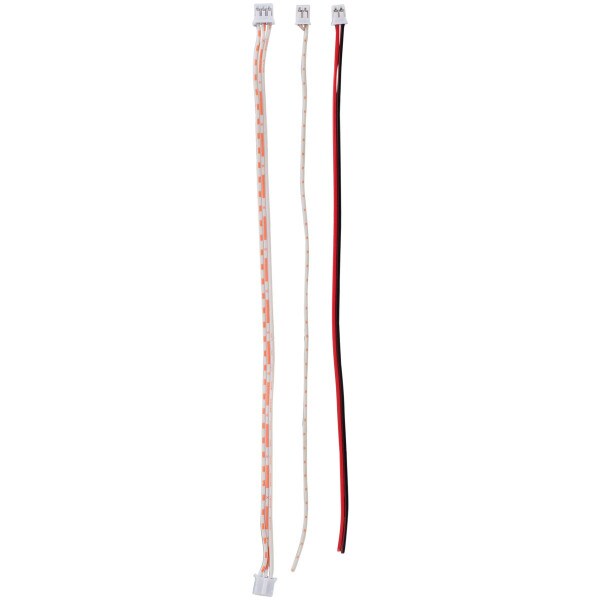

Specifications: • Outer dimensions: 4.7" W x 2.5" H x 1.14" D • Cutout dimensions: 4" W x 2.1" H • Input voltage: 9 - 12 VDC • Included cables: One 8" 3-conductor Aux output, one 8.5" FM antenna, and one 2-conductor 9" power.

Product Details
Brand	Parts Express
Part Number	320-348
UPC	848864033099
Unit of Measure	Each
Weight	0.25

Product Specifications
Board Type	Preamp
Special Features	Bluetooth-FM Tuner-Remote Control-SD Card Input-USB Connectivity

Quantity:Qty: 1-9	$21.49/ea
Quantity:Qty: 10+	$19.34/ea
