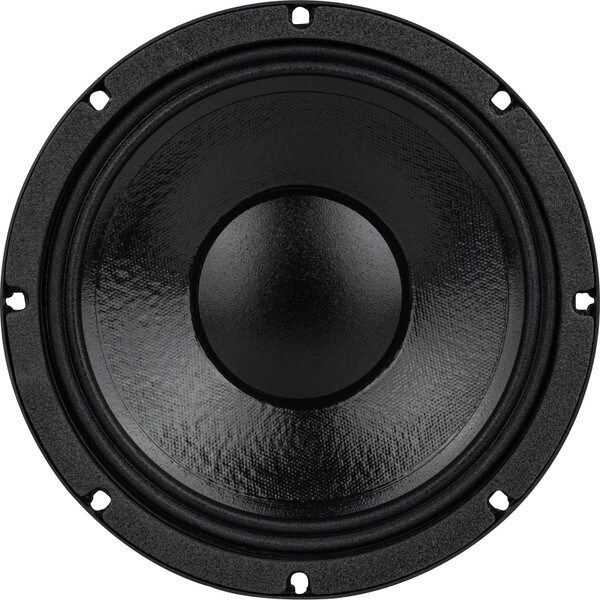

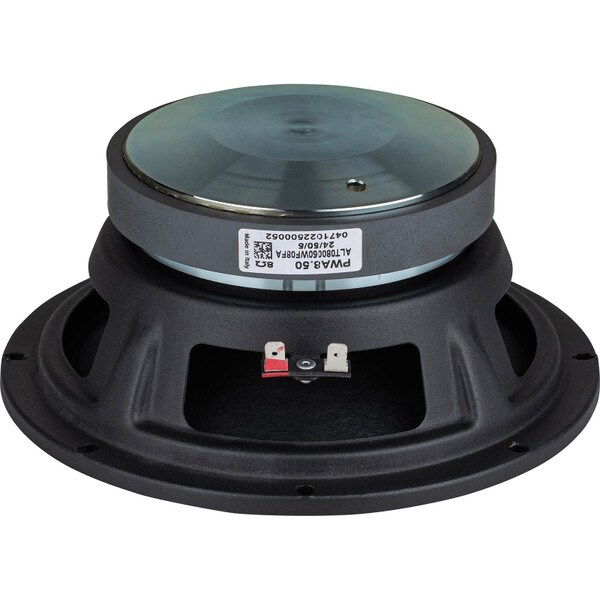

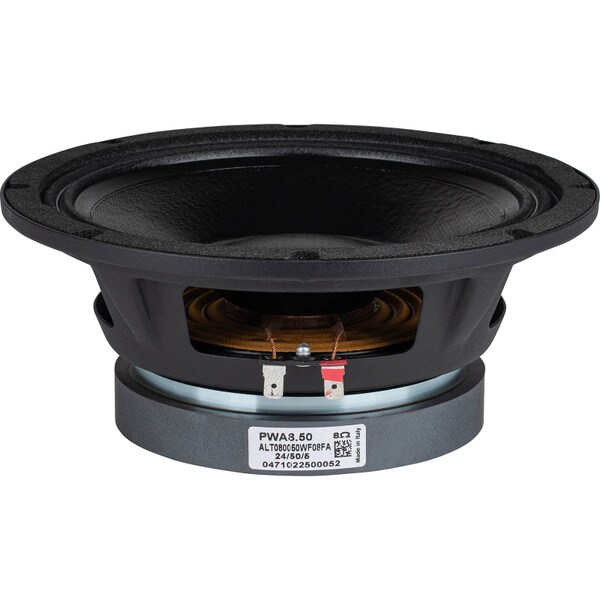

Ciare PWA8.50 8" Woofer 8 Ohm

CiarePart # 293-180
Model: PWA8.50
4 Questions, 5 Answers or

The PWA8.50 is a robust 8" woofer built to handle 250 watts of continuous program power and made from top shelf materials making it hold up to the elements.

Key Features

  • 250W continuous program power handling
  • 2" voice coil
  • High 95 dB sensitivity
Your Price: $104.00
+ FREE SHIPPING
MSRP: $138.67
Save $34.67 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Ciare PWA8.50 8" Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare PWA8.50 8" Woofer 8 Ohm

The PWA8.50 is a robust 8" woofer built to handle 250 watts of continuous program power and made from top shelf materials making it hold up to the elements. Boasting a water repelling treated paper cone, rubber surround and large ferrite motor structure, this woofer is designed with longevity and durability in mind. Recommended for vented enclosures.

Product Details

BrandCiare
ModelPWA8.50
Part Number293-180
UPC848864075525
Unit of MeasureEach
Weight7

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.83
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response70 to 2,500Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)74Hz
DC Resistance (Re)5Ω
Voice Coil Inductance (Le)0.82mH
Mechanical Q (Qms)5.5
Electromagnetic Q (Qes)0.41
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.42ft³
BL Product (BL)12.7T·m
Diaphragm Mass Inc. Airload (Mms)28g
Maximum Linear Excursion (Xmax)6.8mm
Surface Area of Cone (Sd)227cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter7.87"
Baffle Cutout Diameter7.32"
Depth3.78"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0971ft³
Sealed F3165Hz
Vented Volume0.274ft³
Vented F389.54Hz
