CLEARANCE Ciare PWA5.38 5" Woofer 8 Ohm

CiarePart # 293-176
Model: PWA5.38

The PWA5.38 is a robust 5" woofer built to handle 300 watts of continuous program power and made from top shelf materials making it hold up to the elements.

Key Features

  • 150W continuous program power handling
  • 1.5" voice coil
  • High 88.6 dB sensitivity
CLEARANCE $69.42
MSRP: $115.70
Save $46.28 (40%)
Bulk Pricing
4 In Stock
Get Notified When Available

We'll send you an email when Ciare PWA5.38 5" Woofer 8 Ohm is back in stock or available for preorder.

Order in the next 14 hr 59 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

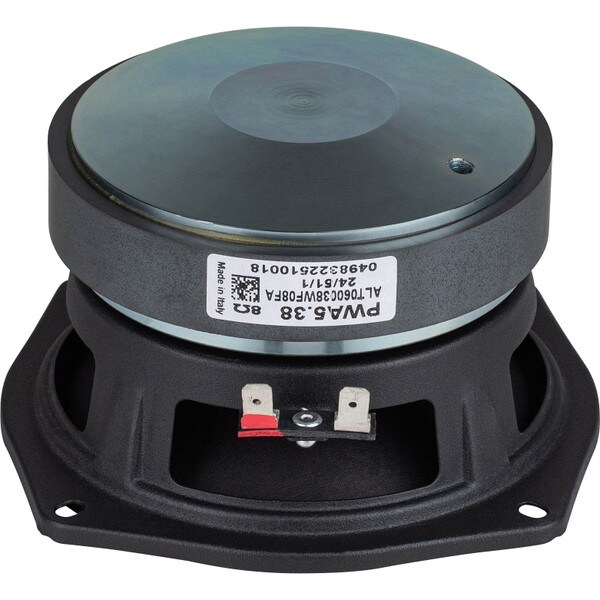

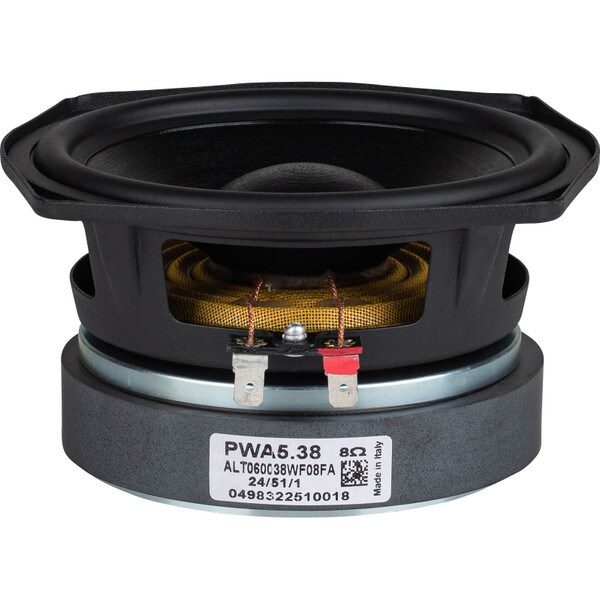

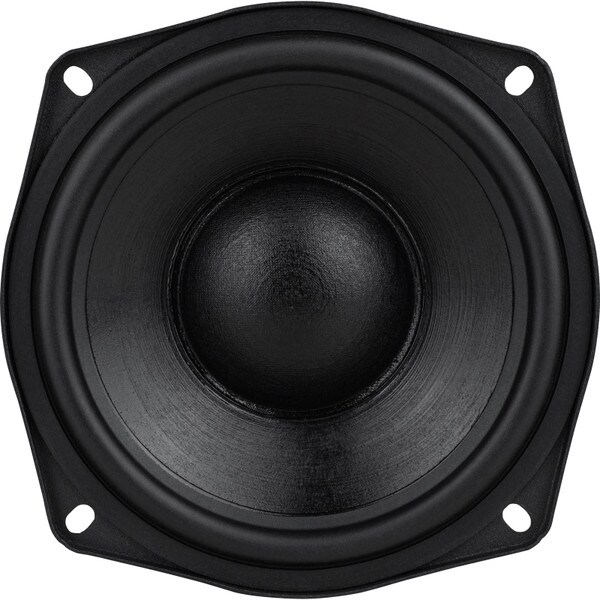

Ciare PWA5.38 5" Woofer 8 Ohm

The PWA5.38 is a robust 5" woofer built to handle 300 watts of continuous program power and made from top shelf materials making it hold up to the elements. Boasting a water repelling treated paper cone, rubber surround and large ferrite motor structure, this woofer is designed with longevity and durability in mind. Recommended for vented enclosures.

Product Details

BrandCiare
ModelPWA5.38
Part Number293-176
UPC848864075501
Unit of MeasureEach
Weight4.3

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter5.47
Power Handling (RMS)125 Watts
Power Handling (MAX)250 Watts
Impedance6.5Ω
Frequency Response70 to 6,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)73Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.37mH
Mechanical Q (Qms)4.7
Electromagnetic Q (Qes)0.41
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.18ft³
BL Product (BL)8.5T·m
Diaphragm Mass Inc. Airload (Mms)12g
Maximum Linear Excursion (Xmax)3.9mm
Surface Area of Cone (Sd)95cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.02"
Baffle Cutout Diameter4.76"
Depth3.11"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0404ft³
Sealed F3164.7Hz
Vented Volume0.113ft³
Vented F389.95Hz
