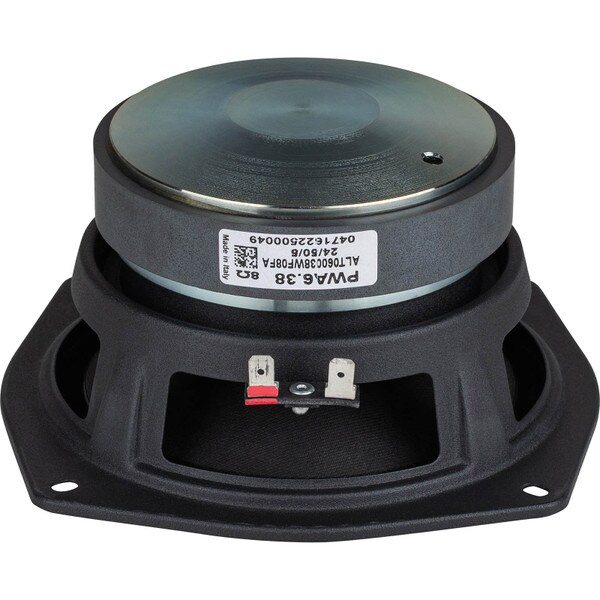

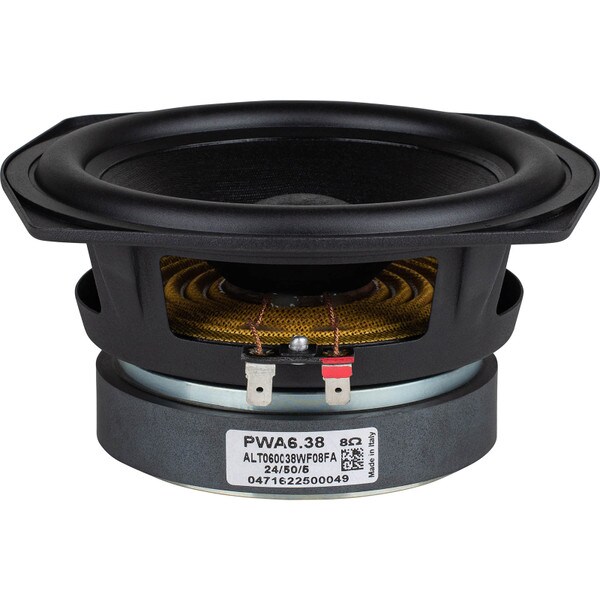

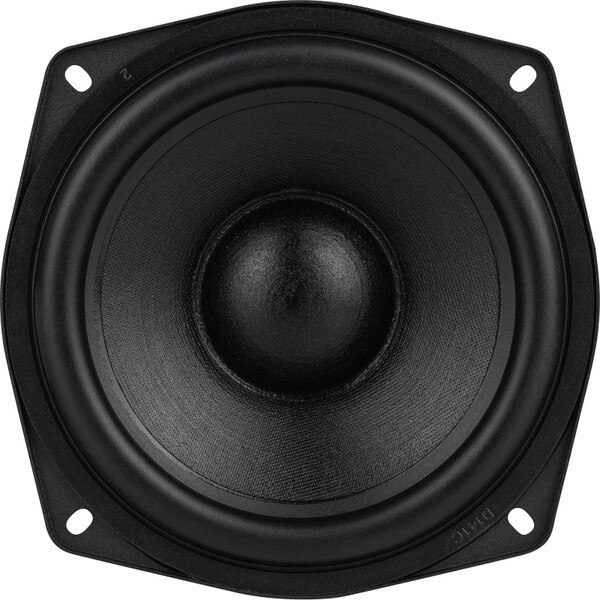

The PWA6.38 is a robust 6.5" woofer built to handle 300 watts of continuous program power and made from top shelf materials making it hold up to the elements.
The PWA6.38 is a robust 6.5" woofer built to handle 300 watts of continuous program power and made from top shelf materials making it hold up to the elements. Boasting a water repelling treated paper cone, rubber surround and large ferrite motor structure, this woofer is designed with longevity and durability in mind. Recommended for vented enclosures.
Product Details | |
|---|---|
| Brand | Ciare |
| Model | PWA6.38 |
| Part Number | 293-178 |
| UPC | 848864075518 |
| Unit of Measure | Each |
| Weight | 4.5 |
Product Specifications | |
|---|---|
| Nominal Diameter | 6-1/2" |
| Bolt Circle Diameter | 6.61 |
| Power Handling (RMS) | 150 Watts |
| Power Handling (MAX) | 300 Watts |
| Impedance | 8Ω |
| Frequency Response | 80 to 7,000Hz |
| Sensitivity | 90.5dB 2.83V/1m |
| Voice Coil Diameter | 1.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 80Hz |
| DC Resistance (Re) | 4.7Ω |
| Voice Coil Inductance (Le) | 0.4mH |
| Mechanical Q (Qms) | 4.9 |
| Electromagnetic Q (Qes) | 0.55 |
| Total Q (Qts) | 0.5 |
| Compliance Equivalent Volume (Vas) | 0.18ft³ |
| BL Product (BL) | 8.9T·m |
| Diaphragm Mass Inc. Airload (Mms) | 18g |
| Maximum Linear Excursion (Xmax) | 4mm |
| Surface Area of Cone (Sd) | 132.7cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper-Treated Paper |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Fiberglass |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 7.3" |
| Baffle Cutout Diameter | 5.67" |
| Depth | 3.43" |
| # Mounting Holes | 4 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.0842ft³ |
| Sealed F3 | 137.8Hz |
| Vented Volume | 0.273ft³ |
| Vented F3 | 65.97Hz |
