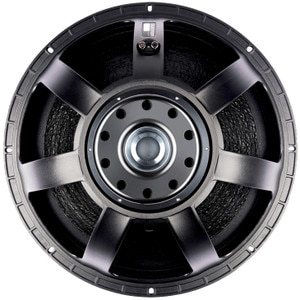

  • Celestion TSQ2460 Ten Squared Series 24" Neodymium Subwoofer 8 Ohm

NEW Celestion TSQ2460 Ten Squared Series 24" Neodymium Subwoofer 8 Ohm

CelestionPart # 294-2521
Model: TSQ2460

Using Celestion's cutting-edge “Ten Squared Technologies,” The TSQ2460 is unrivaled in terms of efficiency, longevity, durability, and quality. With an impressive 2,400W RMS power handling capacity and a lightweight neodymium magnet, this subwoofer is engineered for high-impact, professional-grade sound.

Key Features

  • Double-sided weatherproof cone for maximum durability
  • High efficiency cooling for improved performance, endurance and longevity
  • Lead out wires woven through suspension to reduce fatigue from regular use
  • Proprietary tech for winding the voice coil gives Celestion drivers greater longevity
  • Precision Tuned Venting (PTV) increases airflow to keep the driver significantly cooler than other leading brands
  • Dual suspension with a layer of Polysiloxane in-between reduces stiffness
  • Engineered and built in the United Kingdom
NEW $1,499.00
+ FREE SHIPPING
MSRP: $2,248.50
Save $749.50 (33%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Celestion TSQ2460 Ten Squared Series 24" Neodymium Subwoofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion TSQ2460 Ten Squared Series 24" Neodymium Subwoofer 8 Ohm

Celestion TSQ2460 24" Neodymium Subwoofer

Ten Key Features that add up to a new standard in LF driver performance

The Ten² development initiative meticulously reexamined every aspect of driver design, implementing and validating a series of progressive refinements. These cumulative enhancements work together to set a new benchmark for performance and durability in professional low-frequency loudspeakers.

Precision Tuned Venting

Precision Tuned Venting (PTV) harnesses the cooling effects of constant airflow in a set of precisely dimensioned vents, enabling cooling around the coil and magnet assembly to be significantly improved – by up to 80C compared to conventional designs.

Reduced Power Compression

Highly efficient PTV cooling delivers additional reduction in power compression (loss of driver efficiency), as well as lower thermal stress on the voice coil, leading to improved performance, endurance and longevity.

Polysiloxane Laminated Dual Suspension

Polysiloxane (a silicone polymer) is sandwiched between two resin- impregnated layers which enables the laminated suspension to be worked much harder without losing stiffness, giving better coil control, making DC shift less likely and increasing speaker longevity.

Reconfigured Magnet Assembly For Greater Excursion

A re-configured magnet assembly allows much greater cone excursion before damage occurs (Xmech) and best-in-class Xprotection (the distance the coil and cone move, measured to the point where both Bl and Cms have both reduced to 30% of their resting value).

Convergent Motor Strength & Mechanical Compliance

Electrical motor strength Bl and mechanical compliance Cms reach their defined Xprotection limit at practically the same point: achieving a low distortion performance even during high excursion.

Custom Voice Coil Structure

Celestion winds its own voice coils using proprietary adhesion and voice coil structure solutions to maximize product lifespan and performance longevity.

Enhanced Moisture Protection

A water-based solvent is applied to one or both sides of the loudspeaker’s cone (depending on speaker model and desired application). This significantly improves the driver’s ability to resist direct exposure to water and higher levels of humidity, and also improves product durability.

Laser-Cauterized Lead Out Wire Holes

Weaving lead out wires into the suspension through laser cut holes reduces ‘whipping’ and lessens the fatigue on wires and joints caused by high power and cone excursion.

Multi-layer Inside/Outside Coil Windings

Celestion’s voice coils are wound inside/outside in multiple layers, to maximize cooling potential with the greatest amount of surface area exposed to free air. This further contributes to the reduction of both power compression and thermal stress.

Precision built in the UK

TSQ drivers are built on the newly-commissioned, robotically-assisted production line at Celestion’s UK-based loudspeaker research and manufacturing facility, and rigorously tested in line with an exacting list of performance criteria.

BUILD THIS: 24" Bass Reflex Enclosure Featuring the TSQ2460

Celestion have created a slot-ported reflex enclosure specifically for the TSQ2460, their 24" neodymium magnet, cast aluminum chassis low-frequency driver.

A ported or reflex enclosure is a straightforward box design with one or more openings on the front baffle. For most PA applications, this approach delivers a clean, accurate loudspeaker cabinet that maximizes the performance of the bass driver. Adding a port extends the driver's low-frequency capability and can slightly increase both power handling and overall efficiency in the lower range.

The TSQ2460 is the flagship 24" model in the Ten Squared (Ten²) pro audio series of low-frequency drivers. These next-generation models feature Precision Tuned Venting for highly efficient cooling across the operating band, allowing the voice coil to run up to 80°C/176°F cooler than many other leading drivers in its category.

24" Bass Reflex Enclosure Build Plan
Reflex Enclosure Panel Drawings

Product Details

BrandCelestion
ModelTSQ2460
Part Number294-2521
UPC739394669900
Unit of MeasureEach
Weight60.5

Product Specifications

Nominal Diameter24"
Power Handling (RMS)2400 Watts
Power Handling (MAX)4800 Watts
Impedance8Ω
Frequency Response20 to 200Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter6"

Thiele-Small Parameters

Resonant Frequency (Fs)29Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)2.5mH
Mechanical Q (Qms)10.3
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.3
Compliance Equivalent Volume (Vas)14.26ft³
Mechanical Compliance of Suspension (Cms)0.057mm/N
BL Product (BL)40.5T·m
Diaphragm Mass Inc. Airload (Mms)530g
Maximum Linear Excursion (Xmax)18.75mm
Surface Area of Cone (Sd)2239cm²

Materials of Construction

Cone MaterialFiberglass
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter24.7"
Baffle Cutout Diameter22.5"
Depth11"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.38ft³
Sealed F388.71Hz
Vented Volume4.51ft³
Vented F347.72Hz
