NEW Beyma 8MI100 MI100 Series 8" Midrange 8 Ohm

BeymaPart # 253-038
Model: 8MI100

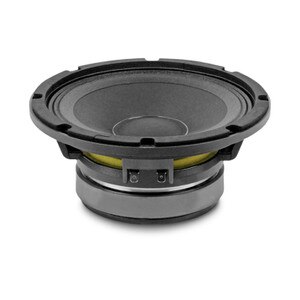

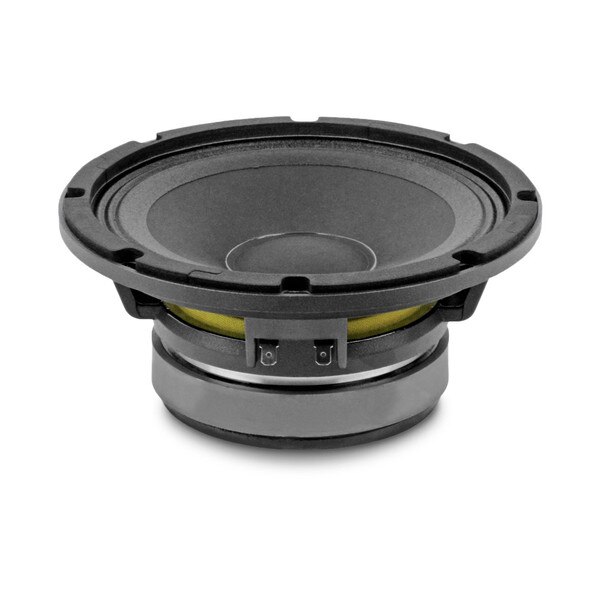

The Beyma 8MI100 is an 8″ mid-frequency transducer designed for clean, punchy mids in compact PA and monitoring systems. Its robust coil and extended bandwidth make it a top choice for precise midrange performance.

Key Features

  • 2″ aluminum voice coil on polyimide fiberglass former for thermal durability
  • 100–7 000 Hz frequency range for versatile midband coverage
  • 96 dB sensitivity yields high SPL efficiency
  • Die‑cast frame and low harmonic distortion design
NEW $107.25
+ FREE SHIPPING
MSRP: $143.00
Save $35.75 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Beyma 8MI100 MI100 Series 8" Midrange 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 8MI100 MI100 Series 8" Midrange 8 Ohm

Beyma 8MI100 MI100 Series 8" Midrange 8 Ohm

The 8MI100 delivers articulate midrange performance thanks to its 250 W AES power capacity and efficient 96 dB sensitivity. A 2″ aluminum voice coil wound on a heat-resistant polyimide fiberglass former helps keep thermal compression low during extended use. The integrated shorting cap ensures a smoother frequency response and reduced distortion, while its wide 100–7 000 Hz bandwidth covers vocals and instruments with clarity. With a 3 mm linear excursion and 66 cm³ displacement volume, it maintains precision under demanding audio conditions. The rugged die-cast frame supports reliable performance, making the 8MI100 a dependable mid-frequency driver for high-quality PA and monitor applications.

Solid Line: On Axis
Dotted Line: 45° Off Axis

Product Details

BrandBeyma
Model8MI100
Part Number253-038
UPC8435469042094
Unit of MeasureEach
Weight7.45

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.8
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response100 to 7000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)90Hz
DC Resistance (Re)6Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)7.5
Electromagnetic Q (Qes)0.48
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)0.42ft³
Mechanical Compliance of Suspension (Cms)175mm/N
BL Product (BL)11.5T·m
Diaphragm Mass Inc. Airload (Mms)0.019g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)0.022cm²

Materials of Construction

Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass

Mounting Information

Overall Outside Diameter8.3"
Baffle Cutout Diameter7.1"
Depth3.7"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.152ft³
Sealed F3169.8Hz
Vented Volume0.486ft³
Vented F384.33Hz
