NEW Beyma 6MI100 MI100 Series 6.5" Midrange 8 Ohm

BeymaPart # 253-037
Model: 6MI100

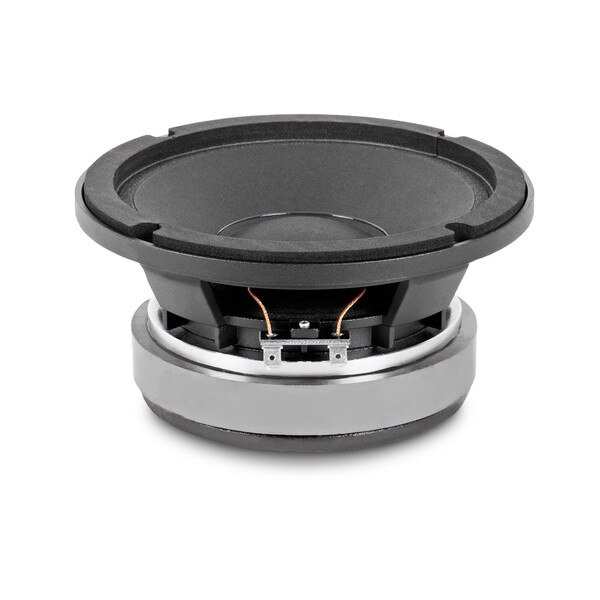

The Beyma 6MI100 is a 6.5″ mid-frequency transducer engineered for high-performance midrange reproduction in compact PA and monitor cabinets. With a sturdy die-cast aluminum basket and efficient cooling, it delivers clean, articulate mids under demanding conditions.

Key Features

  • 2″ aluminum voice coil for thermal resilience and reliable performance
  • Shorting cap extends frequency response and reduces harmonic distortion
  • Frequency range of 100–8000 Hz covers detaled mid and upper-mid frequencies
  • Die-cast aluminum basket for mechanical stability and low resonance
  • 94 dB sensitivity ensures effective SPL with moderate amplification
Similar items that may interest you:
Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer
Price: $51.98Part # 295-528
B&C 6MD38 6-1/2" Midrange Speaker
Price: $118.38Part # 294-651
See all items in Midrange / Midbass Drivers & Full-Range Speakers
NEW $93.00
MSRP: $124.00
Save $31.00 (25%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Beyma 6MI100 MI100 Series 6.5" Midrange 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Beyma 6MI100 MI100 Series 6.5" Midrange 8 Ohm

Beyma 6MI100 MI100 Series 6.5" Midrange 8 Ohm

The 6MI100 blends high 250 W AES power capacity with strong 94 dB sensitivity to produce clear midrange sound without requiring excessive amp power. Its 2″ aluminum voice coil is optimized for heat management, while the shorting cap ensures an extended and linear frequency response with minimal distortion. Designed to perform across a wide 100–8 000 Hz band, it captures both vocal presence and instrument detail accurately. The rigid die-cast aluminum basket minimizes resonance, and with a precise Xmax of 3 mm (Vd of 42 cm³), the driver maintains accuracy under dynamic demands. Its compact size and efficient design make the 6MI100 an excellent choice for professional mid-frequency applications in space-constrained enclosures.

Product Details

BrandBeyma
Model6MI100
Part Number253-037
UPC8435469041608
Unit of MeasureEach
Weight6.75

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.2
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response100 to 8000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)128Hz
DC Resistance (Re)6Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)8.6
Electromagnetic Q (Qes)0.55
Total Q (Qts)0.51
Compliance Equivalent Volume (Vas)0.109ft³
Mechanical Compliance of Suspension (Cms)119mm/N
BL Product (BL)10.8T·m
Diaphragm Mass Inc. Airload (Mms)0.014g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)0.014cm²

Materials of Construction

Voice Coil Wire MaterialAluminum
Basket / Frame MaterialCast Aluminum

Mounting Information

Overall Outside Diameter6.9"
Baffle Cutout Diameter5.8"
Depth3.3"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.0587ft³
Sealed F3210.9Hz
Vented Volume0.181ft³
Vented F3101.2Hz
